• 11.5" day/night rearview mirror

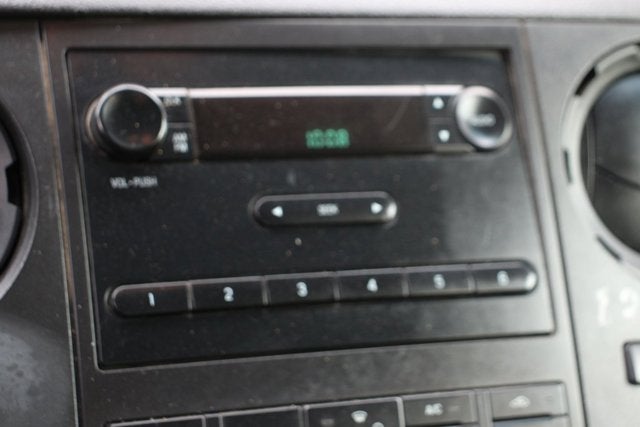

• AM/FM stereo -inc: digital clock, (2) speakers
• Auxiliary pwr point
• Black vinyl full floor covering
• Black vinyl steering wheel

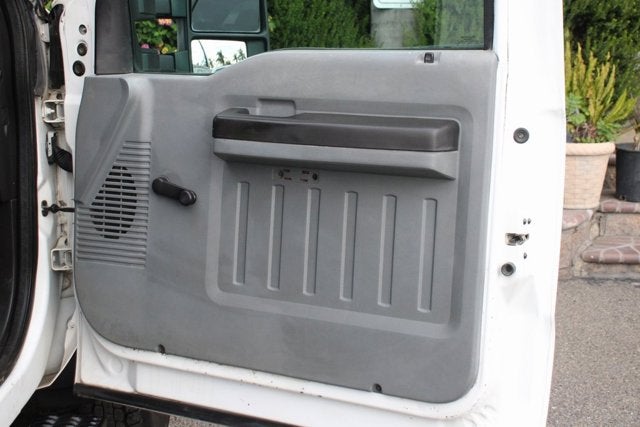

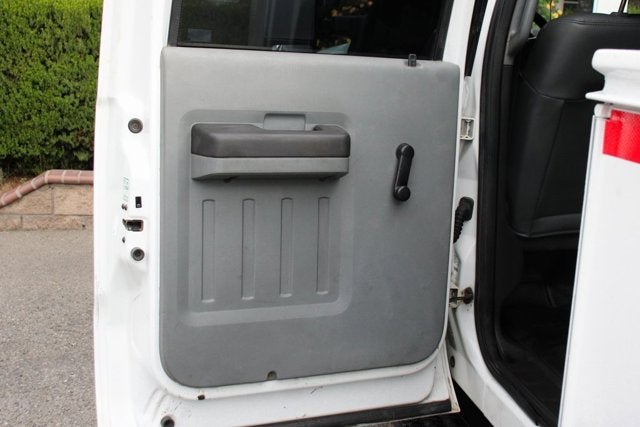

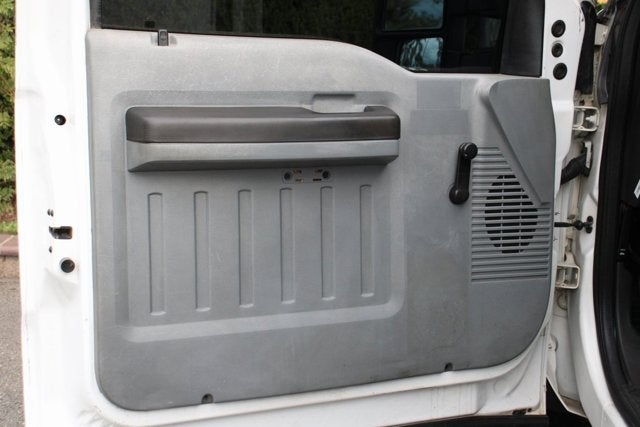

• Color-coordinated door trim panel -inc: armrest, grab handle, reflector

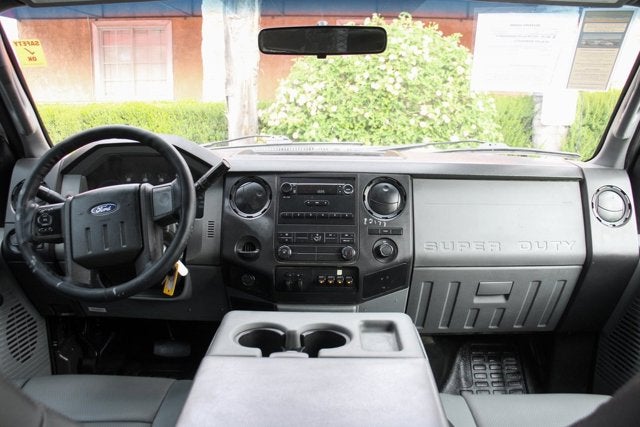

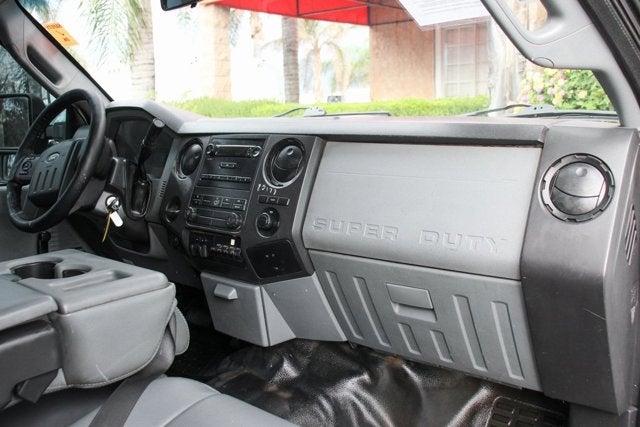

• Color-coordinated instrument panel -inc: glove box, (4) air registers w/positive shutoff, pwr point & (4) upfitter switches
• Color-coordinated molded cloth headliner
• Color-coordinated scuff plates
• Color-coordinated vinyl sun visors -inc: LH pocket, RH insert
• Dash-top tray
• Door activated dome lamp w/delay, I/P switch operation
• Dual color-coordinated coat hooks
• Dual front grab handles
• Front/rear dual map lights
• Front/rear passenger roof ride handles

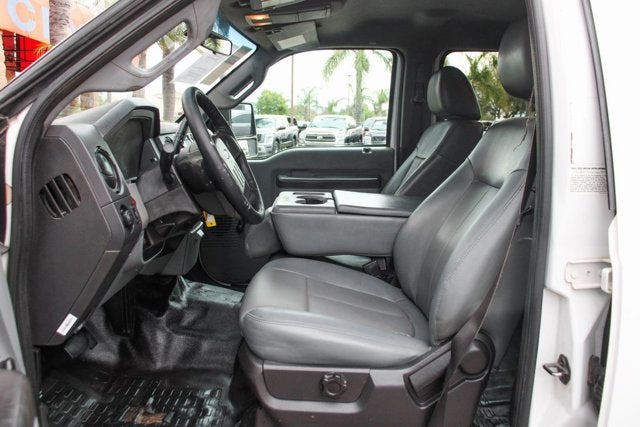

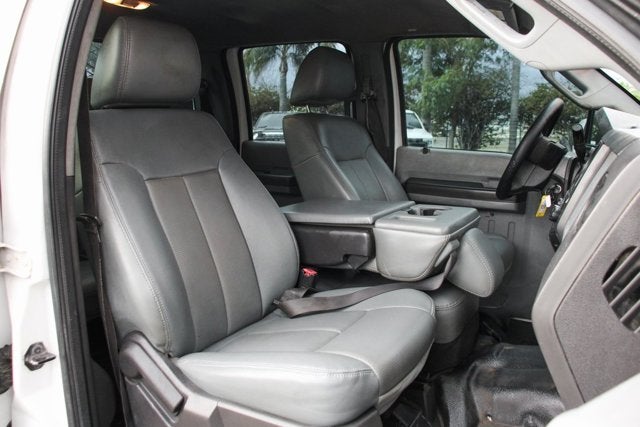

• HD vinyl 40/20/40 split bench seat -inc: center armrest, cup holder, storage
• I/P mounted dual cup holders
• Inside hood release

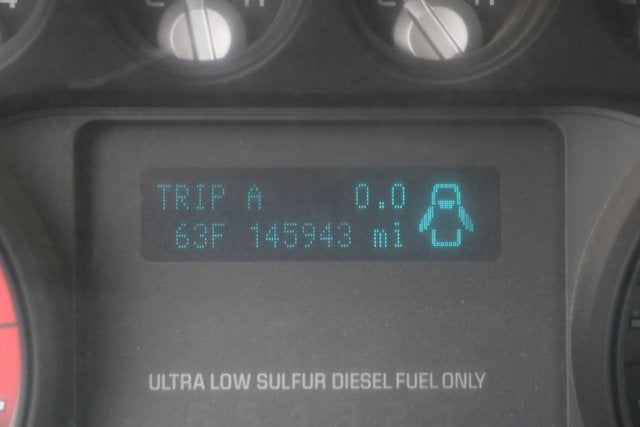

• Instrumentation -inc: multifunction switch message center w/ice blue lighting
• Manual Air Conditioning
• Manual driver lumbar support
• Oil minder system

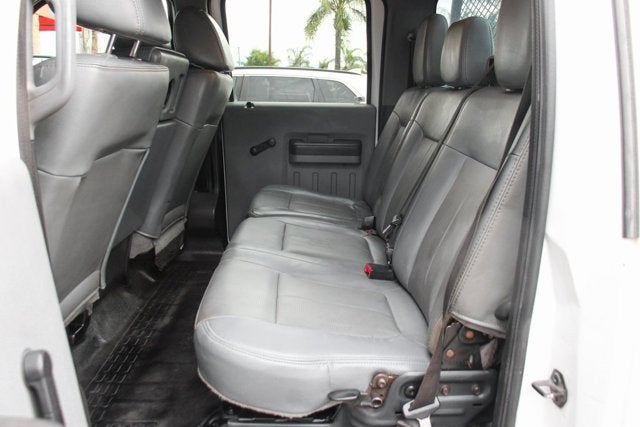

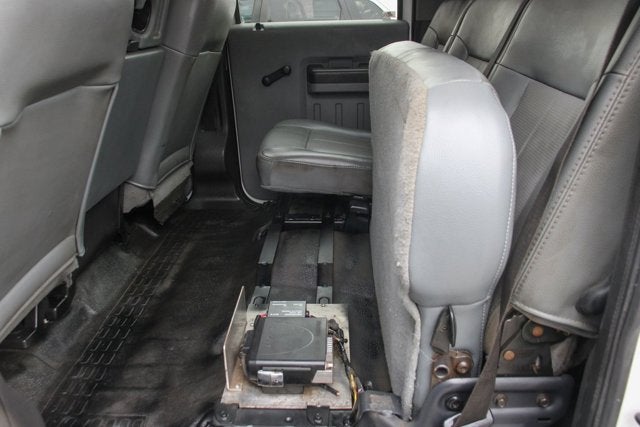

• Rear 60/40 flip-up/fold-down split bench seat -inc: outboard head restraints, center head restraints
• Secondary glove box

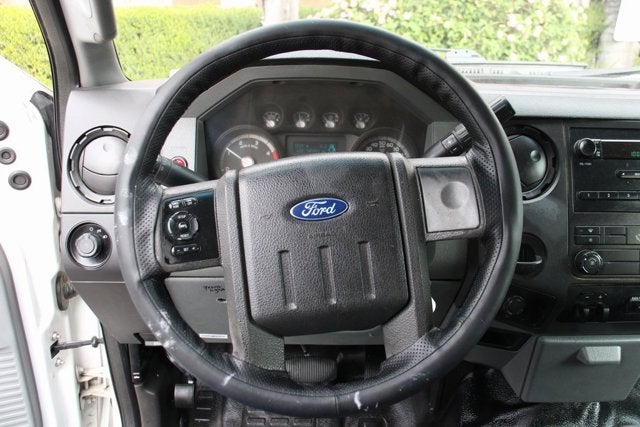

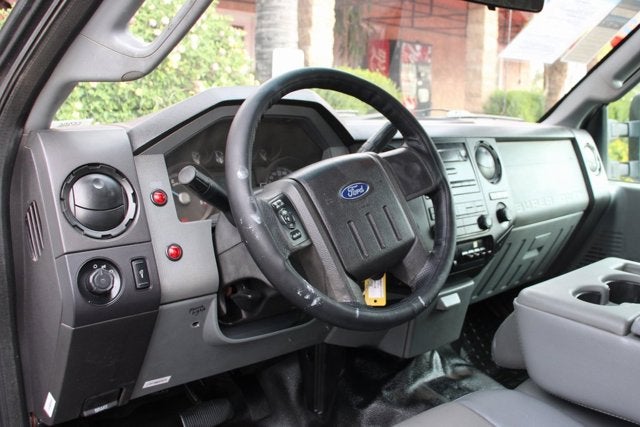

• Tilt & telescoping steering wheel/column

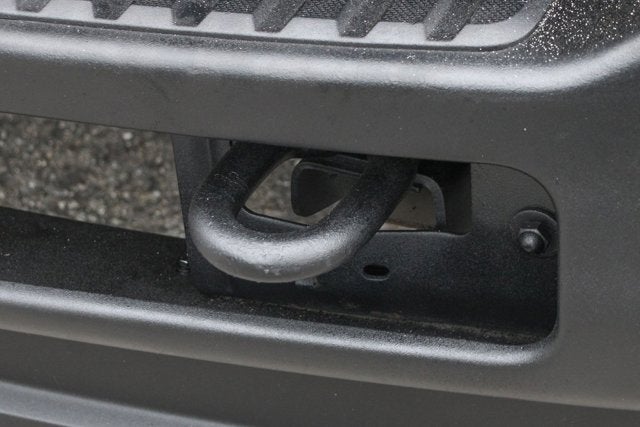

• (2) front tow hooks
• (40) gallon aft-axle fuel tank
• 155-amp HD alternator
• 7-wire trailer tow harness w/relays, blunt cut & labeled
• 78 amp/hr 750 CCA battery
• Dual Rear Wheels
• Front/rear stabilizer bars
• HD gas shock absorbers
• Mono-beam front axle w/coil spring suspension
• Pwr 4-wheel disc brakes w/hydro boost
• Pwr steering w/steering damper
• Rear auxiliary springs
• Rear wheel drive
• Stationary elevated idle control (SEIC)

• Anti-lock braking system (ABS)
• Child tethers on all passenger seats
• Color-coordinated 3-point safety belts w/front outboard height adjustment
• Driver/front passenger frontal, side & curtain airbags
• Dual-note electric horn
• SOS post crash alert system

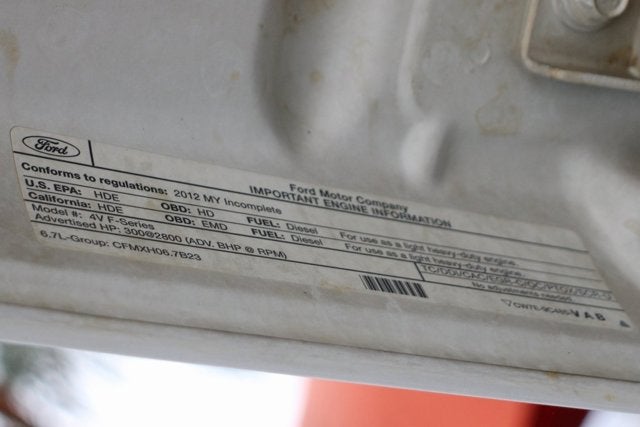

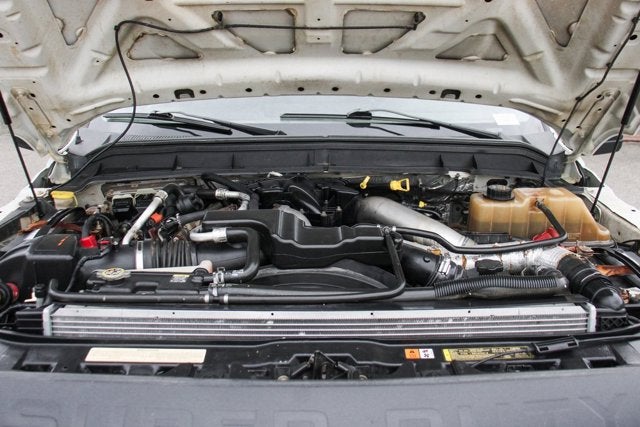

6.7L OHV 32-VALVE V8 POWER STROKE DIESEL ENGINE

• 200-amp HD alternator
• dual 78 amp/hr 750 CCA batteries
• Intelligent Oil Life Minder
• diesel exhaust fuel tank
• split-shaft calibration compatibility

• GVWR: 19
• 500 lb Payload Plus Upgrade Package
• Order Code 660A
• 2 Speakers
• AM/FM radio
• Air Conditioning
• Power steering
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Dual front side impact airbags
• Front anti-roll bar
• Overhead airbag
• Rear anti-roll bar

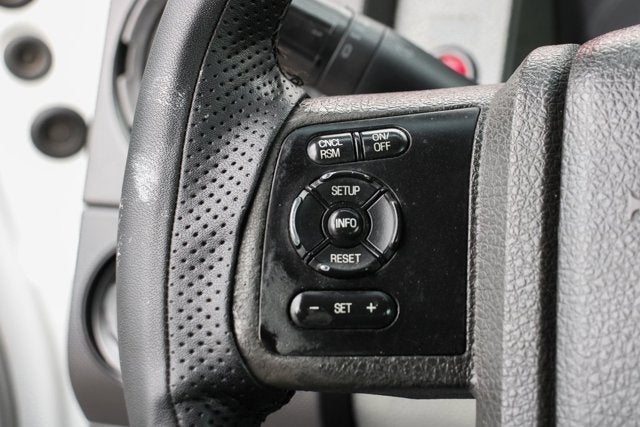

• Cruise Control
• Dual rear wheels
• Engine Block Heater
• Engine Idle Shutdown
• Operator Commanded Regeneration
• 6-Ton Hydraulic Jack
• Transmission Power Take-Off Provision
• Front reading lights
• Outside temperature display
• Overhead console
• Passenger vanity mirror
• Rear reading lights
• Tachometer
• Telescoping steering wheel
• Tilt steering wheel

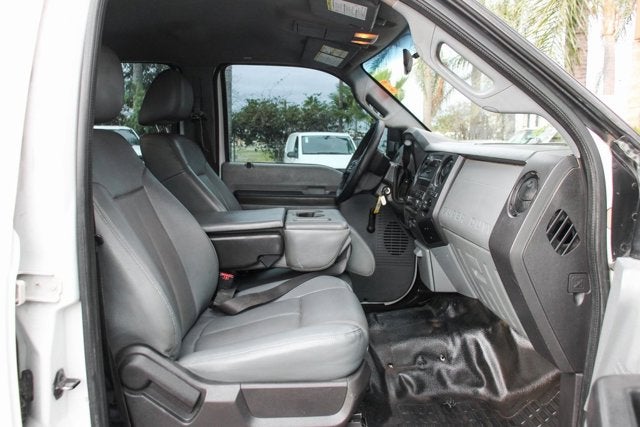

• HD Vinyl 40/20/40 Split Bench Seat
• Split folding rear seat
• Front Center Armrest w/Storage
• Trailer Brake Controller

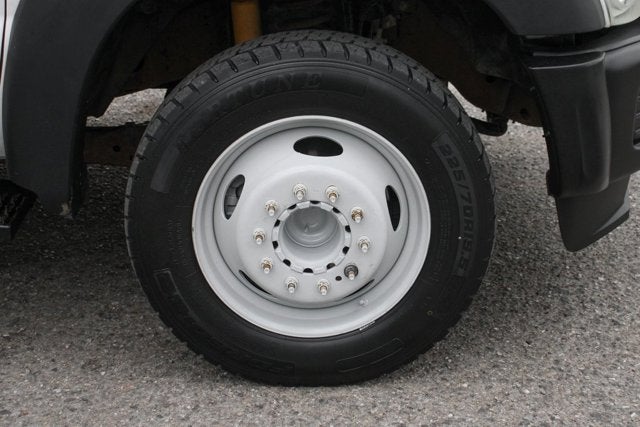

• 19.5 Argent Painted Steel Wheels
• Variably intermittent wipers
• **ONE OWNER CARFAX**

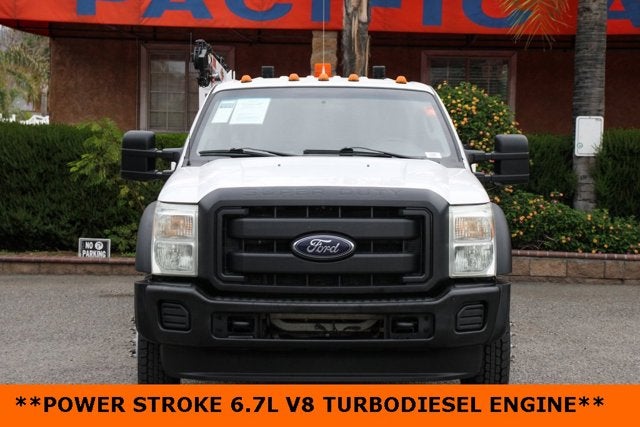

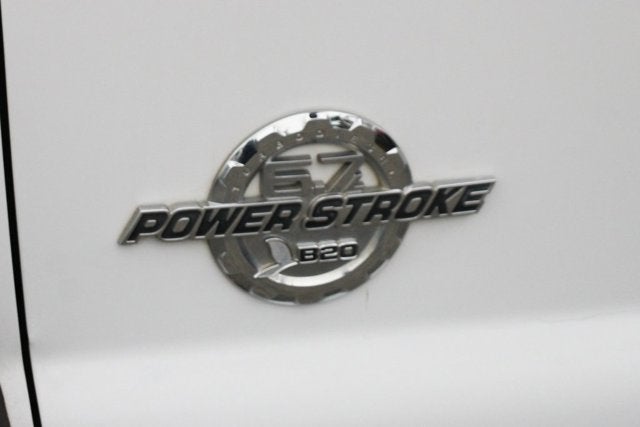

• **POWER STROKE 6.7L V8 TURBO-DIESEL**
• **RWD**
• **CREW CAB**
• **LONG BED**
• **DUALLY**

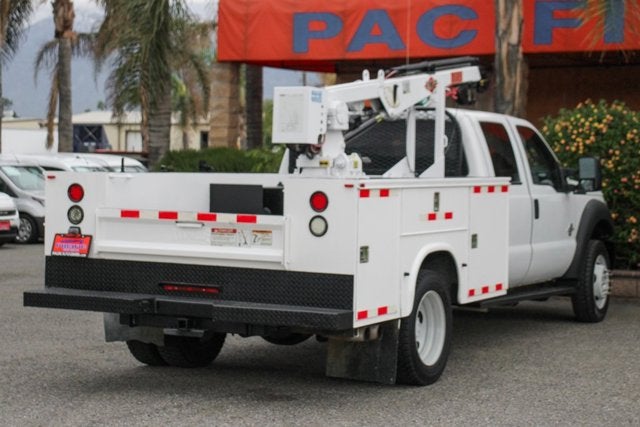

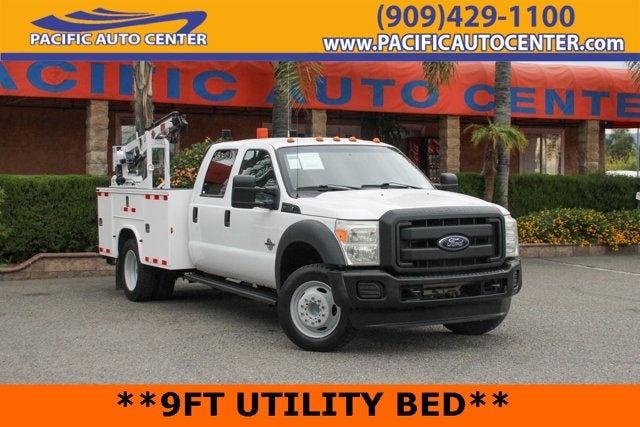

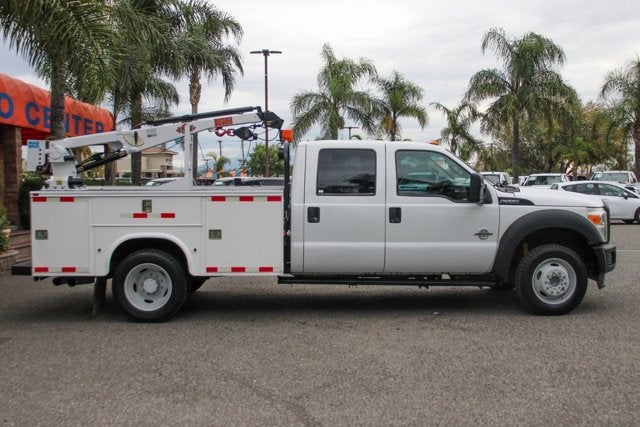

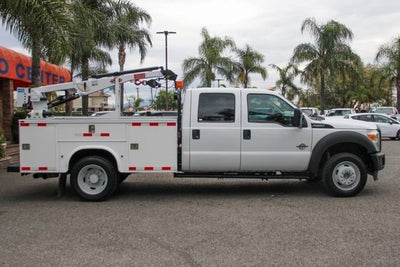

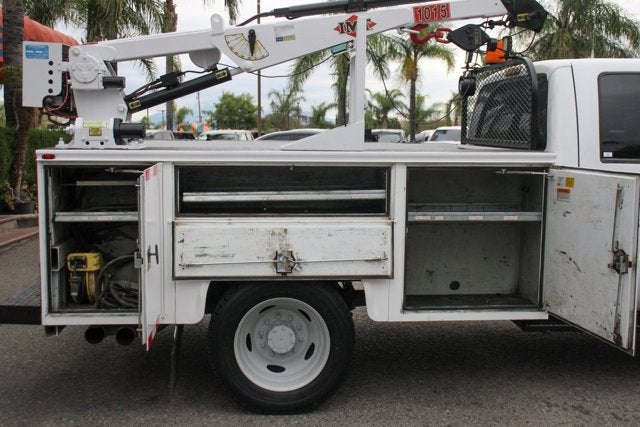

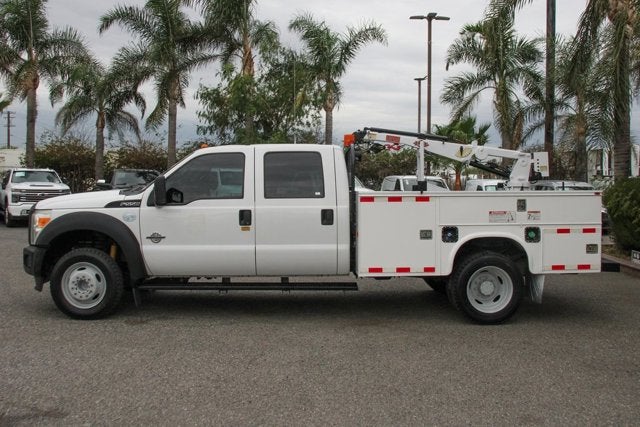

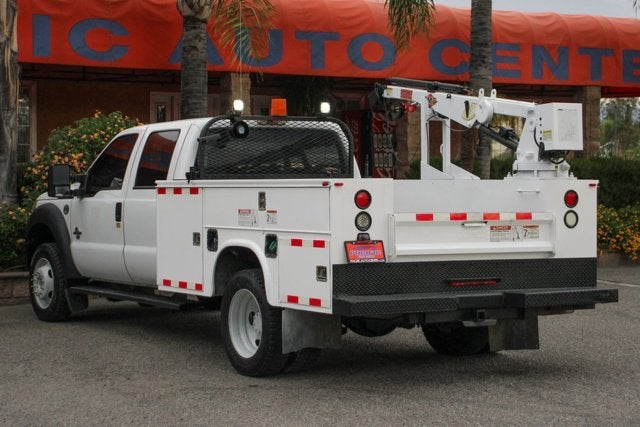

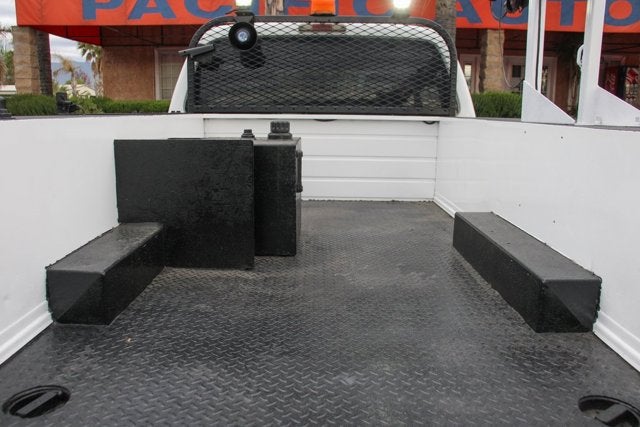

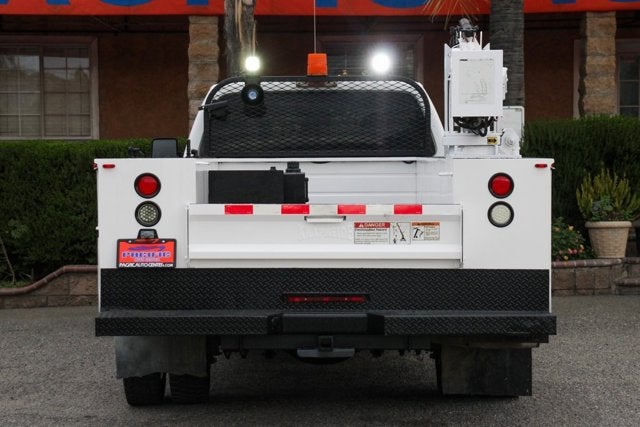

• **UTILITY/SERVICE TRUCK**
• **TRAILER BRAKE CONTROL**
• **SPRAY-IN BEDLINER**

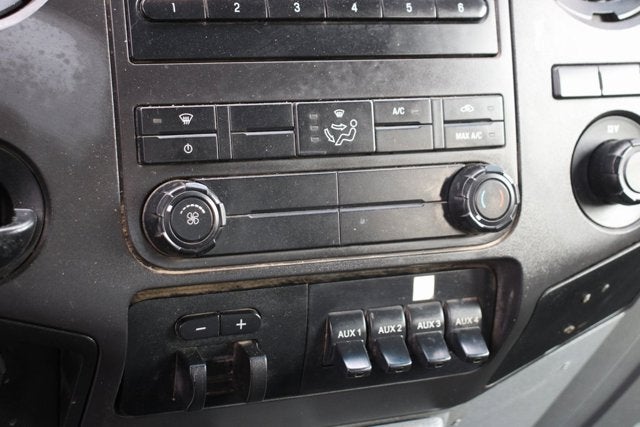

• **UPFITTER SWITCHES**

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): HD 200
• Maximum Alternator Capacity (amps): 157
• Maximum Alternator Watts: - TBD -
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 27.8
• Total Cooling System Capacity (qts): 27.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 6000
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Rear (lbs): 13660
• Curb Weight - Front (lbs): 4607
• Curb Weight - Front (lbs): 3959
• Curb Weight - Rear (lbs): 3343
• Curb Weight - Rear (lbs): 3186
• Gross Vehicle Weight Rating Cap (lbs): 18000
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 6000
• Spring Capacity - Front (lbs): 5200
• Spring Capacity - Rear (lbs): 13660
• Axle Type - Front: Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 13660
• Axle Ratio (:1) - Rear: 4.88
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.26
• Stabilizer Bar Diameter - Rear (in): 1.06
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.5 x 0.5
• Rear Brake Rotor Diam x Thickness (in): 15.4 x 0.5
• Tires
• Front Tire Order Code: TFB
• Rear Tire Order Code: TFB

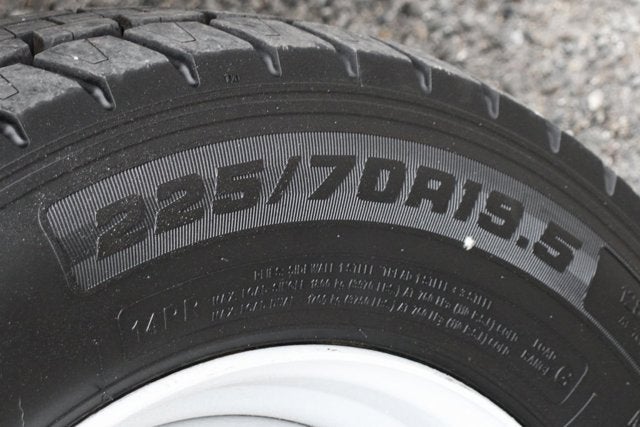

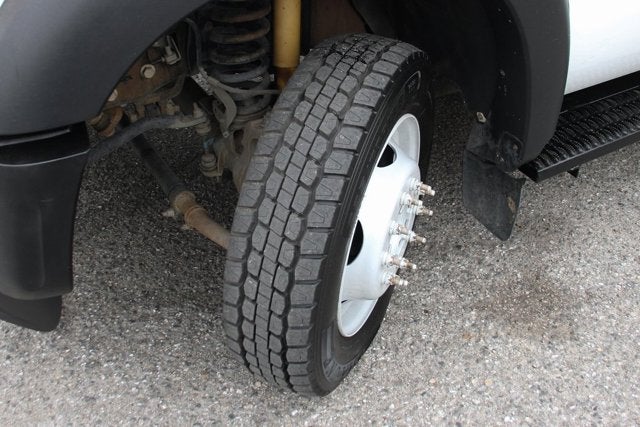

• Front Tire Size: 225/70R19.5G
• Rear Tire Size: 225/70R19.5G
• Front Tire Capacity (lbs): 3750
• Rear Tire Capacity (lbs): 3970
• Revolutions/Mile @ 45 mph - Front: 653
• Revolutions/Mile @ 45 mph - Rear: 653
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 19.5 x 6.0
• Rear Wheel Size (in): 19.5 x 6.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.3
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.5
• Turning Diameter - Wall to Wall (ft): 53.3
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40.0
• Fuel Tank Location: Aft-Axle
• Exterior Dimensions
• Wheelbase (in): 176.2
• Length, Overall w/o rear bumper (in): 261.9
• Width, Max w/o mirrors (in): 93.9
• Height, Overall (in): 80.8
• Overhang, Front (in): 38.1
• Overhang, Rear w/o bumper (in): 47.6
• Front Bumper to Back of Cab (in): 154.3
• Cab to Axle (in): 60.0
• Cab to End of Frame (in): 107.6
• Ground to Top of Frame (in): 33.3
• Frame Width, Rear (in): 34.2
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.4
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.6
• Second Head Room (in): 40.8
• Second Leg Room (in): 42.1
• Second Shoulder Room (in): 68.0
• Second Hip Room (in): 67.6
• Summary

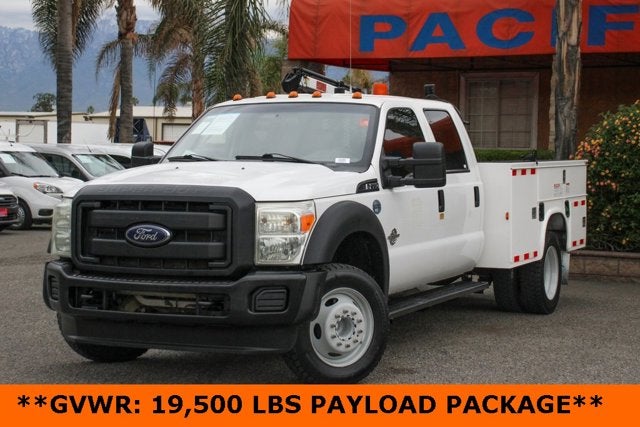

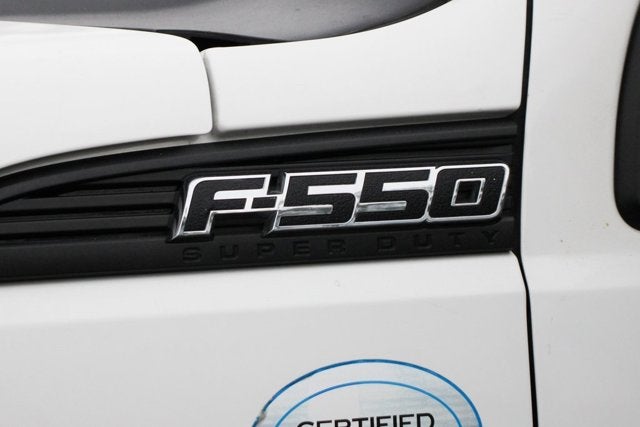

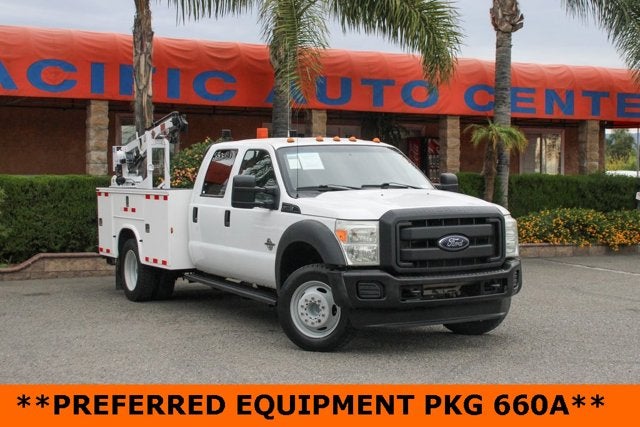

• Vehicle Name: Ford Super Duty F-550 DRW
• Body Style: Crew Cab Chassis Cab
• Body Code: 176" WB
