• 6-speaker audio system
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Audio system, 4.2" diagonal color display AM/FM stereo with USB port and auxiliary jack (Requires (AE7) front 40/20/40 split-bench seat. Not available with (UE1) OnStar or (U2K) SiriusXM Radio.)

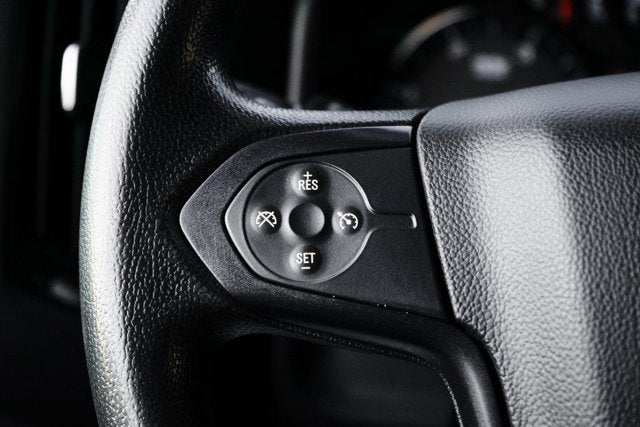

• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center, 3.5-inch diagonal monochromatic display, provides warning messages and basic vehicle information
• Floor covering, Graphite-colored rubberized-vinyl
• Interior trim, Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
• Mirror, inside rearview manual day/night
• Seat Belt, Black
• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Seats, front 40/20/40 split-bench, 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar.
• SiriusXM, delete
• Speedometer, miles/kilometers
• Steering column, manual Tilt-Wheel

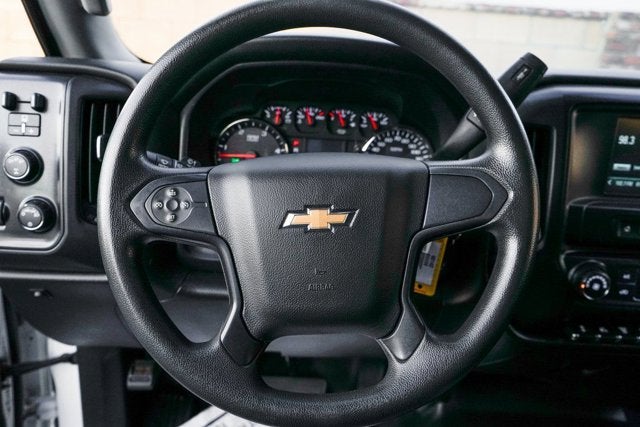

• Steering wheel, urethane
• Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
• Visors, driver and front passenger, vinyl
• Windows, power with driver express up and down and express down on all other windows

• 4500 HD Series (Included and only available with (C7Y) 14,001 lb. GVWR, (C5B) 15,000 lb. GVWR, (C7P) 16,000 lb. GVWR or (C7R) 16,500 lb. GVWR.)
• Alternator, 150 amps
• Axle lubricant, front, synthetic oil EmGard FE-75W-90
• Axle lubricant, rear, synthetic oil EmGard FE -75W-90
• Axle to End of Frame, 49" (Requires wheelbase (EM1) 199" or (FNV) 175". Not available with (G40), (GP1) or (GP8) rear air suspension.)
• Axle, Open rear axle, non-locking rear
• Batteries, heavy-duty dual 1100 cold-cranking amps includes battery box mounted to left side under cab
• Brakes, hydraulic, heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
• Capped Fuel Fill

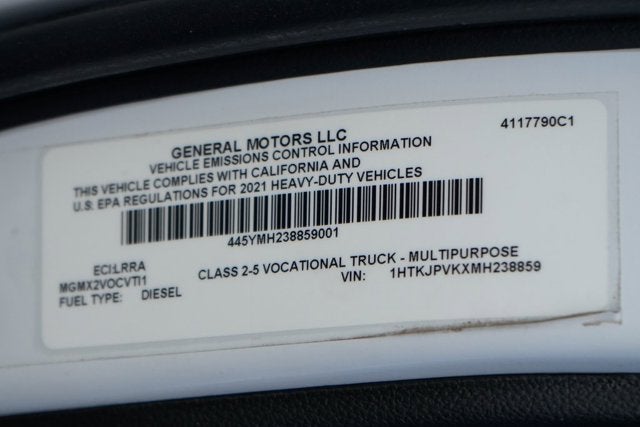

• Emissions, USA 50 State certified
• Exhaust brake
• Exhaust system, rear exit
• Four wheel drive
• Front axle, 7,500 lb., Dana Spicer 60-256, single-reduction, front driving
• Front suspension, 7,500 lb. (3,402 kg) multi-leaf, includes shock absorbers
• Fuel tank, rear only, 40 gallon mounted between frame side rails and behind rear axle
• Fuel, diesel B20

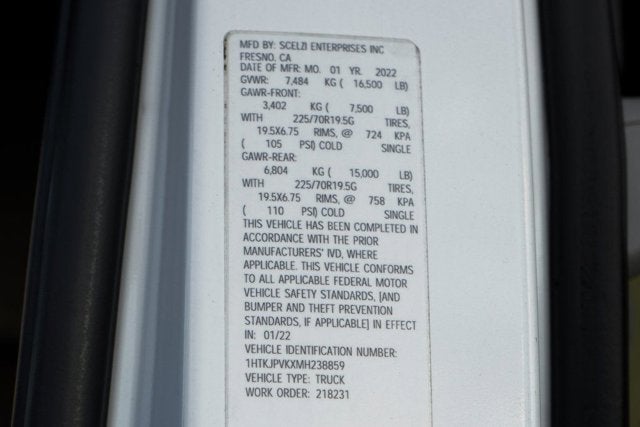

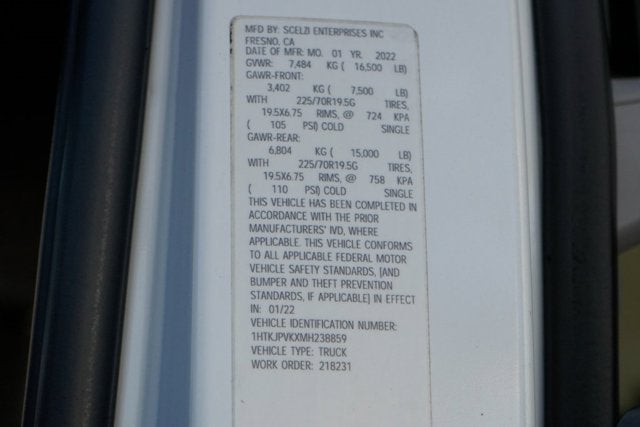

• GVWR, 16,500 lb. (7484 kg) (Silverado 4500 HD 4WD models require one of the following combinations: (1) (FTB) 7.5k front axle and (FTV) 7.5k front suspension and (FN1) 10k rear axle or (GL4) 11k rear axle and (GR3) 11k rear suspension. (2) (FTB) 7.5k front axle and (FTV) 7.5k front suspension and (HD1) 15k rear axle or (J27) 15.5k rear axle and one of the following rear suspensions: (GR4) 13.5k rear suspension, (FU7) 15.5k rear suspension, (91B) 13.5k LiquidSpring prep single volume rear suspension, (91C) 13.5k LiquidSpring prep stacked volume rear suspension, (91D) 15.5k LiquidSpring prep single volume rear suspension or (91E) 15.5k LiquidSpring prep stacked volume rear suspension.)

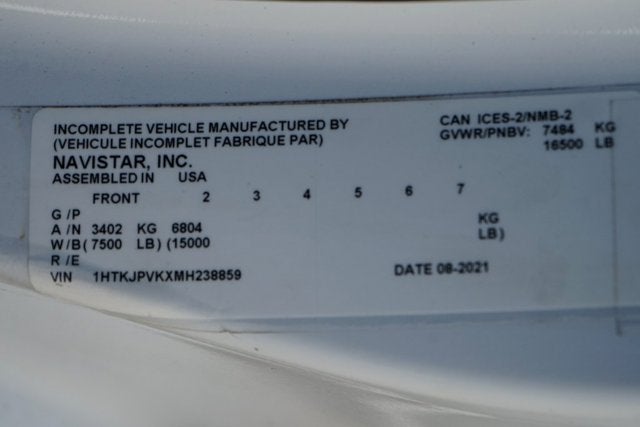

• Incomplete vehicle
• Rear axle, 11,000 lb. (4,999 kg) Dana Spicer S14-110, single reduction
• Rear axle, 4.30 ratio Max road speed: 75 MPH
• Rear suspension, 11,000 (4,990 kg) multi-leaf, vari-rate
• Steering, power (Bosch S2 8014 Plus)
• Wheelbase, 175" (444.5 cm), 60" CA (Requires (F0C) 49" axle to end of frame. Not available with (G40) 12,000 lb., (GP1) 13,500 lb. or (GP8) 15,500 lb. rear air suspension, or (NPK) Exhaust System.)

• Airbag deactivation switch, frontal passenger-side (Included and only available with (AY0) airbags.)
• Airbags, Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Brake, parking, driveline park brake system
• Daytime Running Lamps, with automatic exterior lamp control
• Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
• Horn, single-note
• OnStar, delete
• Traction control

BATTERY, TOP POST THREADED, BATTERY JUMP START STUD

• (located on battery box)

4500 HD SERIES

• (STD)

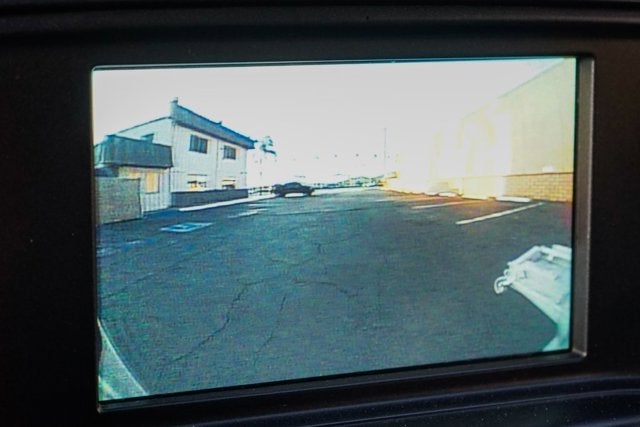

REAR VISION CAMERA, DISPLAY INTEGRATED INTO RADIO

• (Shipped loose in cab for upfitter installation.)

SPARE TIRE DELETE

• (STD)

BATTERIES, HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS

• includes battery box mounted to left side under cab

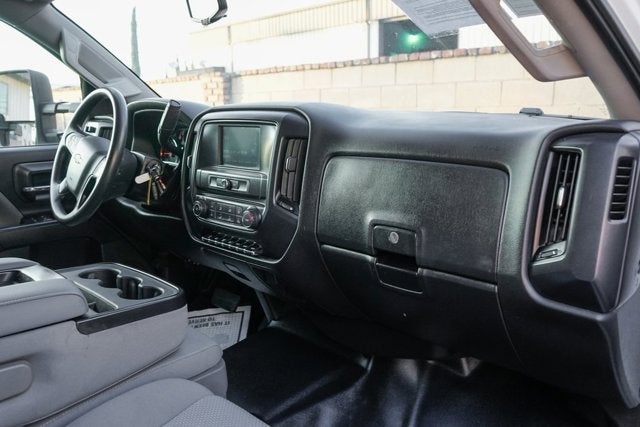

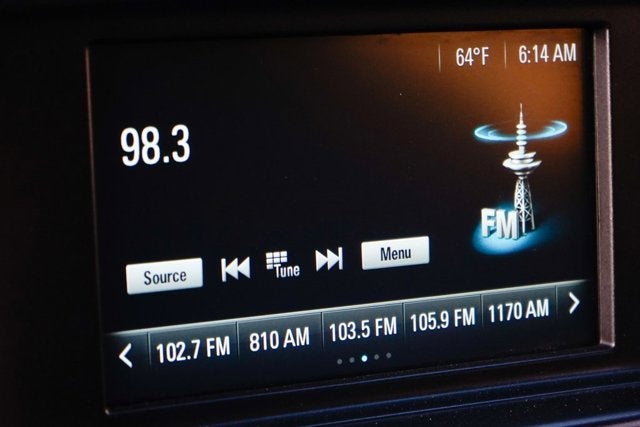

AUDIO SYSTEM, 7" DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT

• AM/FM stereo with seek-and-scan and digital clock
• includes Bluetooth® streaming audio for music and select phones.

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE

• 350 hp @ 2700 rpm
• 700 lb.-ft. torque @ 1600 rpm (STD)

ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE

• Includes compass in instrument cluster.

ELECTRICAL PROVISIONS, REAR OF FRAME, UPFITTER, BODY BUILDER WIRING

• includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn

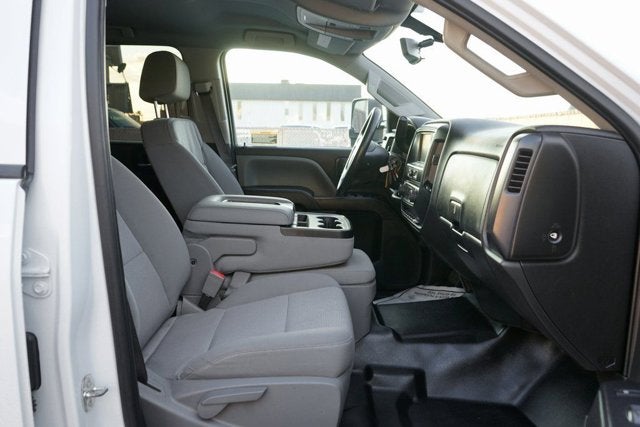

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER

• driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

DPF, DIESEL PARTICULATE FILTER, MANUAL REGENERATION

• customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown

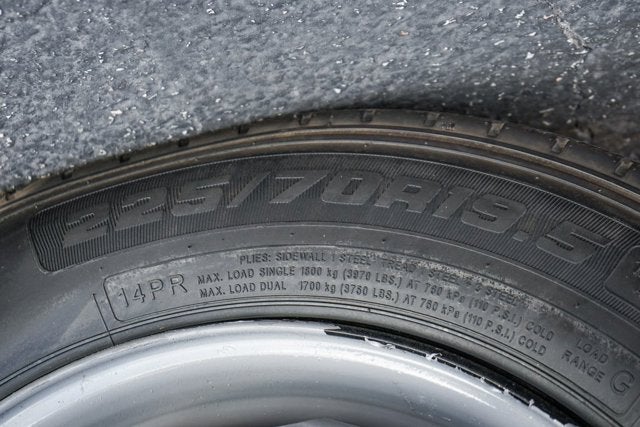

TIRES, REAR 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR

• Max Axle Load: 15
• 000 lb. (STD)

GRILLE GUARD SCREEN, STONE PROTECTION

• (mounted to bumper)

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING, UPPER GLASS, MANUAL-FOLDING AND EXTENDING, BLACK.

• Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp

REAR AXLE, 4.30 RATIO

• Max road speed: 75 MPH

WHEELS, 19.5" X 6.75", STEEL, BLACK PAINTED, 8-HOLES, HUB PILOTED

• (STD)

RUGGED DUTY SERVICE TRANSMISSION, AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE, ALLISON, A1750RDS

• ratios 3.10 1ST
• 1.80 2ND
• 1.40 3RD
• 1.00 4TH
• 0.70 5TH
• 0.61 Rugged Duty Series

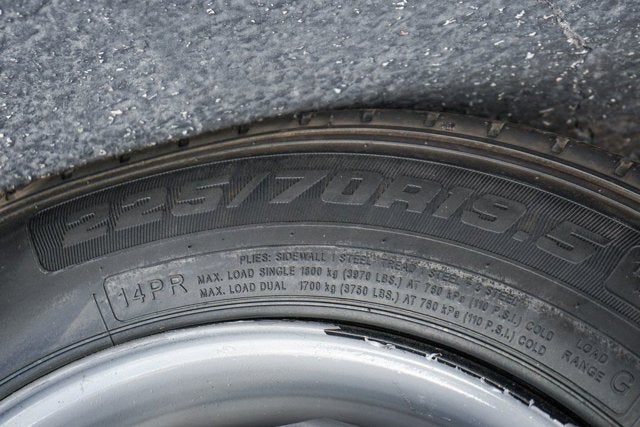

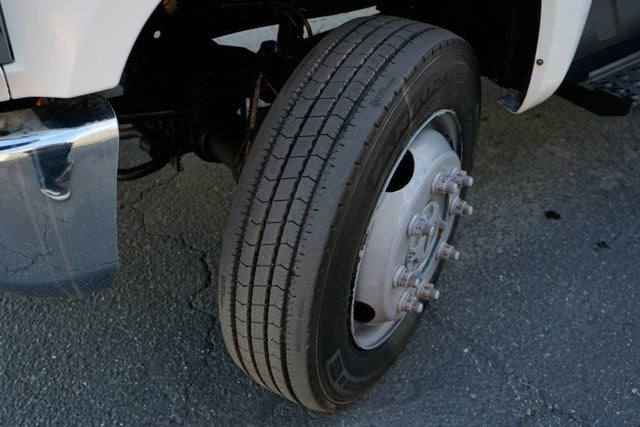

TIRES, FRONT 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR

• Max Axle Load: 7
• 940 lb. (STD)

POWER TAKE OFF, ENGINE CONTROL PROVISIONS

• Access is available on left-hand and right-hand side

GVWR, 16,500 LB. (7484 KG)

• (STD)

• BATTERY TOP POST THREADED BATTERY JUMP START STUD (located on battery box)
• TRAILERING PROVISIONS TRAILERING WIRE HARNESS ONLY TRAILER COMBINED (STOP/TAIL/TURN) CONNECTION SOCKET AND HARNESS MOUNTED AT REAR OF FRAME.
• 4500 HD SERIES (STD)
• 30 000 LB. GCWR (13 607 KG)
• DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS CLOTH SEAT TRIM
• REAR VISION CAMERA DISPLAY INTEGRATED INTO RADIO (Shipped loose in cab for upfitter installation.)
• ADDITIONAL FUEL 20 GALLONS
• WHEELBASE 199 (505.5 CM) 84 CA
• SPARE TIRE DELETE (STD)
• LICENSE PLATE KIT FRONT
• GRILLE CHROME
• BATTERIES HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS includes battery box mounted to left side under cab
• REMOTE KEYLESS ENTRY
• AUDIO SYSTEM 7 DIAGONAL COLOR TOUCH-SCREEN WITH CHEVROLET INFOTAINMENT AM/FM stereo with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones.
• FRONT STABILIZER BAR
• SHOCK ABSORBERS REAR
• ENGINE DURAMAX 6.6L TURBO-DIESEL V8 B20-DIESEL COMPATIBLE 350 hp @ 2700 rpm 700 lb.-ft. torque @ 1600 rpm (STD)
• FRONT AXLE 7 500 LB. DANA SPICER 60-256 SINGLE-REDUCTION FRONT DRIVING
• RECOVERY HOOKS FRONT FRAME-MOUNTED BLACK
• ONSTAR AND CHEVROLET CONNECTED SERVICES CAPABLE Includes compass in instrument cluster.
• BUMPER FRONT CHROME
• SKID PLATE STEEL FRAME-MOUNTED PROTECTS THE TRANSFER CASE FROM THE GROUND
• REAR AXLE 15 000 LB. (6 804 KG) DANA SPICER S16-130 SINGLE REDUCTION
• ENGINE BLOCK HEATER
• REAR SUSPENSION 15 500 LB. (7 031 KG) MULTI-LEAF VARI-RATE
• TRAILER BRAKE CONTROLLER INTEGRATED
• 4G LTE WI-FI HOTSPOT CAPABLE
• ELECTRICAL PROVISIONS REAR OF FRAME UPFITTER BODY BUILDER WIRING includes Sealed Connectors for Tail/Amber Turn/Marker/Backup/Accessory Power/Ground and Sealed Connector for Stop/Turn
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• SUMMIT WHITE
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• AXLE LIMITED SLIP DANA SPICER TRUETRAC TORQUE PROPORTIONING LIMITED SLIP
• PAINT SOLID
• OIL SEAL FOR FRONT HUB CHICAGO RAWHIDE NITRILE FOR OIL LUBRICATED WHEEL BEARINGS
• DPF DIESEL PARTICULATE FILTER MANUAL REGENERATION customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
• FRONT FENDER EXTENSION PAINTED BODY COLOR
• TIRES REAR 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR Max Axle Load: 15 000 lb. (STD)
• GRILLE GUARD SCREEN STONE PROTECTION (mounted to bumper)
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• REAR AXLE 4.30 RATIO Max road speed: 75 MPH
• HORN DUAL-NOTE
• WHEELS 19.5 X 6.75 STEEL BLACK PAINTED 8-HOLES HUB PILOTED (STD)
• RUGGED DUTY SERVICE TRANSMISSION AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE ALLISON A1750RDS ratios 3.10 1ST 1.80 2ND 1.40 3RD 1.00 4TH 0.70 5TH 0.61 Rugged Duty Series
• ALTERNATOR 220 AMPS
• TIRES FRONT 225/70R19.5G HIGHWAY BLACKWALL GOODYEAR Max Axle Load: 7 940 lb. (STD)
• POWER TAKE OFF ENGINE CONTROL PROVISIONS Access is available on left-hand and right-hand side
• GVWR 16 500 LB. (7484 KG) (STD)
• FUEL TANK FRONT AND REAR 65 GALLON TOTAL
• POWER OUTLET 110-VOLT AC
• 6 Speakers
• 6-Speaker Audio System
• Premium audio system: Chevrolet MyLink
• Single-Slot CD/MP3 Player
• SiriusXM Radio
• Air Conditioning
• Single-Zone Air Conditioning
• 110-Volt AC Power Outlet
• Power steering
• Power windows

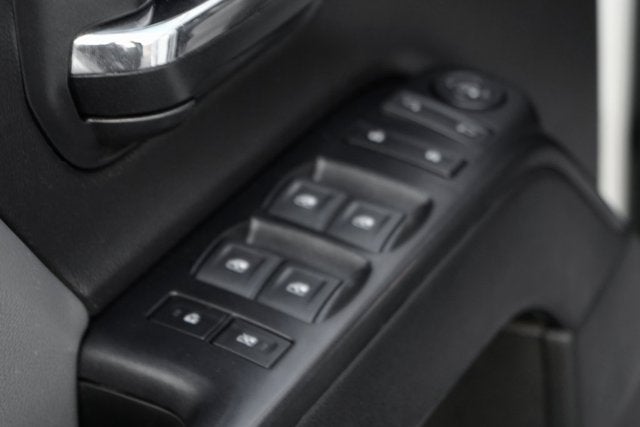

• Power Windows w/Driver Express Up & Down
• Remote Keyless Entry
• Rear Shock Absorbers
• Traction control
• ABS brakes
• Chrome Front Bumper
• Dual front impact airbags
• Dual front side impact airbags
• Occupant sensing airbag
• Overhead airbag
• Passenger cancellable airbag
• Electronic Stability Control
• Rear Vision Camera
• Delay-off headlights
• Fully automatic headlights
• Frontal Passenger-Side Airbag Deactivation Switch
• Speed control
• Dual rear wheels
• Limited-Slip Axle
• Engine Block Heater
• Body Color Painted Front Fender Extension
• Chrome Grille
• Dual-Note Horn
• Front License Plate Kit
• Front Stabilizer Bar
• Nitrile For Oil Lubricated Wheel Bearings Chicago Rawhide Front Hub Oil Seal
• Power Take-Off Engine Control Provisions
• Steel Frame-Mounted Skid Plate
• Stone Protection Grille Guard Screen
• Top Post Threaded Battery Jump Start Stud

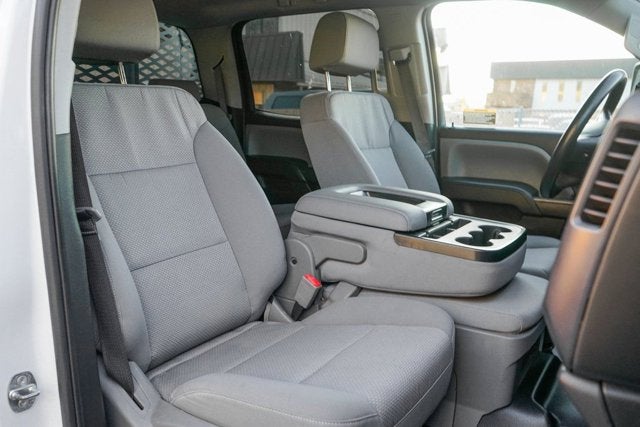

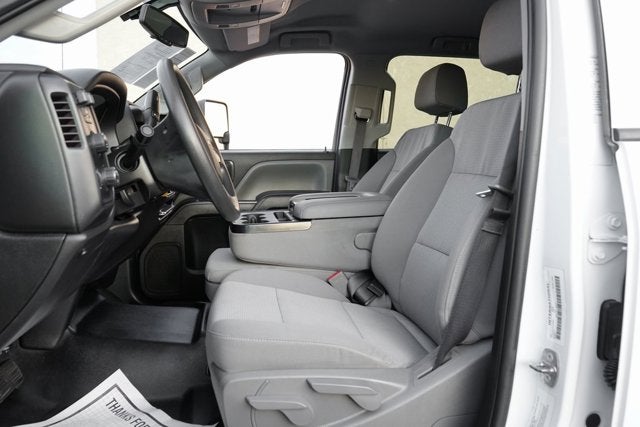

• 40/20/40 Front 3-Passenger Split-Bench Seat (A52)
• 4G LTE Wi-Fi Hotspot Capable
• Chevrolet Connected Access Capable
• Cloth Seat Trim

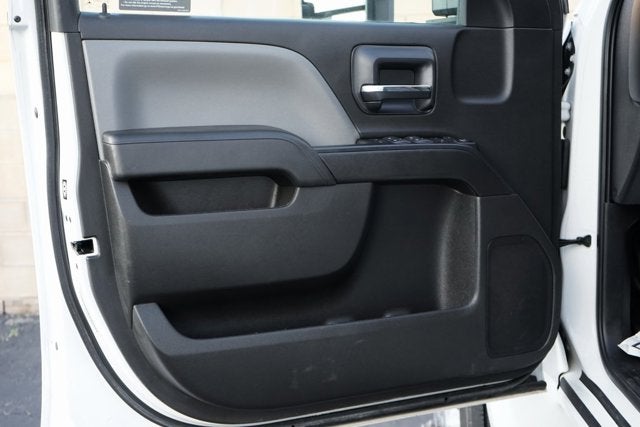

• Driver door bin
• Front reading lights
• OnStar & Chevrolet Connected Services Capable
• Overhead console
• Rear reading lights
• Rear seat center armrest
• Tachometer
• Tilt steering wheel
• Trip computer
• Upfitter Electrical Provisions In Rear Of Frame
• Voltmeter
• 10-Way Power Driver's Seat Adjuster
• Split folding rear seat
• 20 Gallons Additional Fuel
• Manual Regeneration Diesel Particulate Filter DPF
• Front Center Armrest w/Storage
• Passenger door bin
• 30
• 000 lbs. GCWR (13
• 607 kg)
• Black Frame-Mounted Front Recovery Hooks
• Integrated Trailer Brake Controller

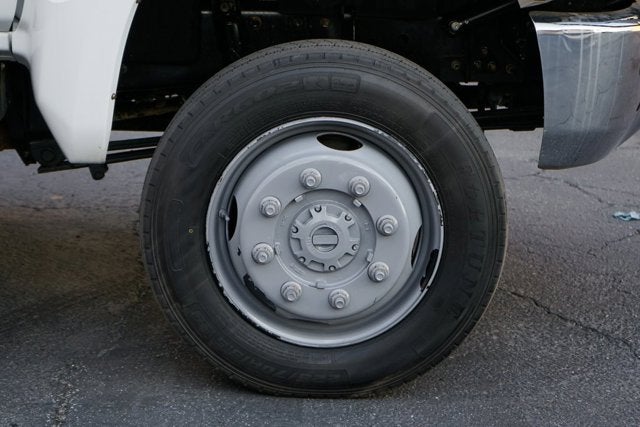

• Wheels: 19.5 x 6.75 Black Painted Hub Piloted Steel w/8-Holes
• Variably intermittent wipers
• 4.30 Rear Axle Ratio
• **CLEAN ONE OWNER CARFAX**

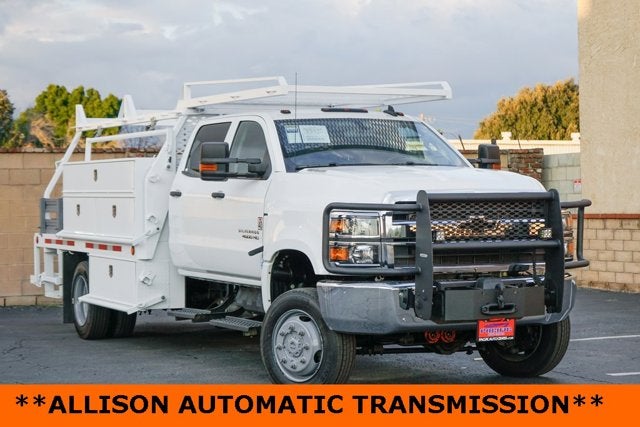

• **ALLISON TRANSMISSION**

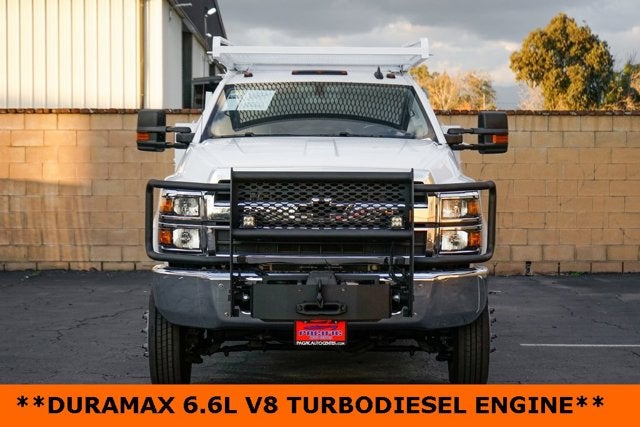

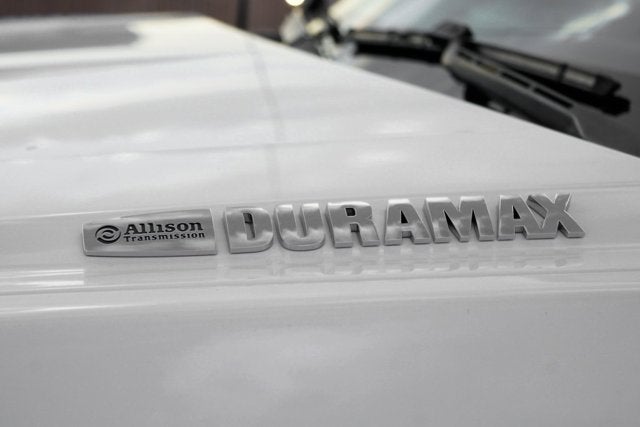

• **DURAMAX 6.6L V8 TURBO-DIESEL**
• **4X4**
• **CREW CAB**
• **LONG BED**
• **DUALLY**
• **POWER WINDOWS**
• **POWER DOOR LOCKS**

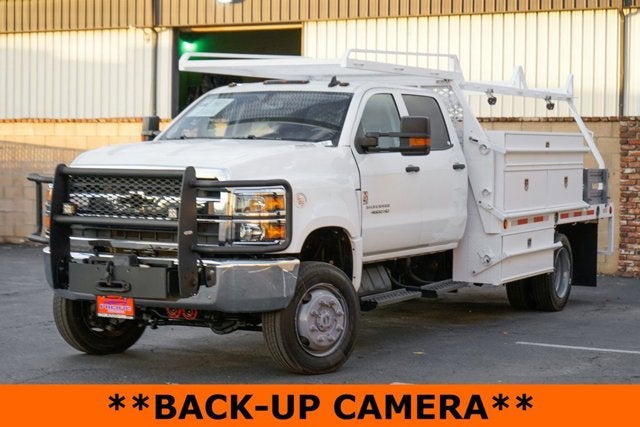

• **BACK-UP CAMERA**
• **TOW PACKAGE**

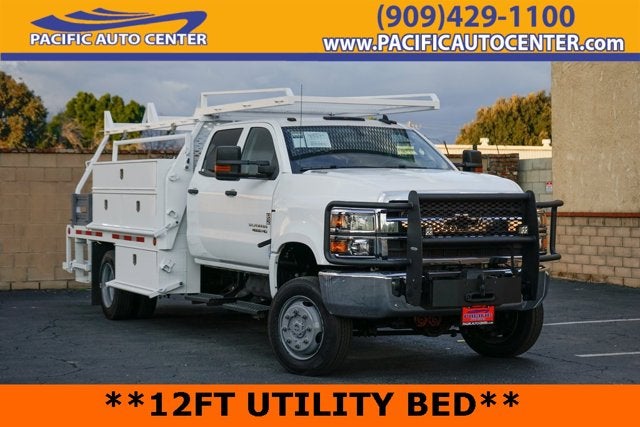

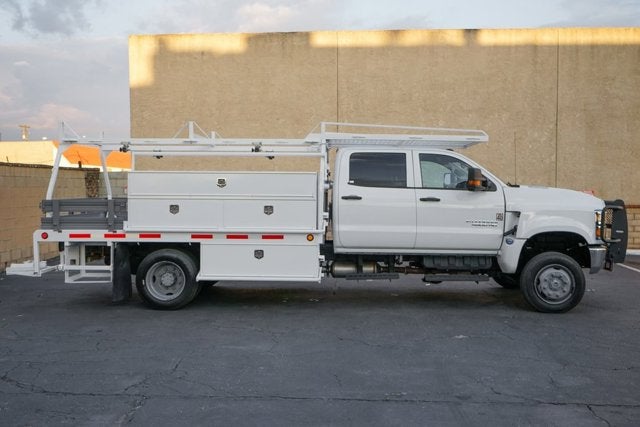

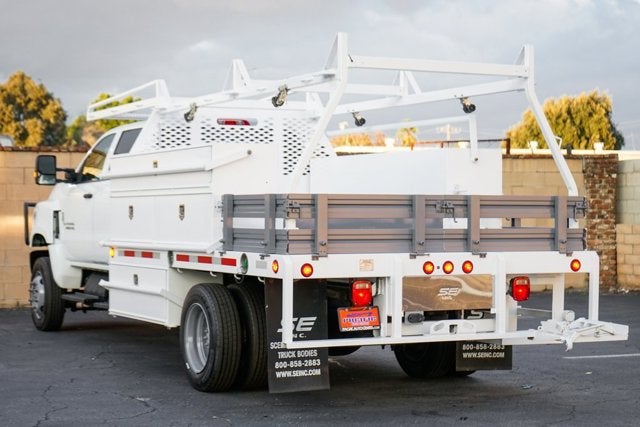

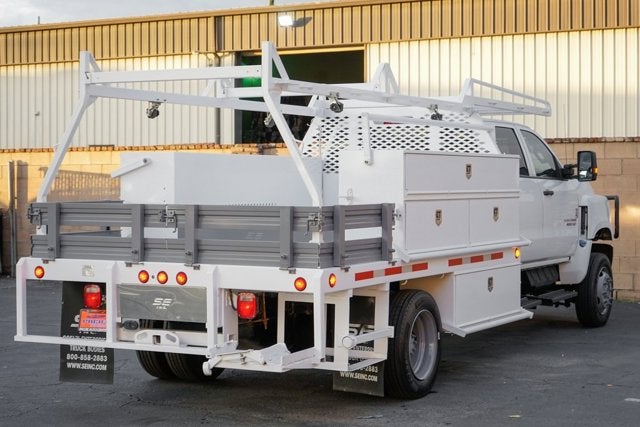

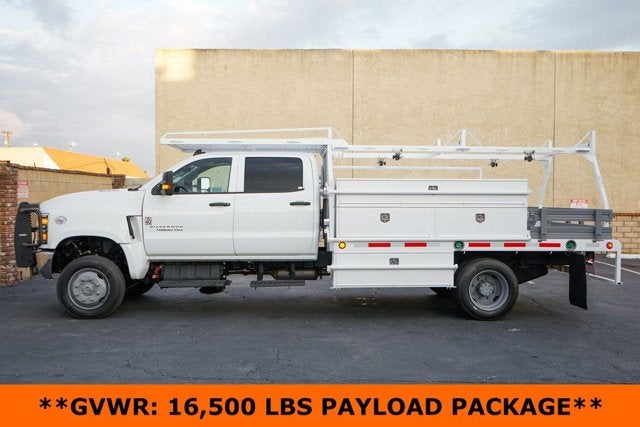

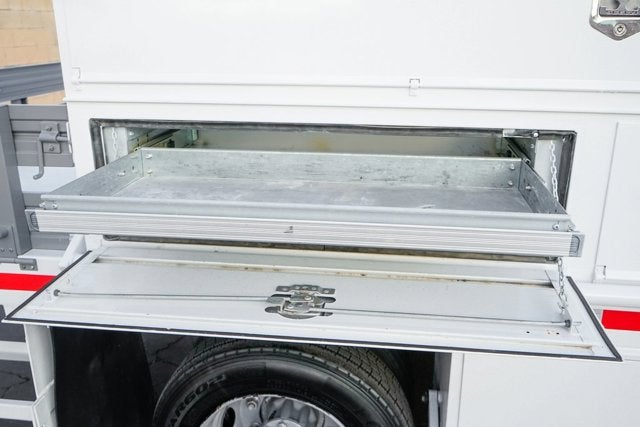

• **UTILITY/SERVICE TRUCK**
• **EXHAUST BRAKE**

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.375 x 1.625
• Rear Brake Rotor Diam x Thickness (in): 15.375 x 1.625
• Cooling System
• Total Cooling System Capacity (qts): 48
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (3rd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 220
• Exterior Dimensions
• Cab to Axle (in): 84.09
• Cab to End of Frame (in): 133.4
• Frame Width, Rear (in): 34.1
• Front Bumper to Back of Cab (in): 149.48
• Ground to Top of Load Floor (in): 32.0 Front/34.6 Rear
• Height, Overall (in): 86.22
• Length, Overall (in): 282.8
• Overhang, Front (in): 34.4
• Overhang, Rear w/o bumper (in): 49
• Wheelbase (in): 199
• Width, Max w/o mirrors (in): 84.0
• Frame
• Frame RBM (N/A): 404000 Front/546500 Belly/423500 Rear
• Frame Strength (lbs): 50000
• Frame Thickness (in): 0.3125
• Frame Type: High Strength Low Alloy Steel
• Sect Modulus Rails Only (in³): 8.08 Front/10.93 Belly/8.47 Rear
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 65
• Fuel Tank Location: Front & Rear
• Interior Dimensions
• Front Head Room (in): 42.8
• Front Hip Room (in): 60.75
• Front Leg Room (in): 45.28
• Front Shoulder Room (in): 64.84
• Passenger Capacity: 6
• Second Head Room (in): 40.51
• Second Hip Room (in): 60.24
• Second Leg Room (in): 40.94
• Second Shoulder Room (in): 64.33
• Medium Duty Performance
• Driver Ratio: 1
• Max Speed For Gradeability: 75
• Static Loaded Radius (in): 15
• Torque : Clutch Engage (ft-lbs)
• Torque Converter: 1.764
• Steering
• Steering Ratio (:1), At Lock: 19.6
• Steering Ratio (:1), On Center: 16.6
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 61.5
• Turning Diameter - Wall to Wall (ft): 63.1
• Summary
• Body Style: Crew Cab Chassis Cab
• Vehicle Name: Chevrolet Silverado MD
• Suspension
• Axle Capacity - Front (lbs): 7500
• Axle Capacity - Rear (lbs): 15000
• Axle Ratio (:1) - Front: 4.30
• Axle Ratio (:1) - Rear: 4.30
• Axle Type - Front: Single Reduction
• Axle Type - Rear: Single Reduction
• Shock Absorber Diameter - Front (mm): 51
• Shock Absorber Diameter - Rear (mm): 49
• Spring Capacity - Front (lbs): 7500
• Spring Capacity - Rear (lbs): 15500
• Stabilizer Bar Diameter - Front (in): 1.26
• Suspension Type - Front: Multi-Leaf
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 7940
• Front Tire Order Code: XDK
• Front Tire Size: 225/70R19.5G
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Number Of Tires Spare: 0
• Rear Tire Capacity (lbs): 15000
• Rear Tire Order Code: YAL
• Rear Tire Size: 225/70R19.5G
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Vehicle
• Number of Passenger Doors: 4
• Weight Information
• Curb Weight - Front (lbs): 5649
• Curb Weight - Rear (lbs): 3279
• Gross Axle Wt Rating - Front (lbs): 7500
• Gross Axle Wt Rating - Rear (lbs): 15000
• Gross Combined Wt Rating (lbs): 30000
• Gross Vehicle Weight Rating Cap (lbs): 16500
• Wheels
• # of Bolt Holes - Front: 8
• # of Bolt Holes - Rear: 8
• Front Bolt Pattern: 8 Hole JIS 10.83"
• Front Wheel Material: Steel
• Front Wheel Size (in): 19.5 x 6.75
• Rear Bolt Pattern: 8 Hole JIS 10.83"
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 19.5 x 6.75
