• Audio system feature, 2 speakers

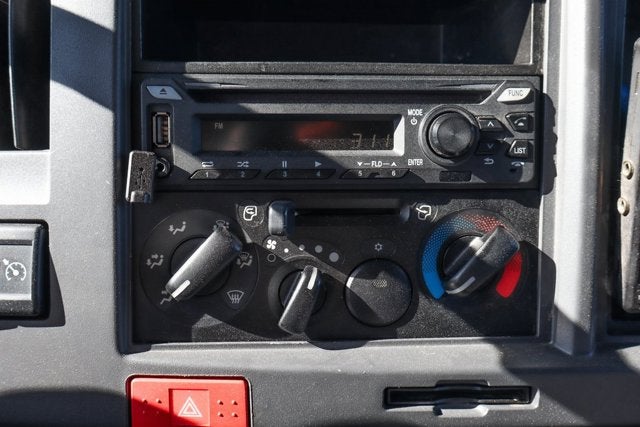

• Audio System, AM/FM stereo with CD player, auxiliary jack, USB port and Bluetooth®
• Cruise control, electronic, automatic
• Cup holders
• Door locks, power
• Floor mats
• Lighting, interior dome
• Seat trim, Cloth
• Seat, front high back bucket driver and passenger tricoat cloth covered reclining high back driver seat with single two occupant fold down passenger seat

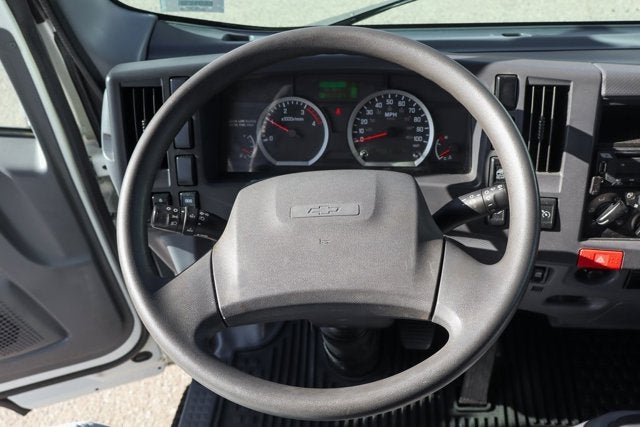

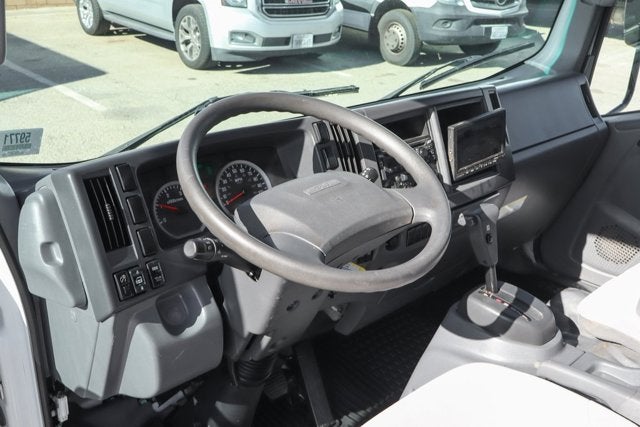

• Steering wheel, tilt and telescopic
• Steering wheel, urethane

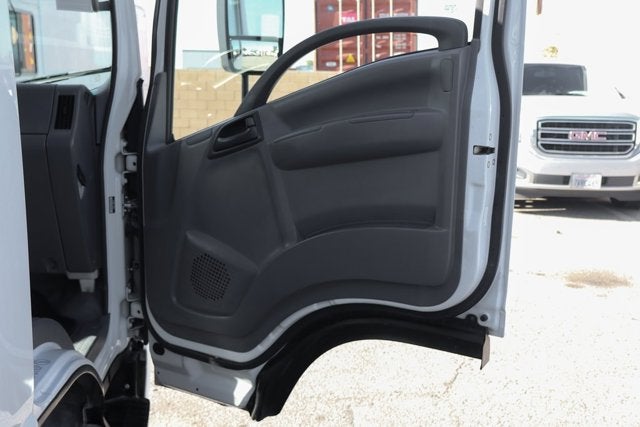

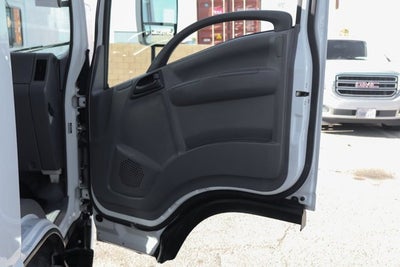

• Storage, door pockets
• Storage, seatback pockets

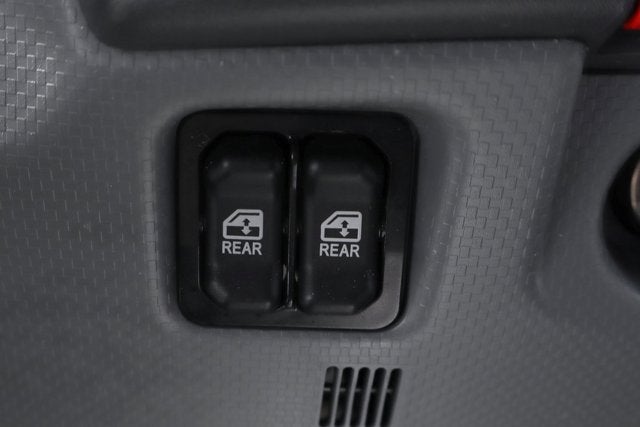

• Windows, power
• Windshield washer bottle access on passenger side dash when passenger-side door is open

• Air cleaner, heavy-duty, 11" diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
• Alternator, 140 amps
• Battery, dual 750 cold-cranking amps, 12 volt, maintenance free
• Drivetrain, rear-wheel drive
• Exhaust brake
• Exhaust, single horizontal outlet
• Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide. Yield strength 44,000 psi, section modulus 11.89 cu.in. and RBM 523,160 lb-ft/in per rail.
• Front axle, 6,830 lbs. (3098 kg), reverse Elliot "I"-beam includes integral hydraulic power steering. ratio 18.8-20.9:1
• Front suspension, 6,830 lbs. (3098 kg) tapered leaf, semi-elliptical steel alloy. Includes shock absorbers and stabilizer bar.
• Fuel tank, 30 Gallon, (113L), rectangular fuel tank. mounted between frame rail with electric type fuel pump (mounted in tank). Through the rail fuel fill
• GVWR, 14,500 lbs. (6577 kg)

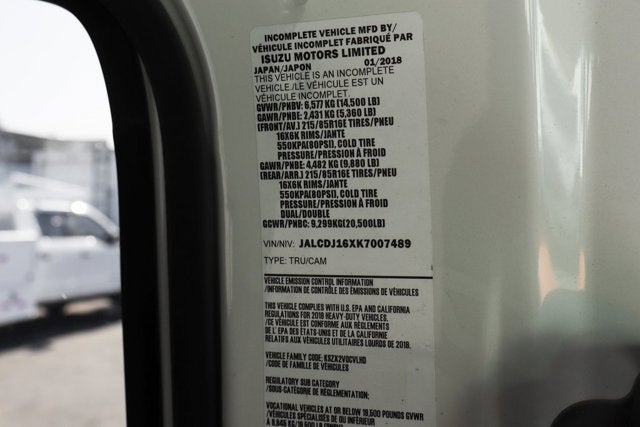

• Incomplete vehicle certification
• Rear axle, 11,020 lbs. (4998 kg) R050, full-floating single-speed with oil lubricated rear wheel-bearings
• Rear axle, 4.56 ratio
• Rear Suspension, 12,900 lbs. (5851 kg), multi-leaf, semi-elliptical steel alloy. Includes shock absorbers
• Vehicle Application Truck
• Wheelbase, 150" (381.0 cm)

• Daytime running lamps

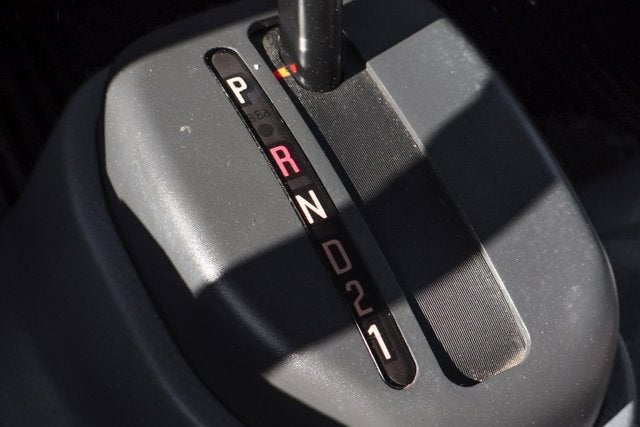

TRANSMISSION, 6-SPEED AUTOMATIC AISIN A465 TRANSMISSION

• with fifth and sixth gear overdrive with lock up in 2nd
• 3rd
• 4th
• 5th and 6th
• PTO capability automatic torque converter lockup in stationary PTO mode. (STD)

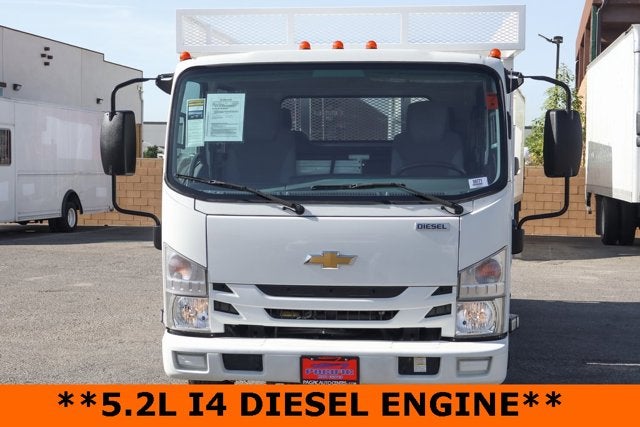

ENGINE, DIESEL 5.2L 4 CYLINDER

• 215 hp [160.3 kW] @2500 rpm
• 452 lb-ft of torque [612.8 Nm] @ 1850-2750 rpm (Governed). 16 valve
• four cycle
• chain-driven dual overhead camshaft valve train
• a cast iron cylinder block
• and a cast aluminum cylinder head. Turbocharged
• inter-cooled
• water cooled EGR
• direct injection
• electronically controlled common rail fuel system and engine cruise control. Oil level check switch and light. Engine warning system with audible warning for low oil pressure
• high coolant temperature
• and a protection system that will reduce fueling if excessive coolant temperature is detected (STD)

TIRES, FRONT, LT215/85R16 E 115/112 L BW ALS VAR1

• (STD)

AUDIO SYSTEM, AM/FM STEREO WITH CD PLAYER, AUXILIARY JACK, USB PORT AND Bluetooth®

• (STD)

PREFERRED EQUIPMENT GROUP

• includes standard equipment

TIRES, REAR, LT215/85R16 E 115/112 L BW ALS VAR1

• (STD)

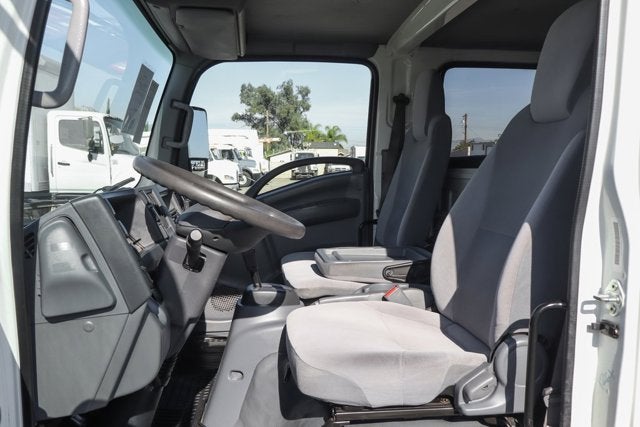

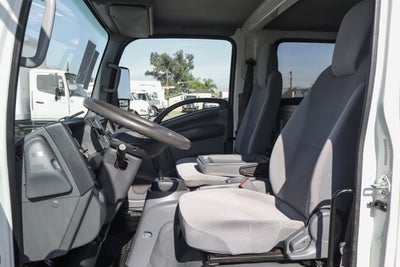

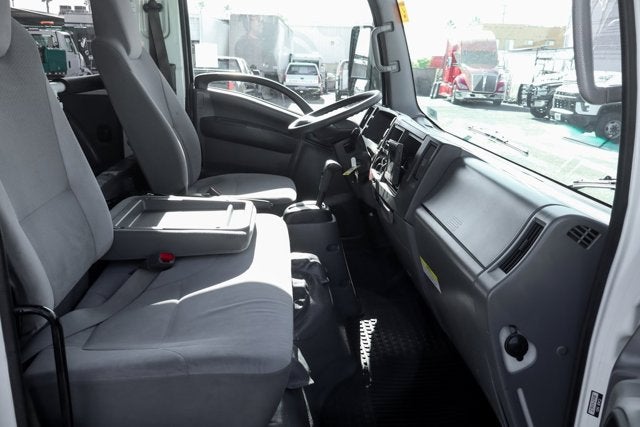

SEAT, FRONT HIGH BACK BUCKET DRIVER AND PASSENGER

• tricoat cloth covered reclining high back driver seat with single two occupant fold down passenger seat (STD)

• ARC WHITE

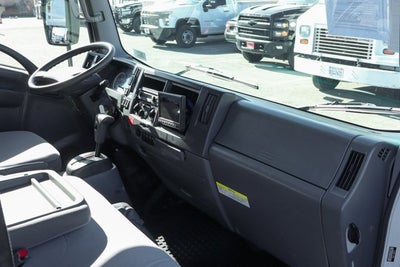

• AIR CONDITIONING SINGLE-ZONE MANUAL INTEGRAL IN-DASH MOUNTED
• VERY DARK PEWTER CLOTH SEAT TRIM
• PIO LOCKABLE FUEL CAP DEF FUEL FILL
• PIO BACK UP ALARM
• TRANSMISSION 6-SPEED AUTOMATIC AISIN A465 TRANSMISSION with fifth and sixth gear overdrive with lock up in 2nd 3rd 4th 5th and 6th PTO capability automatic torque converter lockup in stationary PTO mode. (STD)
• REAR AXLE 4.56 RATIO
• ENGINE DIESEL 5.2L 4 CYLINDER 215 hp [160.3 kW] @2500 rpm 452 lb-ft of torque [612.8 Nm] @ 1850-2750 rpm (Governed). 16 valve four cycle chain-driven dual overhead camshaft valve train a cast iron cylinder block and a cast aluminum cylinder head. Turbocharged inter-cooled water cooled EGR direct injection electronically controlled common rail fuel system and engine cruise control. Oil level check switch and light. Engine warning system with audible warning for low oil pressure high coolant temperature and a protection system that will reduce fueling if excessive coolant temperature is detected (STD)

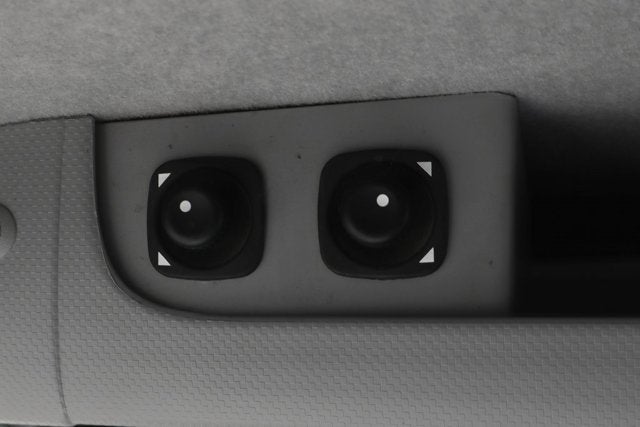

• PIO MIRROR OUTSIDE LEFT HAND AND RIGHT HAND HEATED DUAL REMOTE 15 HEADS
• TIRES FRONT LT215/85R16 E 115/112 L BW ALS VAR1 (STD)
• AUDIO SYSTEM AM/FM STEREO WITH CD PLAYER AUXILIARY JACK USB PORT AND Bluetooth® (STD)
• PIO POWER TAKE OFF ENGINE CONTROL PROVISIONS
• PREFERRED EQUIPMENT GROUP includes standard equipment
• TIRES REAR LT215/85R16 E 115/112 L BW ALS VAR1 (STD)
• PIO REMOTE KEYLESS ENTRY
• SEAT FRONT HIGH BACK BUCKET DRIVER AND PASSENGER tricoat cloth covered reclining high back driver seat with single two occupant fold down passenger seat (STD)
• PIO FIRE EXTINGUISHER AND SAFETY REFLECTOR MOUNTING PROVISIONS
• PIO REAR DOME AND BODY LAMP SWITCH
• Preferred Equipment Group 1WT
• 2 Speakers
• AM/FM radio
• CD player
• Radio: AM/FM Stereo w/CD Player & Bluetooth®
• Single Zone Manual Air Conditioning
• Power steering
• Power windows
• Remote Keyless Entry
• ABS brakes
• Front anti-roll bar
• Fire Extinguisher & Safety Reflector Mounting Provisions
• Speed control
• Dual rear wheels
• Bumpers: body-color
• Back Up Alarm
• Driver door bin
• Overhead console
• Power Take Off Engine Control Provisions
• Rear Dome & Body Lamp Switch

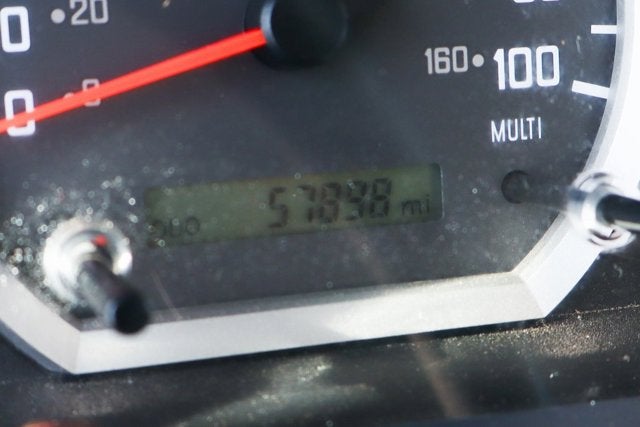

• Tachometer
• Telescoping steering wheel
• Tilt steering wheel
• Trip computer
• Front Bucket Seats
• Front Center Armrest
• Front High Back Bucket Seats
• Tricoat Cloth Seat Trim
• Lockable Gas Cap DEF Fuel Fill
• Passenger door bin
• Wheels: 16 x 6.0 K Steel
• **CLEAN ONE OWNER CARFAX**

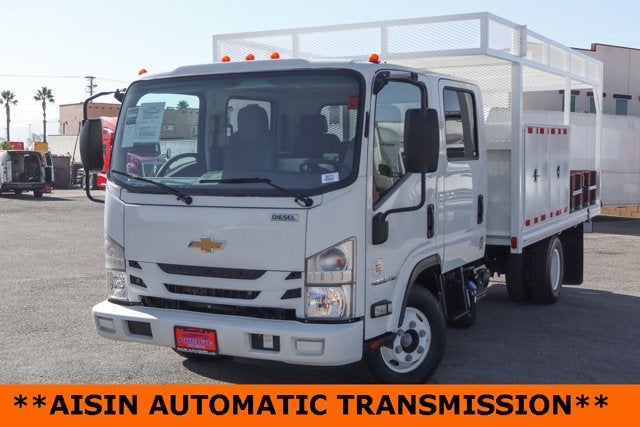

• **AISIN TRANSMISSION**
• **RWD**
• **CREW CAB**
• **LONG BED**

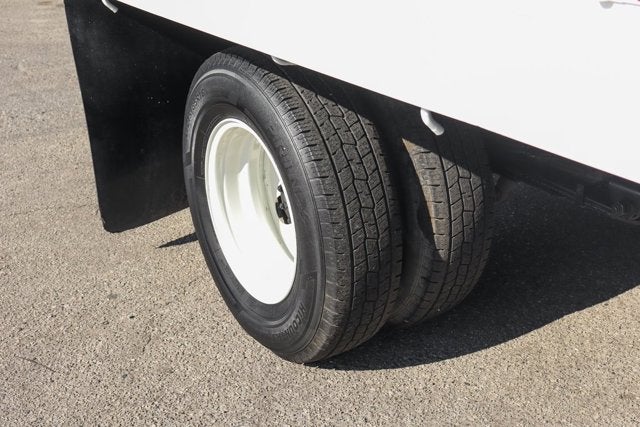

• **DUALLY**
• **POWER WINDOWS**
• **POWER DOOR LOCKS**

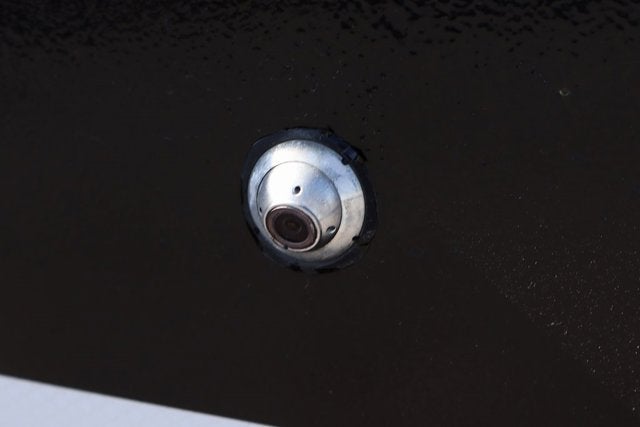

• **BACK-UP CAMERA**

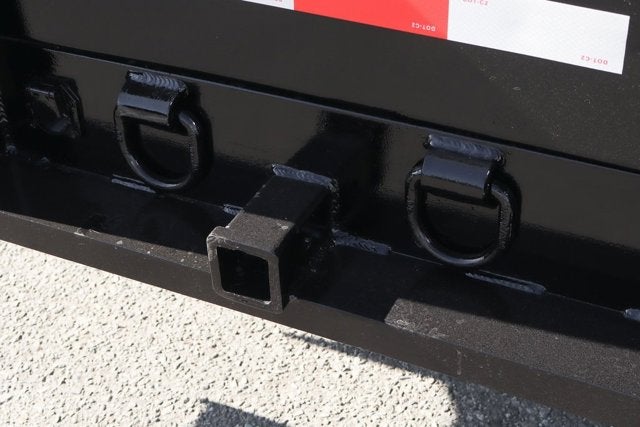

• **TOW PACKAGE**

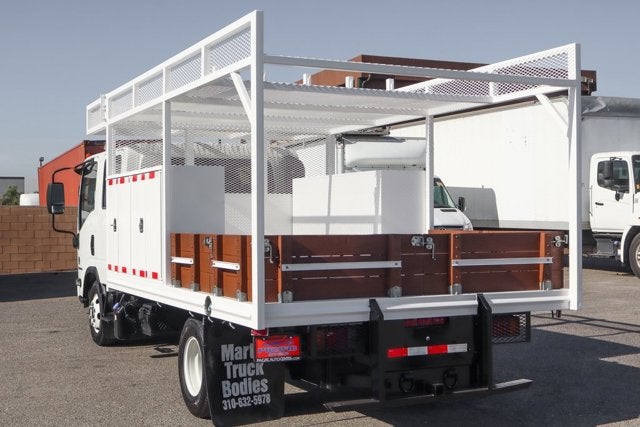

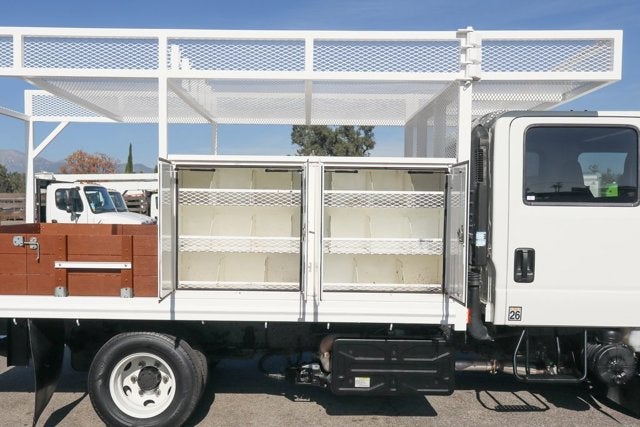

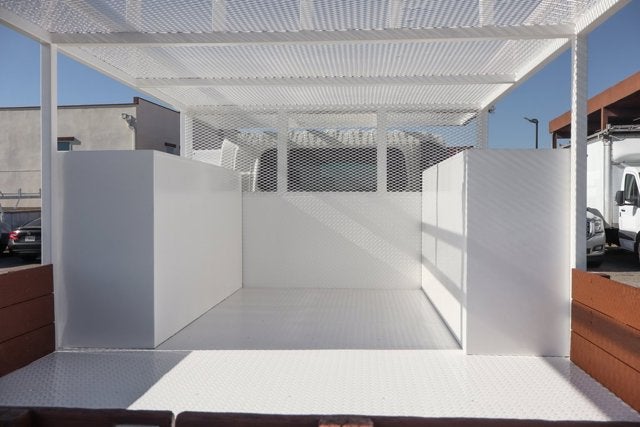

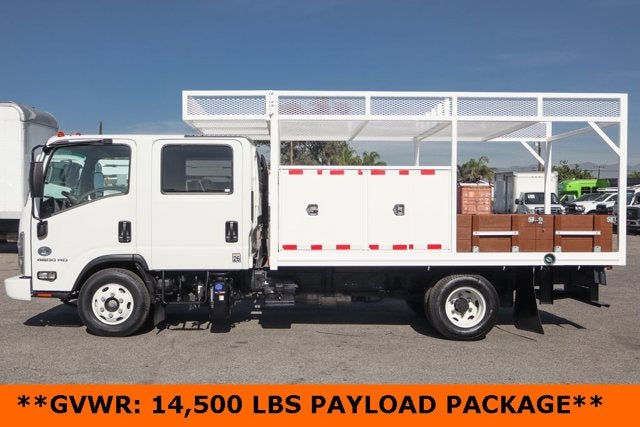

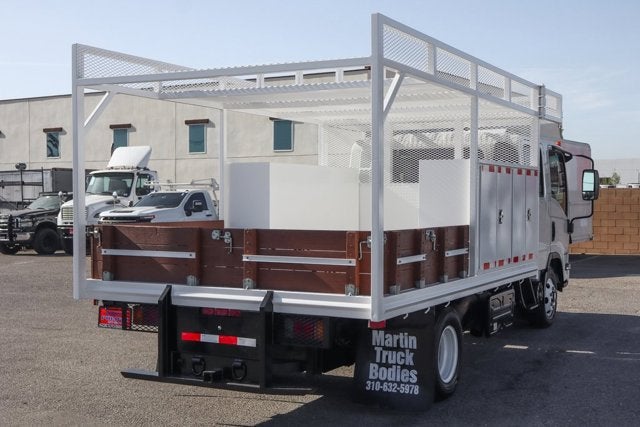

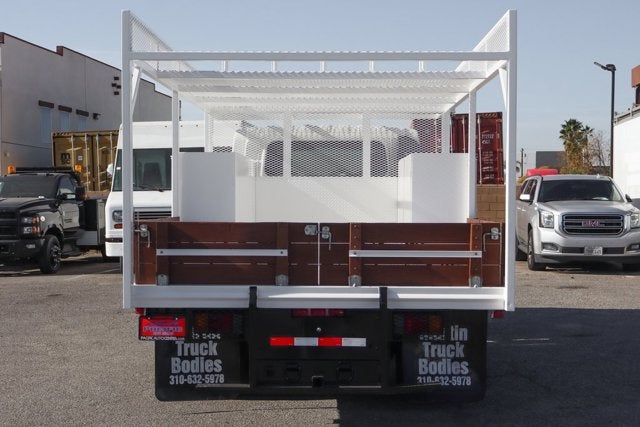

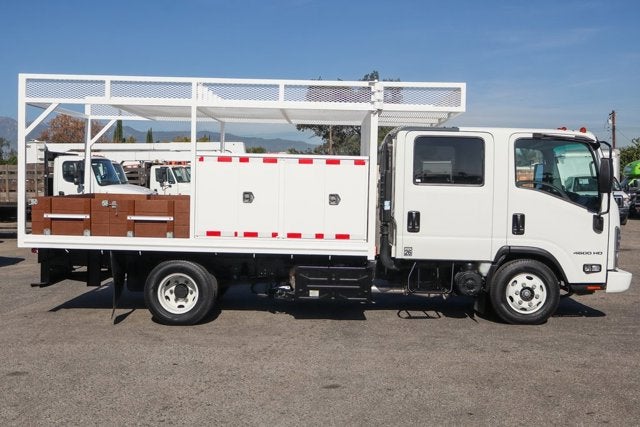

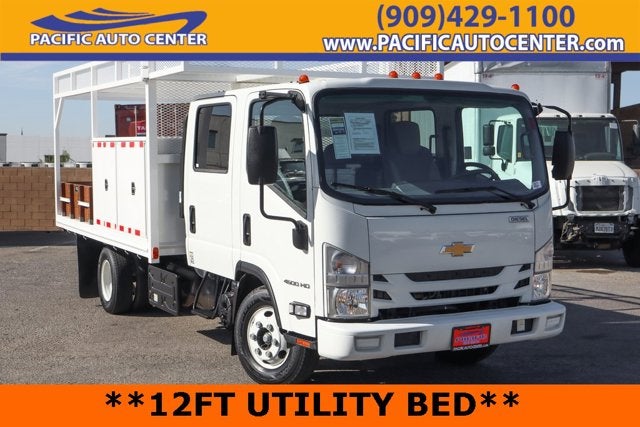

• **UTILITY/SERVICE TRUCK**

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Drum - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.5 x
• Rear Drum Diam x Width (in): 12.6 x 3.94
• Cooling System
• Total Cooling System Capacity (qts): 19.7
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (3rd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 140
• Exterior Dimensions
• Body Length Default Value (ft): 12
• Cab to Axle (in): 88.50
• Cab to End of Frame (in): 131.60
• Frame Width, Rear (in): 33.50
• Front Bumper to Back of Cab (in): 109.90
• Ground Clearance, Front (in): 7.50
• Ground Clearance, Rear (in): 7.50
• Ground to Top of Frame (in): 31.10
• Height, Overall (in): 90.80
• Length, Overall (in): 241.50
• Overhang, Front (in): 48.30
• Overhang, Rear w/o bumper (in): 43.10
• Wheelbase (in): 150.00
• Width, Max w/o mirrors (in): 81.30
• Frame
• Frame RBM (N/A): 523160
• Frame Strength (lbs): 44000
• Frame Thickness (in): 8.50 x 2.76 x 0.24
• Frame Type: Ladder-Type C-Section
• Sect Modulus Rails Only (in³): 11.89
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 30.0
• Fuel Tank Location: Frame Rail
• Interior Dimensions
• Front Head Room (in): 38.40
• Front Hip Room (in): 67.70
• Front Leg Room (in): 29.50
• Front Shoulder Room (in): 70.70

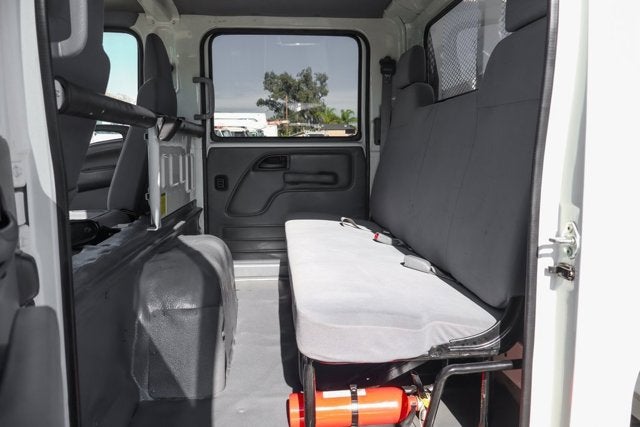

• Passenger Capacity: 7
• Second Head Room (in): 37.30
• Second Hip Room (in): 69.30
• Second Leg Room (in): 22.30
• Second Shoulder Room (in): 69.30
• Medium Duty Performance
• Torque : Clutch Engage (ft-lbs)
• Torque Converter: 1.7639
• Steering
• Steering Ratio (:1), At Lock: 18.8-20.9
• Steering Ratio (:1), On Center: 18.8-20.9
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 42.7
• Turning Diameter - Wall to Wall (ft): 48.9
• Summary
• Body Style: Crew Cab Chassis Cab

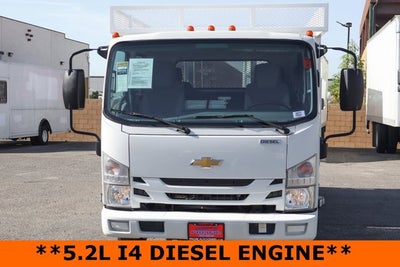

• Vehicle Name: Chevrolet 4500HD LCF Diesel
• Suspension
• Axle Capacity - Front (lbs): 6830
• Axle Capacity - Rear (lbs): 11020
• Axle Ratio (:1) - Rear: 4.56
• Axle Type - Front: I-Beam
• Axle Type - Rear: Full-Floating
• Shock Absorber Diameter - Front (mm): 42.0
• Shock Absorber Diameter - Rear (mm): 42.0
• Spring Capacity - Front (lbs): 6830
• Spring Capacity - Rear (lbs): 9880
• Stabilizer Bar Diameter - Front (in): 1.65
• Suspension Type - Front: Tapered Leaf Springs
• Suspension Type - Rear: Multi-Leaf Springs
• Tires
• Front Tire Capacity (lbs): 5360
• Front Tire Order Code: 2TA

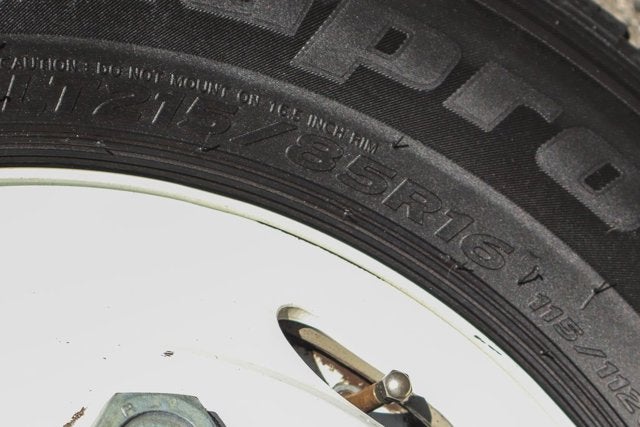

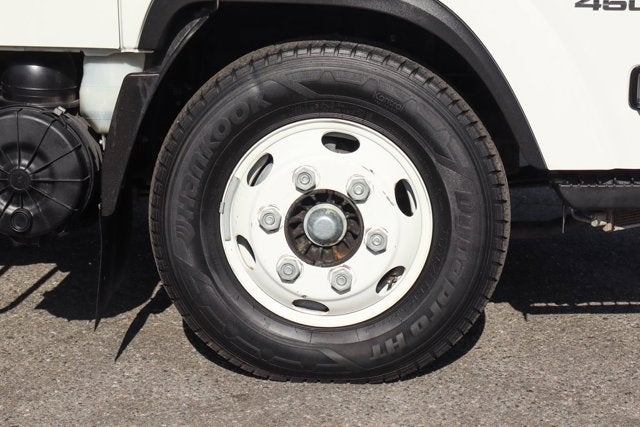

• Front Tire Size: LT215/85R16
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Rear Tire Capacity (lbs): 9880
• Rear Tire Order Code: 3TA
• Rear Tire Size: LT215/85R16
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Vehicle
• Number of Passenger Doors: 4
• Weight Information
• Curb Weight - Front (lbs): 4415
• Curb Weight - Rear (lbs): 2253
• Gross Axle Wt Rating - Front (lbs): 5360
• Gross Axle Wt Rating - Rear (lbs): 9880
• Gross Combined Wt Rating (lbs): 20500
• Gross Vehicle Weight Rating Cap (lbs): 16000
• Wheels
• # of Bolt Holes - Front: 6
• # of Bolt Holes - Rear: 6
• Front Bolt Pattern: 6 Hole JIS 8.75"
• Front Wheel Material: Steel
• Front Wheel Offset (mm): 127
• Front Wheel Size (in): 16 x 6.0
• Rear Bolt Pattern: 6 Hole JIS 8.75"
• Rear Wheel Material: Steel
• Rear Wheel Offset (mm): 127
• Rear Wheel Size (in): 16 x 6.0
