• Air conditioning, single-zone manual, integral in-dash mounted
• Audio system feature, 2 speakers

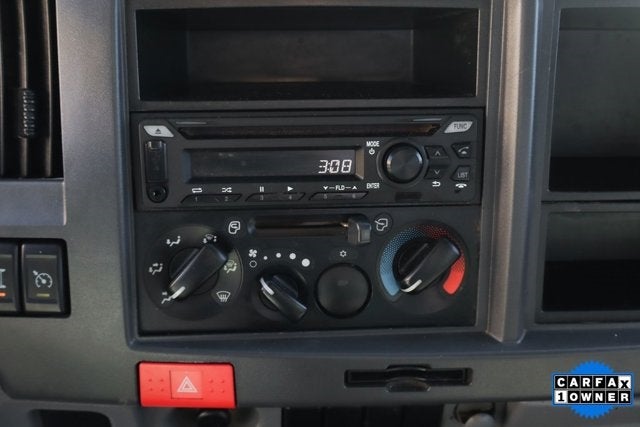

• Audio System, AM/FM stereo with CD player, auxiliary jack, USB port and Bluetooth®
• Cruise control, electronic, automatic
• Cup holders

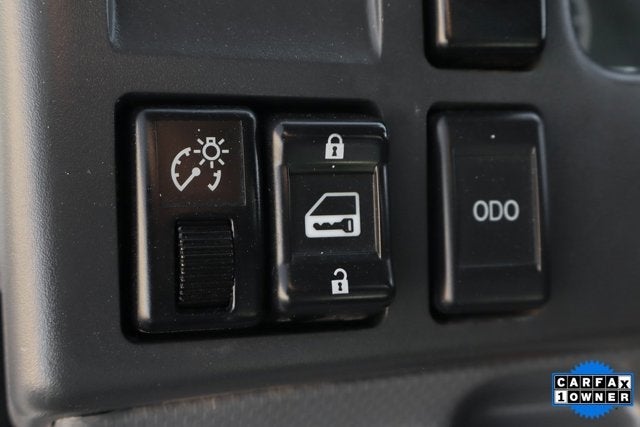

• Door locks, power
• Driver Information Center
• Floor mats
• Lighting, interior dome
• Seat trim, cloth

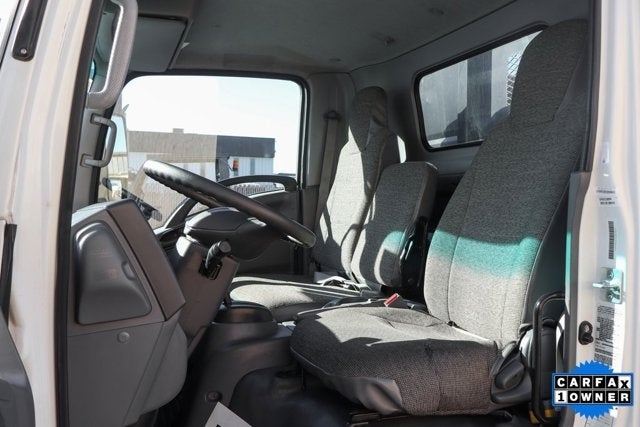

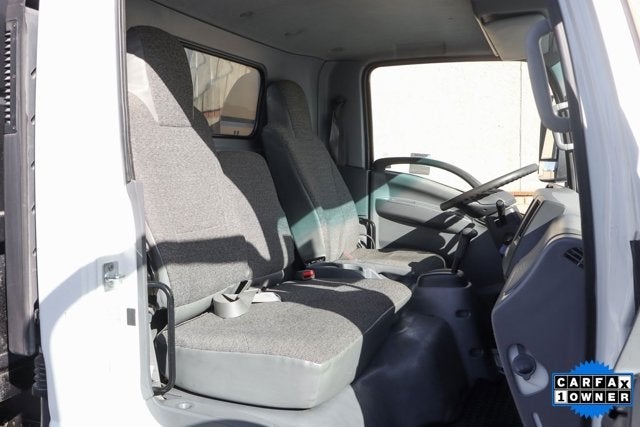

• Seat, front high back bucket driver and passenger tricoat cloth covered reclining highback driver seat with single two occupant fold down passenger seat

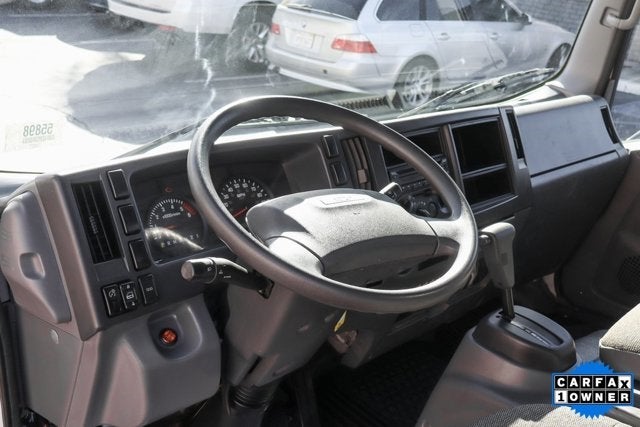

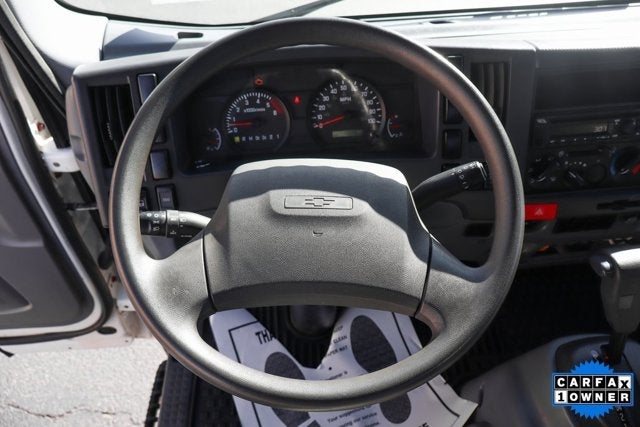

• Steering column, Tilt-Wheel
• Steering wheel, urethane
• Storage, door pockets
• Storage, seatback pockets
• Windows, power
• Windshield washer bottle access on passenger side dash when passenger-side door is open

• Air cleaner, heavy-duty, 11" diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
• Alternator, 145 amps output with integral regulator
• Axle, 4.30 ratio
• Battery, 750 cold-cranking amps, 12-volt single, maintenance free, frame-mounted battery box
• Drivetrain, rear-wheel drive
• Exhaust, single outlet
• Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu.in. and RBM 316,800 lb-ft/in per rail.
• Front axle, 6,830 lbs. (3098 kg), reverse Elliot "I"-beam includes integral hydraulic power steering. ratio 18.8-20.9:1
• Front suspension, 8,440 lbs. (3828 kg) tapered leaf, semi-elliptical steel alloy tapered leaf springs. Includes shock absorbers and stabilizer bar.
• Fuel tank, 30 Gallon, (113L), rectangular fuel tank. mounted between frame rail with electric type fuel pump (mounted in tank). Through the rail fuel fill

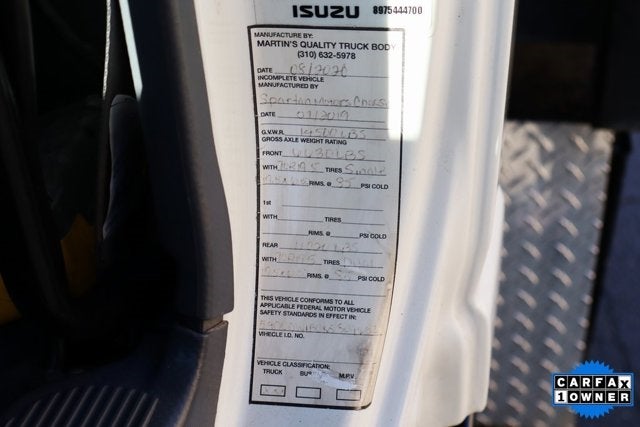

• GVWR, 14,500 lbs. (6577 kg)
• Incomplete vehicle certification
• Rear axle, 11,020 lbs. (4998 kg) R050, full-floating single-speed with oil lubricated rear wheel-bearings
• Rear suspension, 12,900 lbs. (5851 kg), multi-leaf, semi-elliptical steel alloy. Includes shock absorbers
• Vehicle Application Truck
• Wheelbase, 132.5" (336.6 cm)

• Daytime Running Lamps

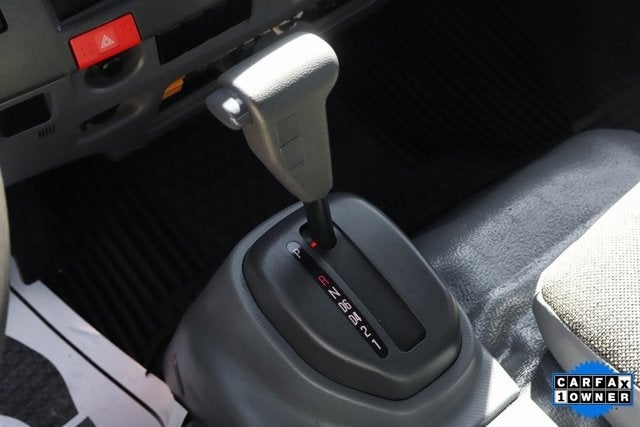

TRANSMISSION, 6-SPEED AUTOMATIC, 6L90-E HYDRA-MATIC WITH LOCK-UP CONVERTER AND OVERDRIVE.

• Ratios: Gear and Ratios 4.027
• 2.364
• 1.532
• 1.152
• 0.852
• 0.667
• Rev. 3.064:1 (STD)

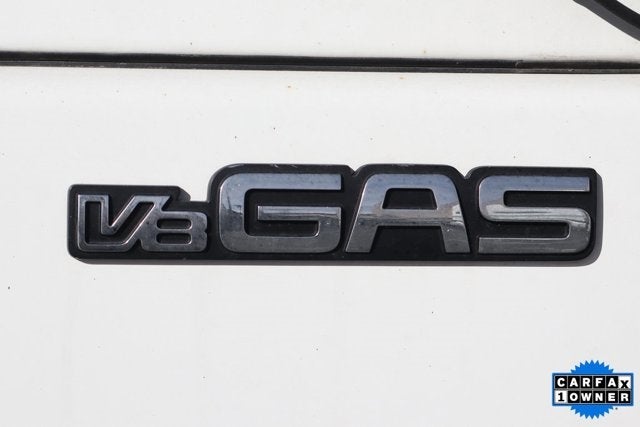

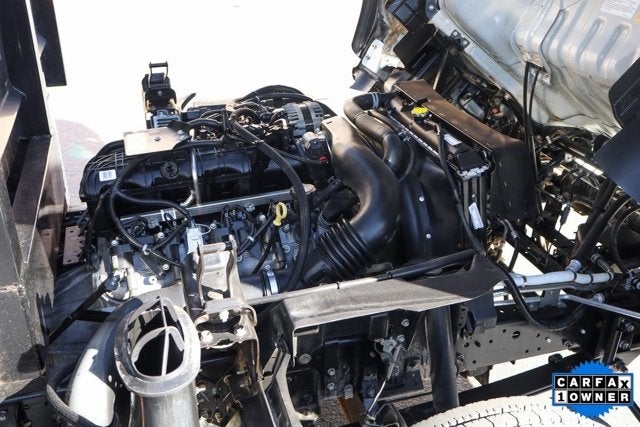

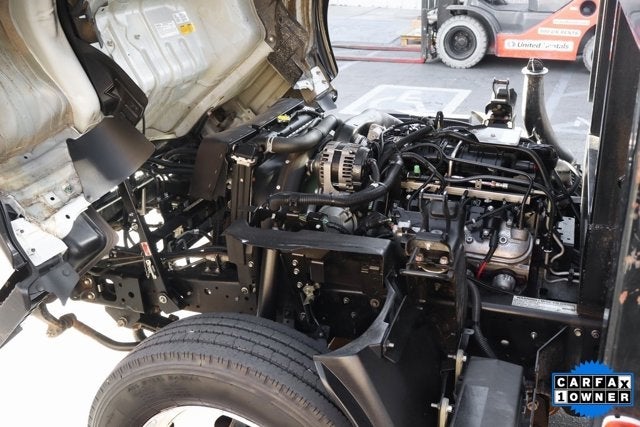

ENGINE, VORTEC 6.0L V8 SFI, GMPT-V8 8 CYLINDER V BLOCK, FOUR CYCLE OVERHEAD VALVE WATER COOLED

• Vortec 6.0L SFI V8 297 hp [221.5 kW] @ 4300 rpm
• 372 lb-ft of torque [504.0 N-m] @ 4000 rpm. Electronically-controlled sequential fuel injection. Six bolt main cap design for heavy-duty performance. Engine Control Module (ECM) and Transmission Control Module (TCM) engine control system. Engine cruise control
• engine oil cooler
• High Idle Mode (1200 rpm) (STD)

SEAT, FRONT HIGH BACK BUCKET DRIVER AND PASSENGER

• tricoat cloth covered reclining highback driver seat with single two occupant fold down passenger seat (STD)

AUDIO SYSTEM, AM/FM STEREO WITH CD PLAYER, AUXILIARY JACK, USB PORT AND Bluetooth®

• (STD)

PREFERRED EQUIPMENT GROUP

• includes standard equipment

• ARC WHITE
• PIO MIRROR OUTSIDE LEFT HAND AND RIGHT HAND HEATED DUAL REMOTE 17 HEADS
• TRANSMISSION 6-SPEED AUTOMATIC 6L90-E HYDRA-MATIC WITH LOCK-UP CONVERTER AND OVERDRIVE. Ratios: Gear and Ratios 4.027 2.364 1.532 1.152 0.852 0.667 Rev. 3.064:1 (STD)
• PIO SEAT-COVER PROTECTOR
• ENGINE VORTEC 6.0L V8 SFI GMPT-V8 8 CYLINDER V BLOCK FOUR CYCLE OVERHEAD VALVE WATER COOLED Vortec 6.0L SFI V8 297 hp [221.5 kW] @ 4300 rpm 372 lb-ft of torque [504.0 N-m] @ 4000 rpm. Electronically-controlled sequential fuel injection. Six bolt main cap design for heavy-duty performance. Engine Control Module (ECM) and Transmission Control Module (TCM) engine control system. Engine cruise control engine oil cooler High Idle Mode (1200 rpm) (STD)
• VERY DARK PEWTER CLOTH SEAT TRIM
• SEAT FRONT HIGH BACK BUCKET DRIVER AND PASSENGER tricoat cloth covered reclining highback driver seat with single two occupant fold down passenger seat (STD)
• AUDIO SYSTEM AM/FM STEREO WITH CD PLAYER AUXILIARY JACK USB PORT AND Bluetooth® (STD)
• AXLE 4.30 RATIO
• PREFERRED EQUIPMENT GROUP includes standard equipment
• Preferred Equipment Group 1WT
• 2 Speakers
• AM/FM radio
• CD player
• Radio: AM/FM Stereo w/CD Player & Bluetooth®
• Air Conditioning
• Single Zone Manual Air Conditioning
• Power steering
• Power windows
• ABS brakes
• Front anti-roll bar

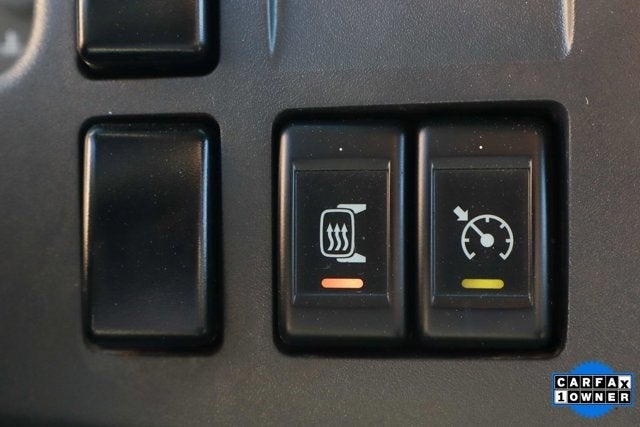

• Speed control
• Dual rear wheels
• Bumpers: body-color
• Driver door bin
• Overhead console
• Seat Cover Protector
• Tachometer
• Telescoping steering wheel
• Tilt steering wheel
• Trip computer
• Front Bucket Seats
• Front Center Armrest
• Front High Back Bucket Seats
• Tricoat Cloth Seat Trim

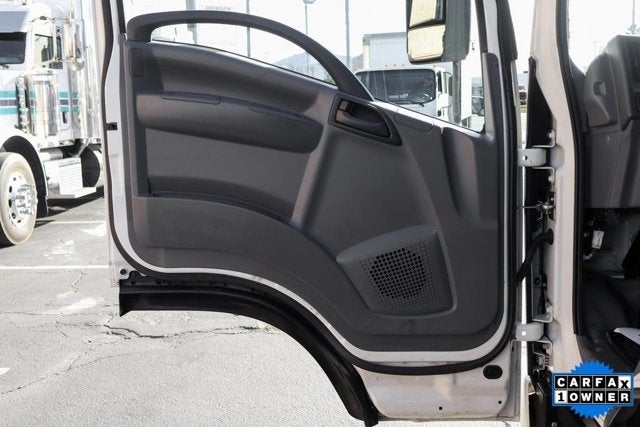

• Passenger door bin
• Wheels: 19.5 x 6.0 K Steel
• **CLEAN CARFAX**
• **ONE OWNER CARFAX**
• **RWD**
• **POWER WINDOWS**
• **POWER DOOR LOCKS**

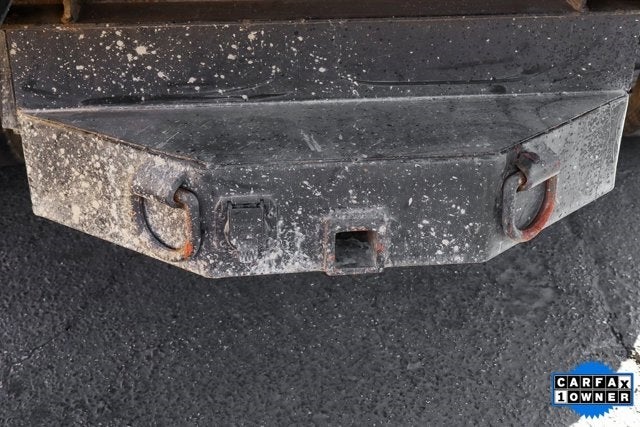

• **TOW PACKAGE**

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Drum - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.5 x
• Rear Drum Diam x Width (in): 12.6 x 3.94
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (3rd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 145
• Exterior Dimensions
• Body Length Default Value (ft): 14
• Cab to Axle (in): 110.0
• Cab to End of Frame (in): 153.1
• Frame Width, Rear (in): 33.5
• Front Bumper to Back of Cab (in): 70.90
• Ground Clearance, Front (in): 8.3
• Ground Clearance, Rear (in): 8.3
• Ground to Top of Frame (in): 33.0
• Height, Overall (in): 90.9
• Length, Overall (in): 224.0
• Overhang, Front (in): 48.40
• Overhang, Rear w/o bumper (in): 43.1
• Wheelbase (in): 132.50
• Width, Max w/o mirrors (in): 81.3
• Frame
• Frame RBM (N/A): 316800
• Frame Strength (lbs): 44000
• Frame Thickness (in): 8.50 X 2.76 X 0.24
• Frame Type: Ladder-Type C-Section
• Sect Modulus Rails Only (in³): 7.20
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 30.0
• Fuel Tank Location: Frame Rail
• Interior Dimensions
• Front Head Room (in): 38.40
• Front Hip Room (in): 67.70
• Front Leg Room (in): 29.50
• Front Shoulder Room (in): 70.70
• Passenger Capacity: 3
• Medium Duty Performance
• Torque : Clutch Engage (ft-lbs)
• Torque Converter: 2.6
• Steering
• Steering Ratio (:1), At Lock: 18.8 - 20.9
• Steering Ratio (:1), On Center: 18.8 - 20.9
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 40.7
• Turning Diameter - Wall to Wall (ft): 46.0
• Summary
• Body Style: Regular Cab Chassis Cab

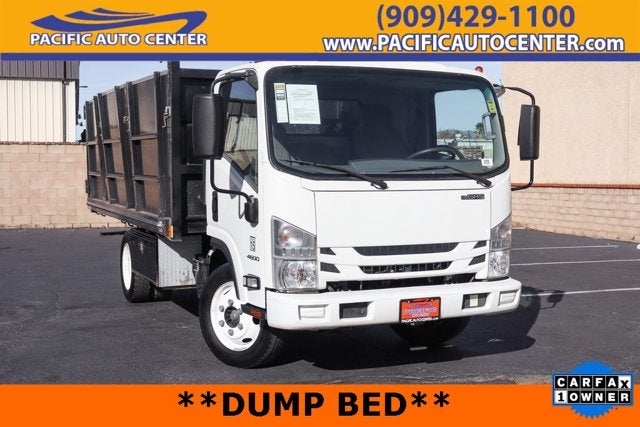

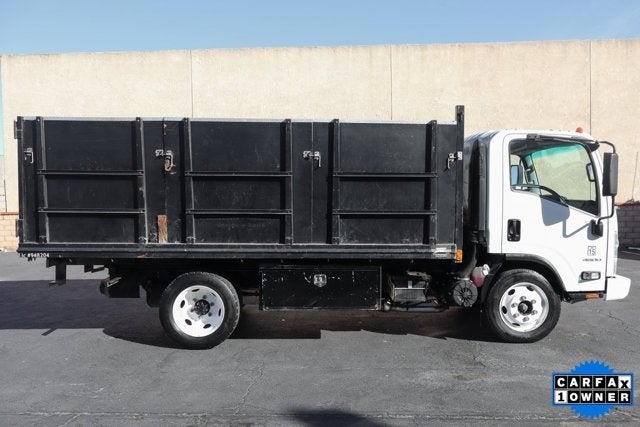

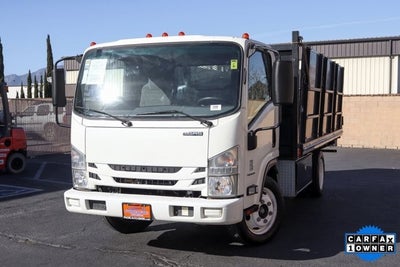

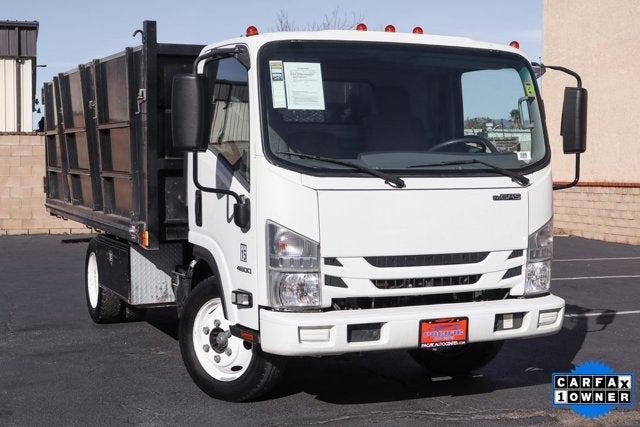

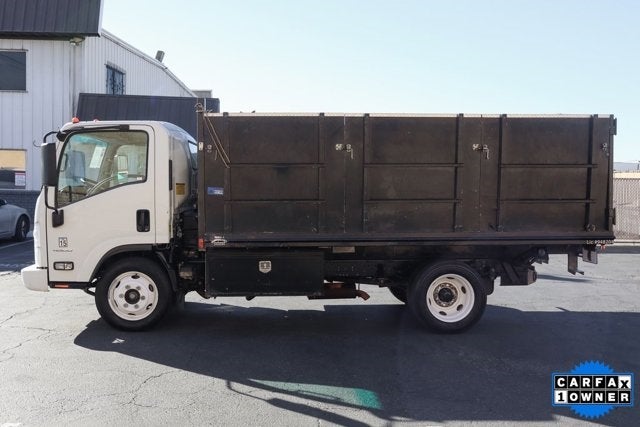

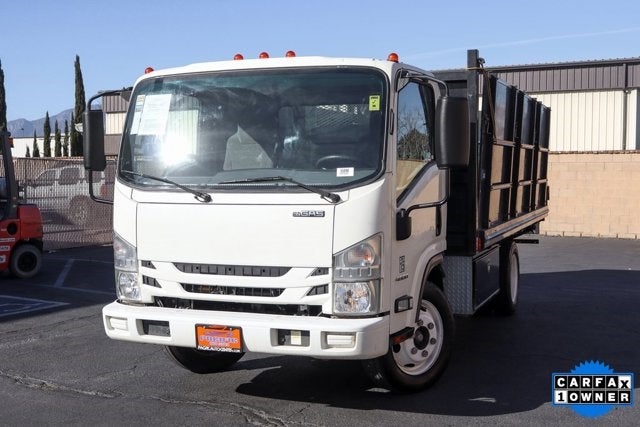

• Vehicle Name: Chevrolet 4500 LCF Gas
• Suspension
• Axle Capacity - Front (lbs): 6630
• Axle Capacity - Rear (lbs): 11020
• Axle Ratio (:1) - Rear: 4.30
• Axle Type - Front: I-Beam
• Axle Type - Rear: Full-Floating
• Shock Absorber Diameter - Front (mm): 42.0
• Shock Absorber Diameter - Rear (mm): 42.0
• Spring Capacity - Front (lbs): 8440
• Spring Capacity - Rear (lbs): 12900
• Stabilizer Bar Diameter - Front (in): 1.65
• Suspension Type - Front: Semi Elliptical Spring
• Suspension Type - Rear: Multi-Leaf Spring

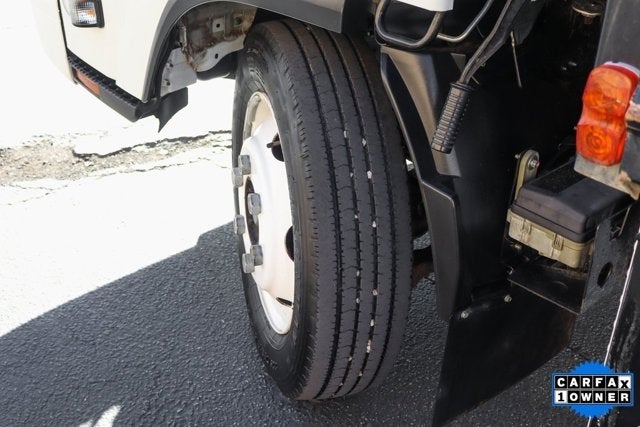

• Tires
• Front Tire Capacity (lbs): 6630
• Front Tire Order Code: 2TC

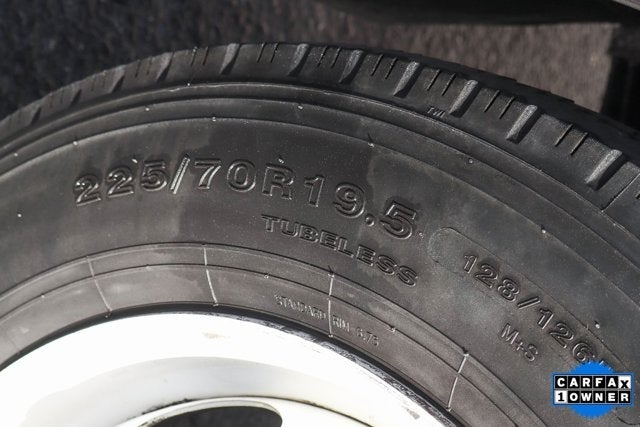

• Front Tire Size: 225/70R19.5
• Number Of Tires Front: 2
• Number Of Tires Rear: 4
• Rear Tire Capacity (lbs): 12460
• Rear Tire Order Code: 3TC
• Rear Tire Size: 225/70R19.5
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Vehicle
• Number of Passenger Doors: 2
• Weight Information
• Curb Weight - Front (lbs): 3497
• Curb Weight - Rear (lbs): 1921
• Gross Axle Wt Rating - Front (lbs): 6630
• Gross Axle Wt Rating - Rear (lbs): 11020
• Gross Combined Wt Rating (lbs): 20500
• Gross Vehicle Weight Rating Cap (lbs): 14500

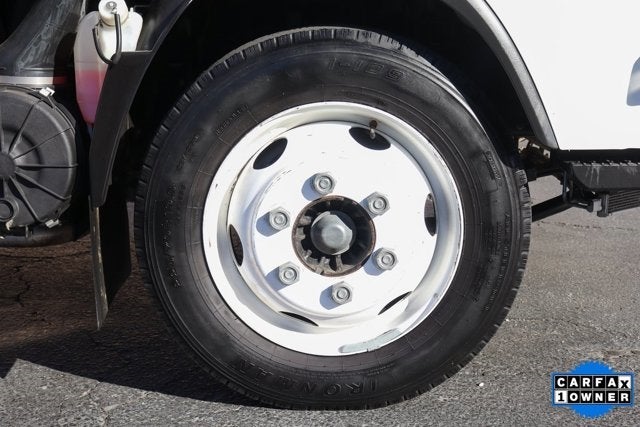

• Wheels
• # of Bolt Holes - Front: 6
• # of Bolt Holes - Rear: 6
• Front Bolt Pattern: 6 Hole JIS 8.75"
• Front Wheel Material: Steel
• Front Wheel Offset (mm): 127
• Front Wheel Size (in): 19.5 x 6.0
• Rear Bolt Pattern: 6 Hole JIS 8.75"
• Rear Wheel Material: Steel
• Rear Wheel Offset (mm): 127
• Rear Wheel Size (in): 19.5 x 6.0
