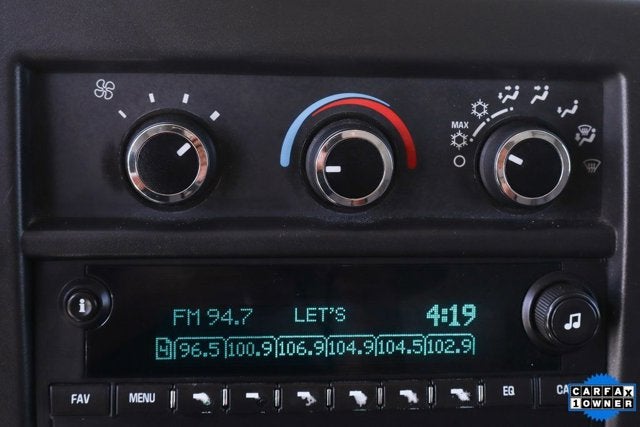

• Air conditioning, single-zone manual (Not available with (R6G) air conditioning delete.)
• Assist handles, driver and right-front passenger

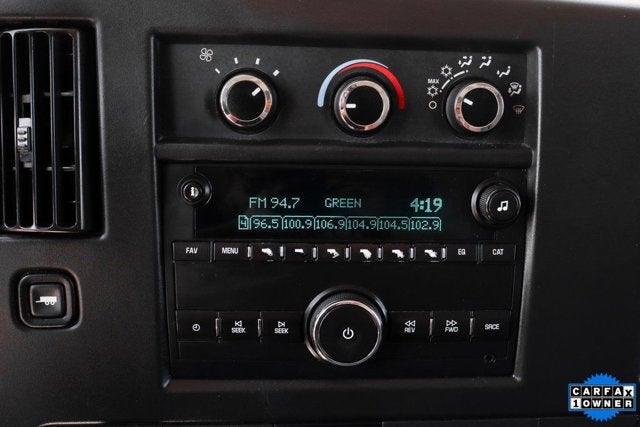

• Audio system, AM/FM stereo with MP3 player seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers (Not available with (U2K) SiriusXM Satellite Radio or (YF1) RV Package.)
• Floor covering, Black rubberized-vinyl front
• Headliner, cloth, over driver and passenger
• Heater and defogger with front and side window defoggers

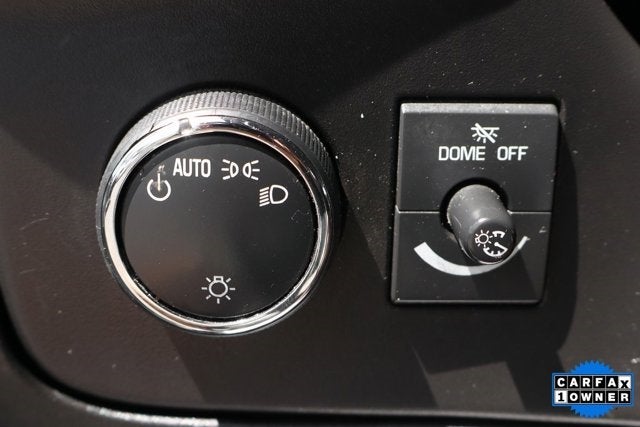

• Lighting, interior with dome light and door handle-activated switches

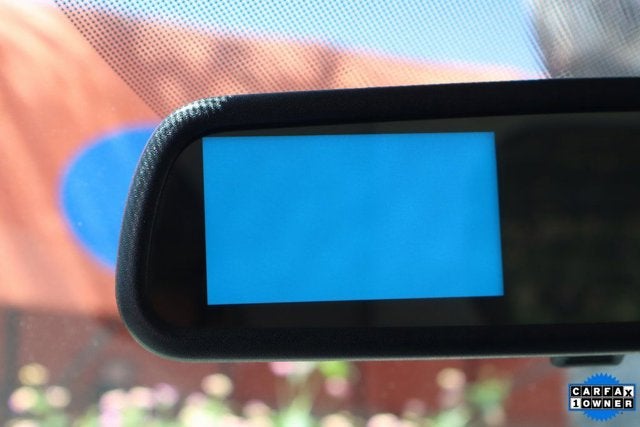

• Mirror, inside rearview (Included and only available with (UVC) Rear Vision Camera.)
• Oil life monitor
• Power outlet, 120-volt
• Seating arrangement, driver and front passenger high-back bucket includes head restraints and vinyl or cloth trim (Not available with (AJ3) driver-side only frontal air bag.)
• Theft-deterrent system, vehicle, PASS-Key III
• Visors, driver and front passenger, cloth, padded
• Warning tones, headlamp on and key-in-ignition

• Alternator, 150 amps
• Battery, 600 cold-cranking amps maintenance-free with rundown protection and retained accessory power
• Body, standard
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, ladder-type
• Fuel tank capacity, mid-frame and approximately 33 gallons (124.9L)
• Incomplete vehicle certification
• Rear axle, 3.42 ratio (Requires (R04) single rear wheel configuration.)
• Rear wheel drive
• Steering, power
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs
• Tow/haul mode selector, instrument panel-mounted

• Air bag deactivation switch, frontal, passenger-side (Not available with (AJ3) frontal, driver-side only air bag. Always use safety belts and the correct child restraints. NOTE: Passenger seat is removed when ordered. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, driver and right-front passenger, seat-mounted side-impact and head curtain side-impact (Included and only available with (C4M) 9900 lb. (4490 kg) GVWR or (C7A) 10,000 lb. (4536 kg) GVWR. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, frontal, driver and right-front passenger (Included and only available with (ZX2) driver and front passenger high-back bucket seats or (ZP0) driver and passenger temporary seats. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps
• Hill start assist
• Rear Vision Camera
• StabiliTrak, traction assistance and vehicle stability enhancement system
• Tire Pressure Monitor System (does not monitor spare tires) (Required with (C4M) 9900 lbs. (4490 kg) GVWR and (R04) single rear 4 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels.)

MIRROR, INSIDE REARVIEW

• (STD)

SEATS, FRONT BUCKET WITH CUSTOM CLOTH TRIM, HEAD RESTRAINTS AND INBOARD ARMRESTS

• Includes only driver high-back bucket seat with Custom Cloth trim when ordered with (ZX1) driver-only high-back bucket seating arrangement. Includes (BA3) engine cover console with swing-out bin.)

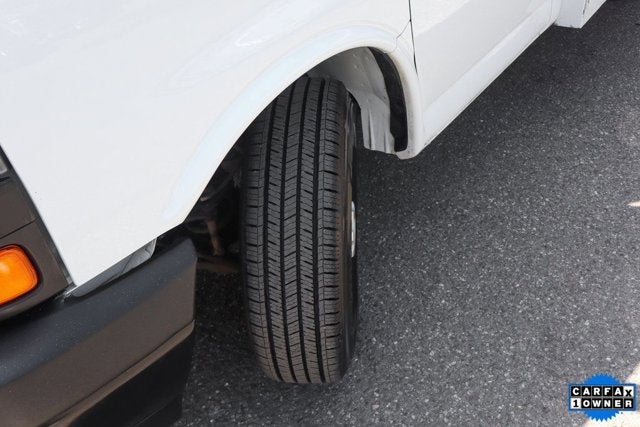

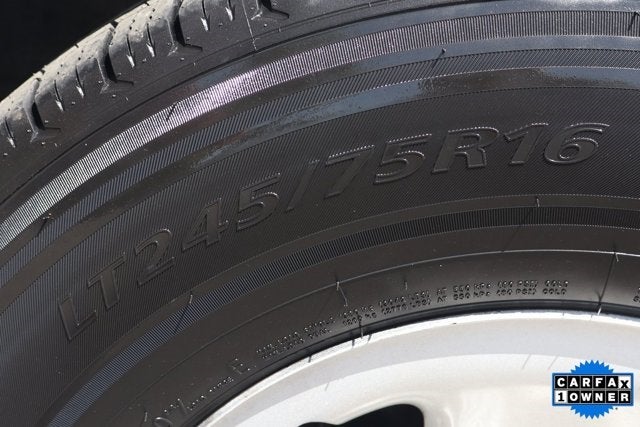

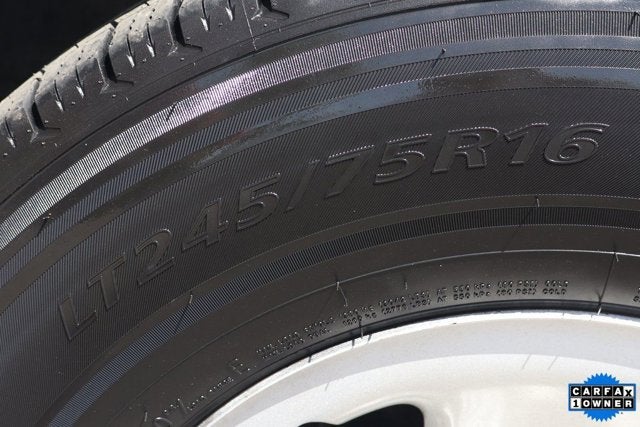

TIRES, FRONT LT245/75R16E ALL-SEASON, BLACKWALL

• (STD)

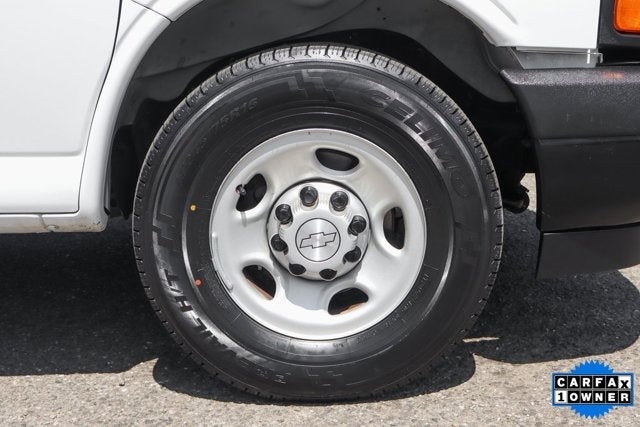

WHEELS, 4 -16" X 6.5" (40.6 CM X 16.5 CM), 8-LUG PAINTED STEEL, HEAVY-DUTY

• (STD)

3500 VAN PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

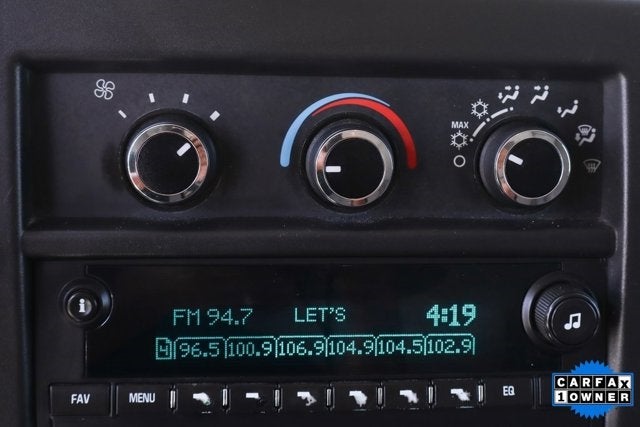

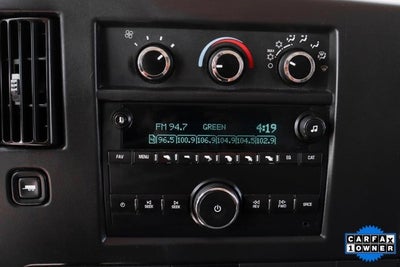

AUDIO SYSTEM, AM/FM STEREO WITH MP3 PLAYER

• seek-and-scan
• digital clock
• TheftLock
• random select
• auxiliary jack and 2 front door speakers (STD)

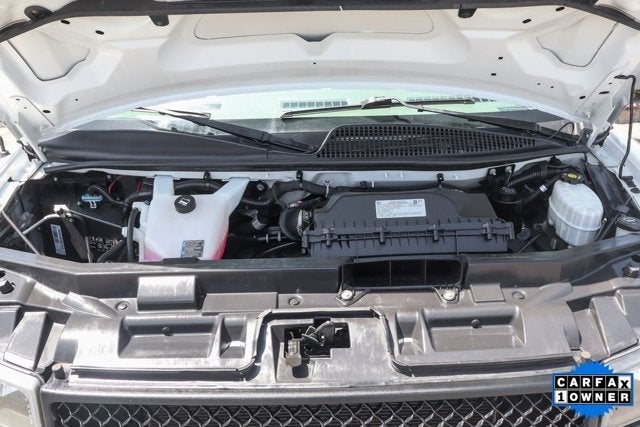

ENGINE, 4.3L V6

• with Direct Injection and Variable Valve Timing
• includes aluminum block construction (276 hp [206 kW] @ 5200 rpm
• 298 lb-ft of torque [404 Nm] @ 3900 rpm) (STD) Includes external engine oil cooler.

FUEL, ADDITIONAL 3-GALLONS

• 3 gallons of fuel in addition to normal assembly plant fill

REAR VISION CAMERA

• camera and cable shipped loose

WHEEL CONFIGURATION, REAR, SINGLE

• (STD)

TIRES, REAR LT245/75R16E ALL-SEASON, BLACKWALL

• (STD)

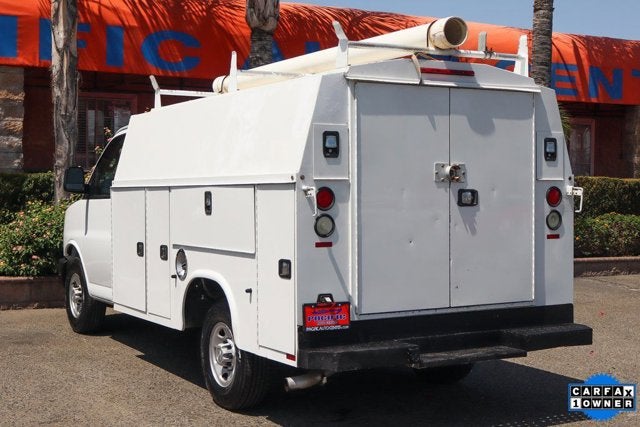

BODY, STANDARD

• (STD)

TRANSMISSION, 8-SPEED AUTOMATIC

• electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

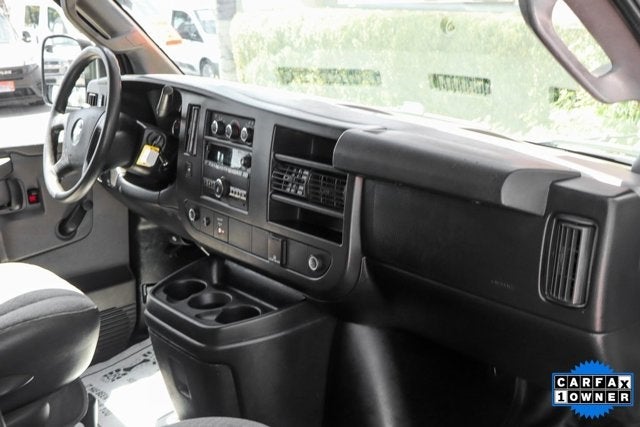

CONSOLE, ENGINE COVER

• with swing-out storage bin

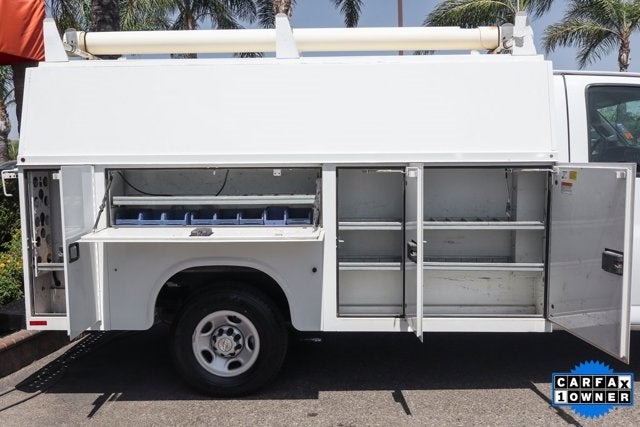

BODY, SOFT-MOUNT DONUT AND BOLT

• (for mounting Upfit body to chassis)

AIR CONDITIONING, SINGLE-ZONE MANUAL

• (STD)

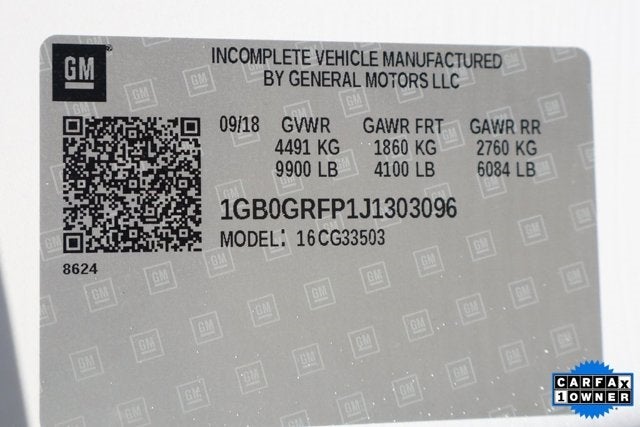

GVWR, 9900 LBS. (4490 KG)

• (STD) (Includes (R04) single rear wheel configuration.

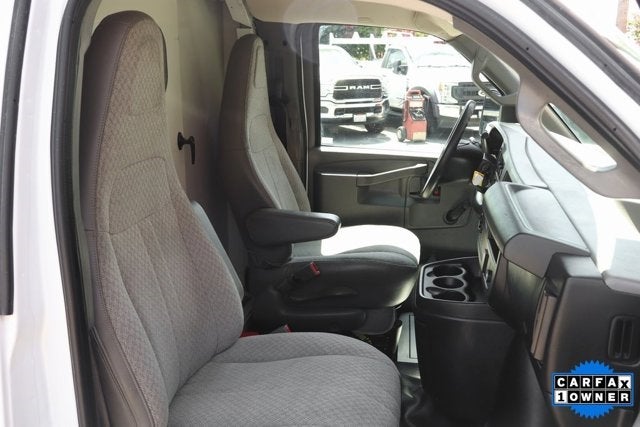

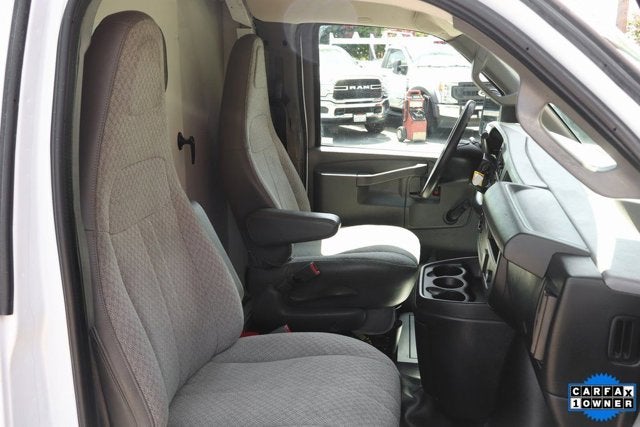

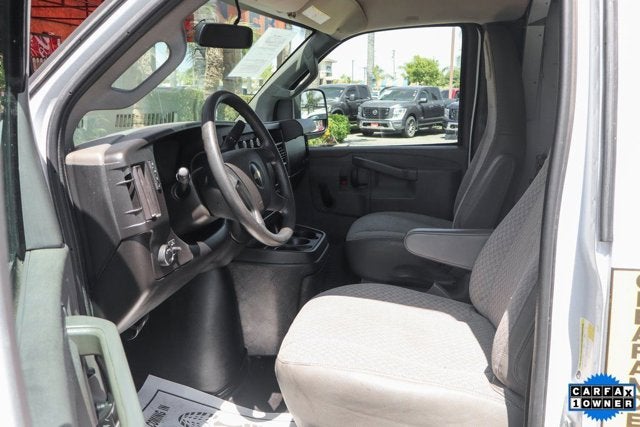

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGH-BACK BUCKET

• includes head restraints and vinyl or cloth trim (STD)

• MIRROR INSIDE REARVIEW (STD)
• SEATS FRONT BUCKET WITH CUSTOM CLOTH TRIM HEAD RESTRAINTS AND INBOARD ARMRESTS Includes only driver high-back bucket seat with Custom Cloth trim when ordered with (ZX1) driver-only high-back bucket seating arrangement. Includes (BA3) engine cover console with swing-out bin.)
• REAR AXLE 3.42 RATIO
• TIRES FRONT LT245/75R16E ALL-SEASON BLACKWALL (STD)
• ONSTAR DELETE
• WHEELS 4 -16 X 6.5 (40.6 CM X 16.5 CM) 8-LUG PAINTED STEEL HEAVY-DUTY (STD)
• 3500 VAN PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• SUMMIT WHITE
• AUDIO SYSTEM AM/FM STEREO WITH MP3 PLAYER seek-and-scan digital clock TheftLock random select auxiliary jack and 2 front door speakers (STD)
• ENGINE 4.3L V6 with Direct Injection and Variable Valve Timing includes aluminum block construction (276 hp [206 kW] @ 5200 rpm 298 lb-ft of torque [404 Nm] @ 3900 rpm) (STD) Includes external engine oil cooler.
• LICENSE PLATE KIT FRONT
• FUEL ADDITIONAL 3-GALLONS 3 gallons of fuel in addition to normal assembly plant fill
• REAR VISION CAMERA camera and cable shipped loose
• SUSPENSION REAR MULTI-LEAF IN LIEU OF THE STANDARD TAPERED LEAF
• WHEEL CONFIGURATION REAR SINGLE (STD)
• TIRES REAR LT245/75R16E ALL-SEASON BLACKWALL (STD)
• BODY STANDARD (STD)
• TRANSMISSION 8-SPEED AUTOMATIC electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• CONSOLE ENGINE COVER with swing-out storage bin
• PAINT SOLID
• FUEL FILL CAP WITH STAINLESS STEEL TETHER IN LIEU OF THE STANDARD PLASTIC TETHER
• MIRRORS OUTSIDE MANUAL BLACK DUAL PANE
• BODY SOFT-MOUNT DONUT AND BOLT (for mounting Upfit body to chassis)
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• GVWR 9900 LBS. (4490 KG) (STD) (Includes (R04) single rear wheel configuration.
• MEDIUM PEWTER CUSTOM CLOTH SEAT TRIM
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGH-BACK BUCKET includes head restraints and vinyl or cloth trim (STD)
• Preferred Equipment Group 1WT
• 2 Speakers
• AM/FM radio
• Radio: AM/FM Stereo w/MP3 Player & Digital Clock
• Air Conditioning
• Power steering
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Dual front side impact airbags
• Front anti-roll bar
• Front wheel independent suspension
• Low tire pressure warning
• Occupant sensing airbag
• Overhead airbag
• Passenger cancellable airbag
• Electronic Stability Control
• Exterior Parking Camera Rear
• Rear Vision Camera
• Delay-off headlights
• Fully automatic headlights
• Black Outside Manual Dual Pane Mirrors
• Body Soft-Mount Donut & Bolt
• Front License Plate Kit
• Single Rear Wheel Configuration

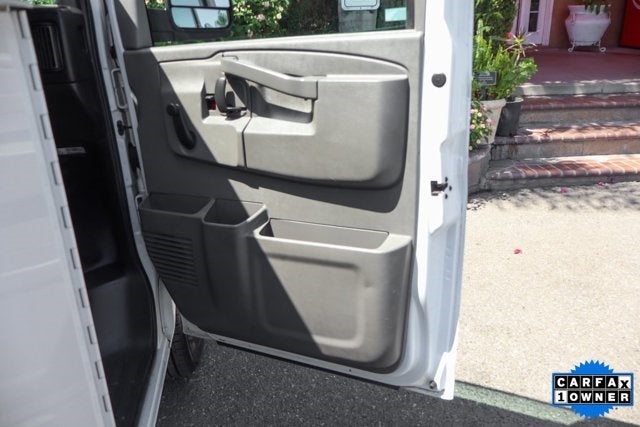

• Driver door bin
• Inside Rear-View Mirror
• Passenger seat mounted armrest
• Tachometer
• Trip computer
• Voltmeter
• Driver & Front Passenger High-Back Bucket Seats
• Driver's Seat Mounted Armrest
• Front Bucket Seats
• Reclining High-Back Bucket Seats w/Inboard Armrests
• Vinyl Seat Trim
• Engine Cover Console w/Swing-Out Storage Bin
• Passenger door bin
• Wheels: 16 x 6.5 8-Lug Painted Steel HD (4)
• Variably intermittent wipers
• 3.42 Rear Axle Ratio
• **CLEAN CARFAX**
• **ONE OWNER CARFAX**
• **RWD**

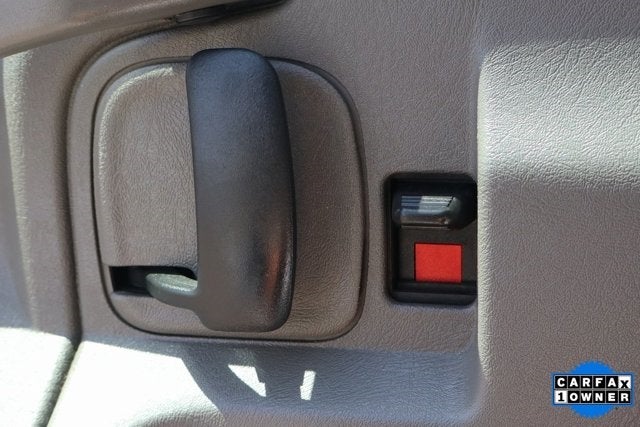

• **POWER DOOR LOCKS**

• Brakes
• Brake ABS System: 4-wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 150

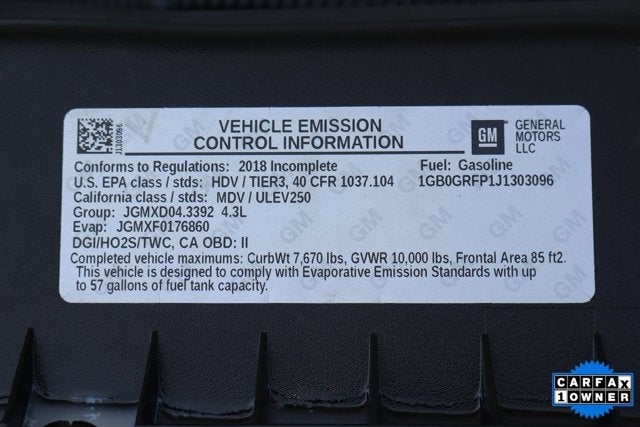

• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 80
• Cab to End of Frame (in): 148.5
• Frame Width, Rear (in): 34.8
• Front Bumper to Back of Cab (in): 98.7
• Ground Clearance, Front (in): 7.6
• Ground Clearance, Rear (in): 6.8
• Ground to Top of Frame (in): 23.31
• Height, Overall (in): 82.9
• Length, Overall w/o rear bumper (in): 246.7
• Overhang, Front (in): 39.7
• Wheelbase (in): 139
• Width, Max w/o mirrors (in): 79.1
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 33
• Fuel Tank Location: Mid-frame
• Interior Dimensions
• Passenger Capacity: 2
• Steering
• Steering Ratio (:1), On Center: 17.2
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 43.4
• Turning Diameter - Wall to Wall (ft): N/A
• Summary
• Body Code: ZW9
• Body Style: 139.0" WB

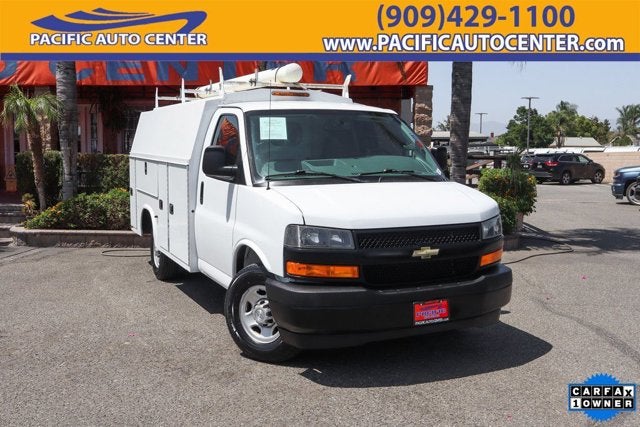

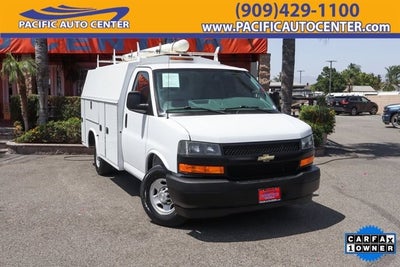

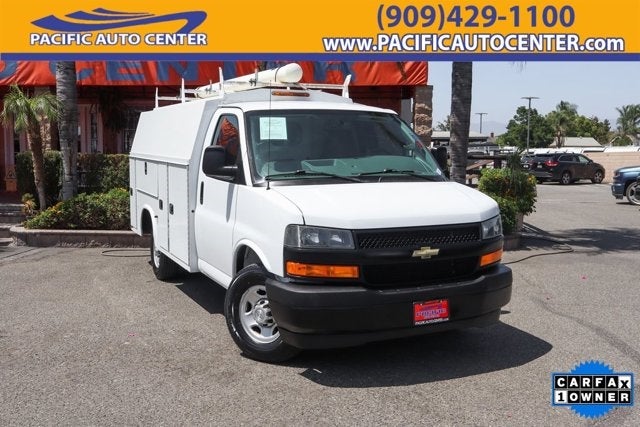

• Vehicle Name: Chevrolet Express Commercial Cutaway
• Suspension
• Axle Capacity - Front (lbs): 4100
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.42
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 6084
• Stabilizer Bar Diameter - Front (in): 1.38
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf

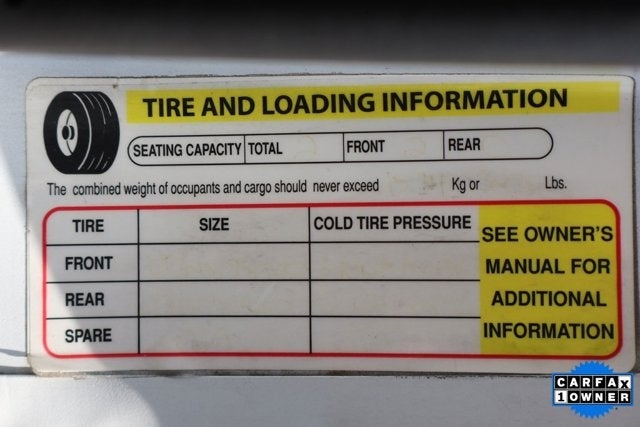

• Tires
• Front Tire Capacity (lbs): 2205
• Front Tire Order Code: XLP
• Front Tire Size: LT245/75R16E
• Rear Tire Capacity (lbs): 3042
• Rear Tire Order Code: YLP
• Rear Tire Size: LT245/75R16E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare

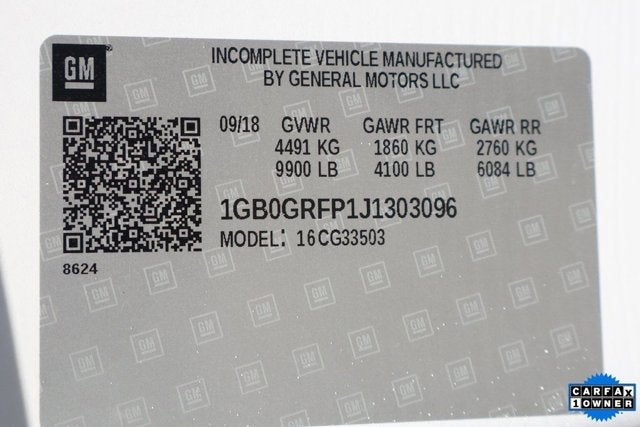

• Weight Information
• Curb Weight - Front (lbs): 2995
• Curb Weight - Rear (lbs): 1548
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 6084
• Gross Combined Wt Rating (lbs): 13000
• Gross Vehicle Weight Rating Cap (lbs): 9900
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 16 x 6.5
