• Air conditioning, single-zone manual (Not available with (R6G) air conditioning delete.)
• Assist handles, driver and right-front passenger
• Audio system, AM/FM stereo with MP3 player seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers (Not available with (YF1) RV Package.)
• Floor covering, Black rubberized-vinyl front
• Headliner, cloth, over driver and passenger
• Heater and defogger with front and side window defoggers

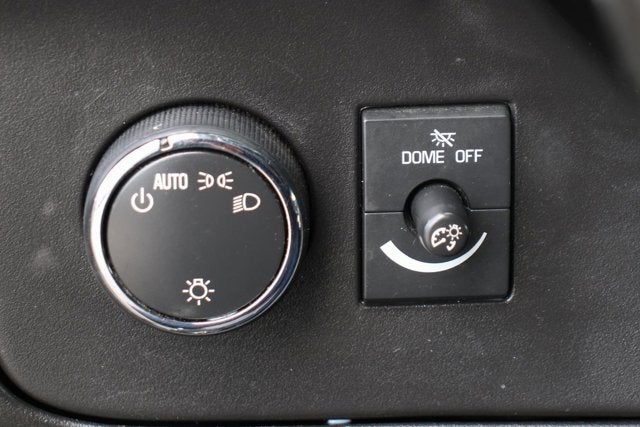

• Lighting, interior with dome light and door handle-activated switches
• Oil life monitor
• Power outlet, 120-volt

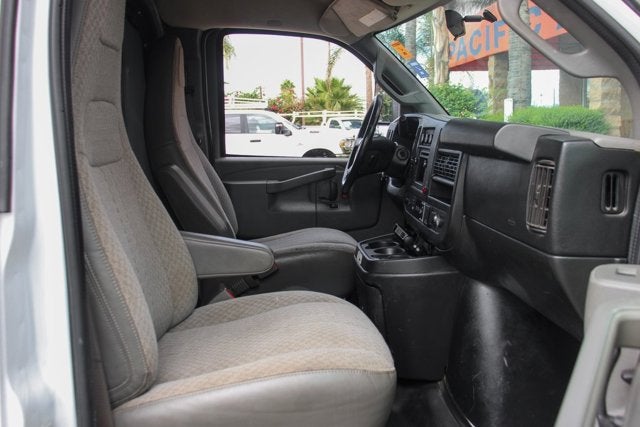

• Seating arrangement, driver and front passenger highback bucket includes head restraints and vinyl or cloth trim (Not available with (AJ3) driver-side only frontal air bag.)
• Theft-deterrent system, vehicle, PASS-Key III
• Visors, driver and front passenger, cloth, padded
• Warning tones, headlamp on and key-in-ignition

• Alternator, 150 amps
• Battery, 600 cold-cranking amps maintenance-free with rundown protection and retained accessory power
• Body, standard
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, ladder-type
• Fuel tank capacity, mid-frame and approximately 33 gallons (124.9L)
• Incomplete vehicle certification
• Rear wheel drive
• Steering, power
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs
• Tow/haul mode selector, instrument panel-mounted

• Air bag deactivation switch, frontal, passenger-side (Always use safety belts and the correct child restraints. NOTE: Passenger seat is removed when ordered. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, frontal, driver and right-front passenger (Included with (ZX2) driver and front passenger high-back bucket seats. Not available with (ZX1) driver only high-back bucket seat. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps
• StabiliTrak, traction assistance and vehicle stability enhancement system (Standard with (R04) single rear wheel configuration. Not available with (R05) dual rear wheel configuration.)
• Tire Pressure Monitor System (does not monitor spare tires) (Required with (C4M) 9900 lbs. (4490 kg) GVWR and (R04) single rear 4 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels.)

SEATS, FRONT BUCKET WITH CUSTOM CLOTH TRIM, HEAD RESTRAINTS AND INBOARD ARMRESTS

• Includes only driver high-back bucket seat with Custom Cloth trim when ordered with (ZX1) driver-only high-back bucket seating arrangement. Includes (BA3) engine cover console with swing-out bin.)

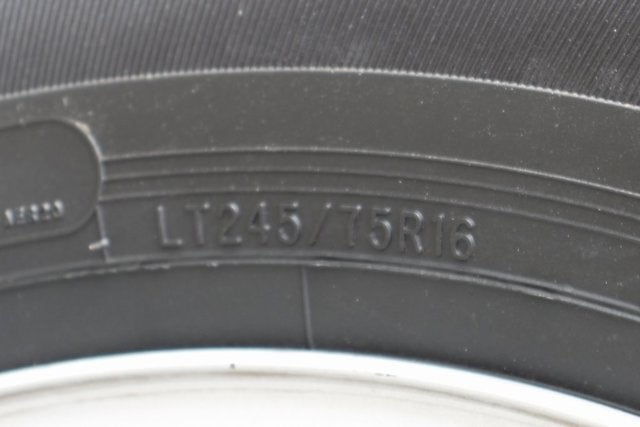

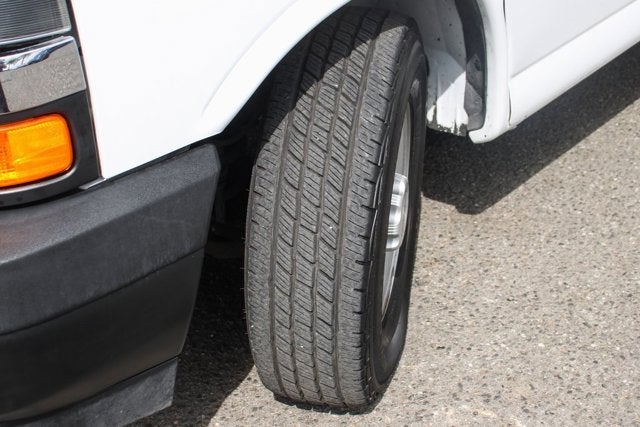

TIRES, FRONT LT245/75R16E ALL-SEASON, BLACKWALL

• (STD)

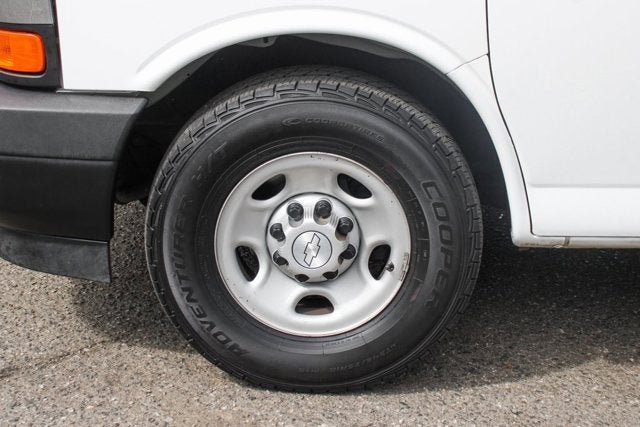

WHEELS, 4 -16" X 6.5" (40.6 CM X 16.5 CM), 8-LUG PAINTED STEEL, HEAVY-DUTY

• (STD)

3500 VAN PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

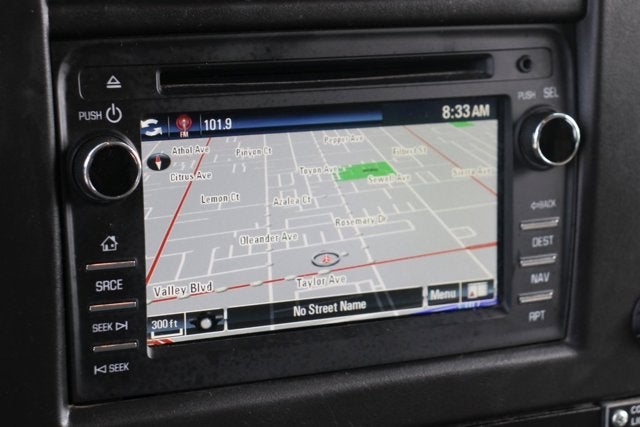

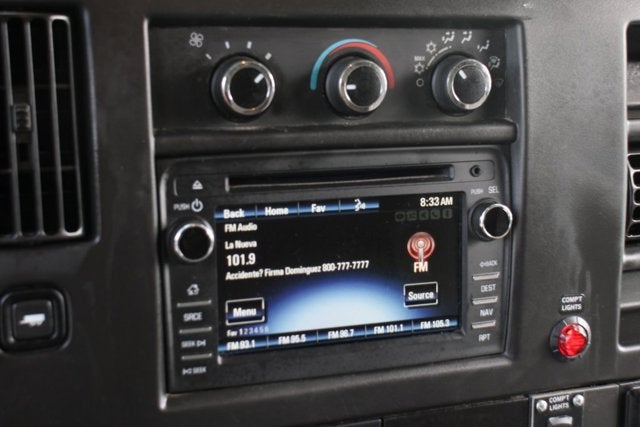

AUDIO SYSTEM, CHEVROLET MYLINK RADIO WITH NAVIGATION, 6.5" DIAGONAL COLOR TOUCH-SCREEN DISPLAY, AM/FM STEREO WITH CD PLAYER

• USB port
• includes Bluetooth® streaming audio for music and select phones; Hands-Free smartphone integration with Pandora and Stitcher; voice-activated technology for radio and phone

ONSTAR WITH 4G LTE

• and built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds
• includes 3GB or 3 months OnStar Data Trial (whichever comes first)

WHEEL CONFIGURATION, REAR, SINGLE

• (STD)

TIRES, REAR LT245/75R16E ALL-SEASON, BLACKWALL

• (STD)

BODY, STANDARD

• (STD)

CONSOLE, ENGINE COVER

• with swing-out storage bin

REMOTE KEYLESS ENTRY

• with 2 transmitters and remote panic button

NAVTRAFFIC.

• Avoid congestion before you reach it by enhancing your vehicle's navigation or entertainment system with NavTraffic. With detailed information on traffic speed
• accidents
• construction
• road closures and more
• you will get to your destination faster and more easily than ever before.

MIRRORS, OUTSIDE MID-STANCE SAIL PANEL MOUNTED

• Provides Velvac convex combination RH and LH outside rear view mirrors that are sail panel mounted with arms that provide a medium stance. Mirrors can be utilized with bodies that are up to 78 inches in width. Mirrors provide a 63.3 sq. inch flat glass positioned over a 30.1 sq. inch convex glass within a common head. Mirrors are shipped loose in vehicle.

BACKUP ALARM, 97 DECIBELS

• Alarm shipped loose to be installed by upfitter

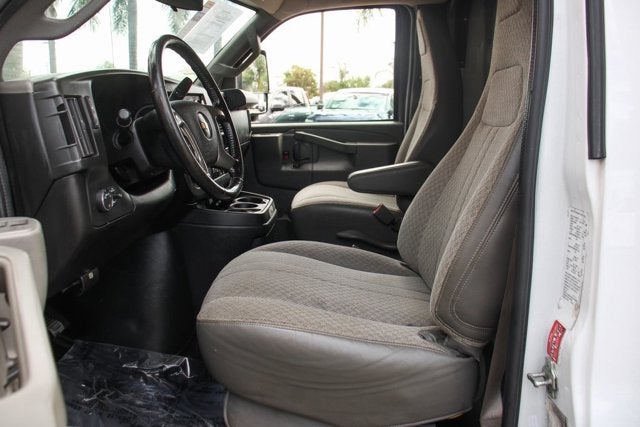

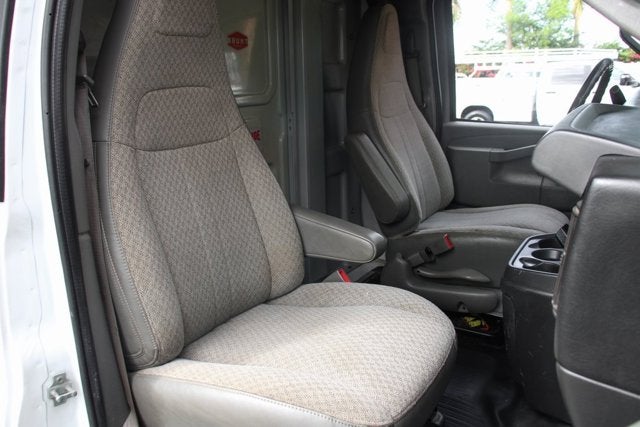

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGHBACK BUCKET

• includes head restraints and vinyl or cloth trim (STD)

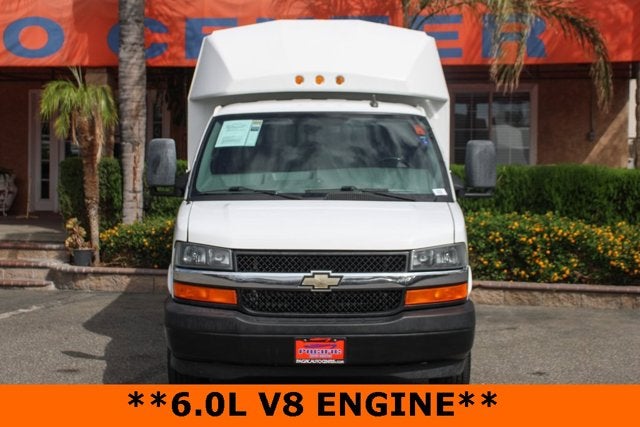

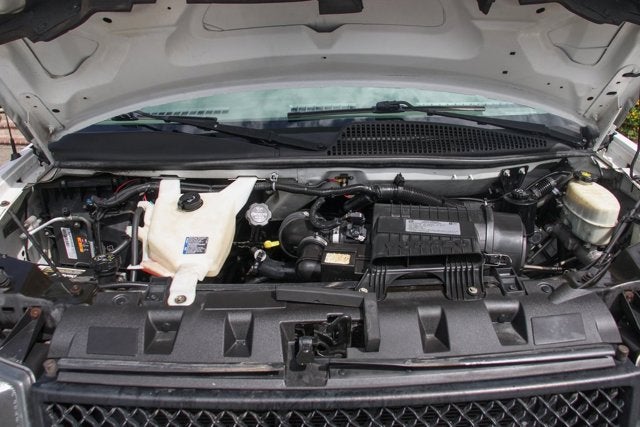

ENGINE, VORTEC 6.0L V8

• (342 hp [255.0 kW] @ 5400 rpm
• 373 lb-ft of torque [503.6 N-m] @ 4400 rpm) (Includes external oil cooler.

Bluetooth® FOR PHONE

• personal cell phone connectivity to vehicle audio system (subscription to OnStar services not required for operation).

VISORS, DRIVER AND FRONT PASSENGER, VINYL

• in lieu of standard cloth

DOOR LOCKS, POWER

• with lock-out protection

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY

• electronically controlled with overdrive and tow/haul mode and internal transmission oil cooler (STD)

BODY, SOFT-MOUNT DONUT AND BOLT

• (for mounting Upfit body to chassis)

AIR CONDITIONING, SINGLE-ZONE MANUAL

• (STD)

CONVENIENCE PACKAGE, POWER WINDOWS AND DOOR LOCKS

• (Includes (A31) power windows and (AU3) power door locks.

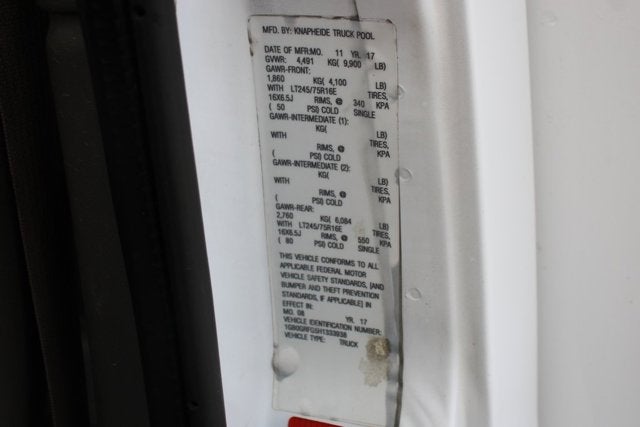

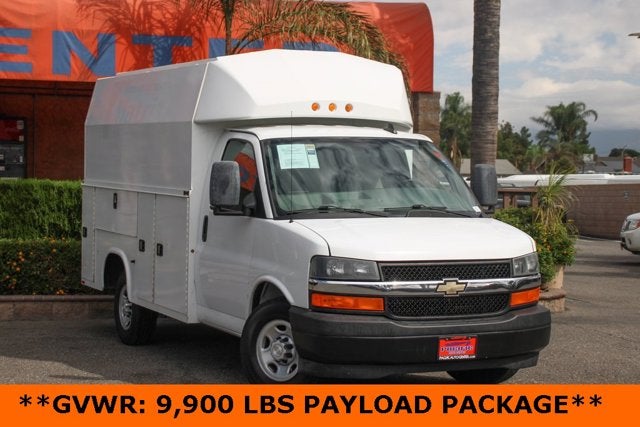

GVWR, 9900 LBS. (4490 KG)

• (STD) (Includes (R04) single rear wheel configuration.

KEY EQUIPMENT, TWO ADDITIONAL KEYS FOR SINGLE KEY SYSTEM

• Provides two additional spare keys for a total of (4).

CHROME APPEARANCE PACKAGE

• (Includes (V46) front chrome bumper and (V22) chrome grille with dual composite halogen headlamps.

BATTERY, HEAVY-DUTY 770 COLD-CRANKING AMPS

• maintenance-free with rundown protection and retained accessory power

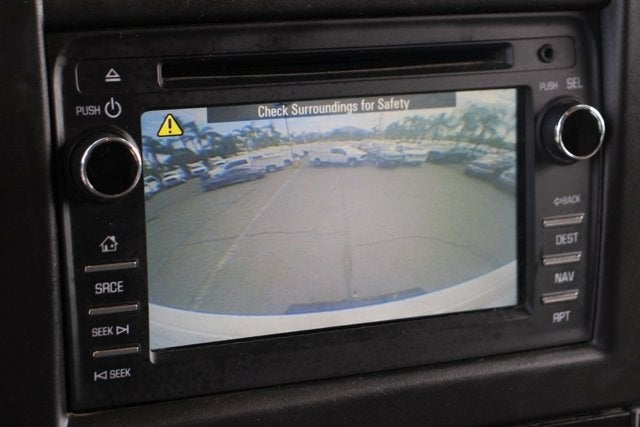

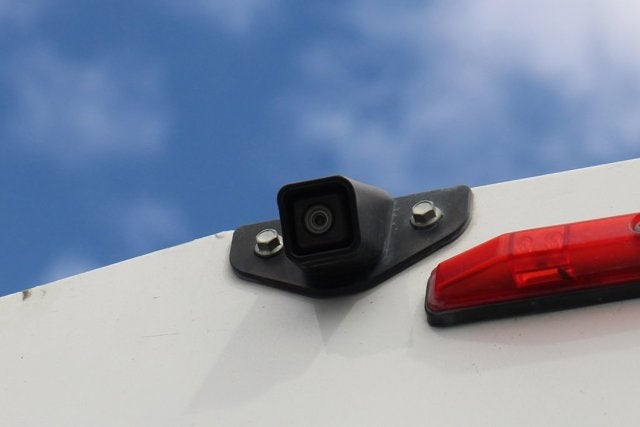

REAR VISION CAMERA

• camera and cable shipped loose Display integrated into navigation screen when (UI8) Chevrolet MyLink radio with Navigation is ordered.)

• DIFFERENTIAL HEAVY-DUTY LOCKING REAR
• SEATS FRONT BUCKET WITH CUSTOM CLOTH TRIM HEAD RESTRAINTS AND INBOARD ARMRESTS Includes only driver high-back bucket seat with Custom Cloth trim when ordered with (ZX1) driver-only high-back bucket seating arrangement. Includes (BA3) engine cover console with swing-out bin.)
• REAR AXLE 3.42 RATIO
• TIRES FRONT LT245/75R16E ALL-SEASON BLACKWALL (STD)
• STEERING WHEEL LEATHER WRAPPED
• WHEELS 4 -16 X 6.5 (40.6 CM X 16.5 CM) 8-LUG PAINTED STEEL HEAVY-DUTY (STD)
• CRUISE CONTROL

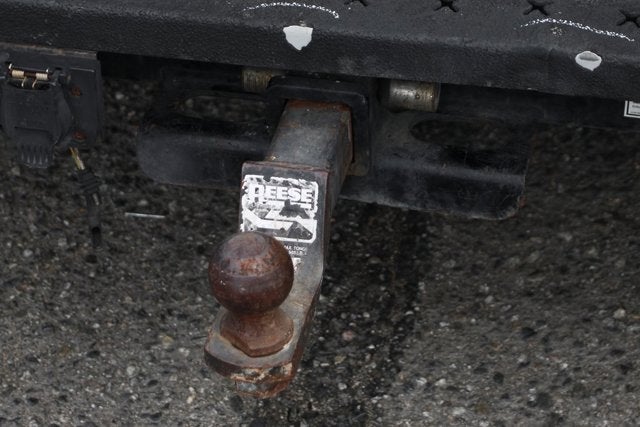

• TRAILERING PROVISIONS TRAILERING WIRE HARNESS ONLY
• 3500 VAN PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• AUDIO SYSTEM CHEVROLET MYLINK RADIO WITH NAVIGATION 6.5 DIAGONAL COLOR TOUCH-SCREEN DISPLAY AM/FM STEREO WITH CD PLAYER USB port includes Bluetooth® streaming audio for music and select phones; Hands-Free smartphone integration with Pandora and Stitcher; voice-activated technology for radio and phone
• SUMMIT WHITE
• TIRE SPARE LT245/75R16E ALL-SEASON BLACKWALL

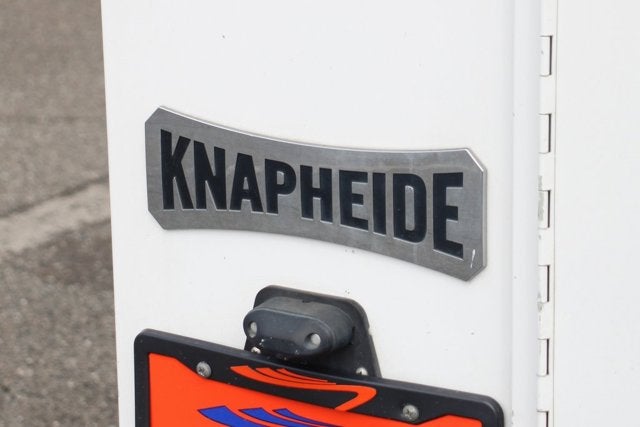

• SHIP THRU PRODUCED AT SPRINGFIELD ASSEMBLY AND SHIPPED TO KNAPHEIDE WENTZVILLE MO AND RETURNED TO WENTZVILLE ASSEMBLY FOR FINAL SHIPMENT
• OnStar Equipped (subscription required)

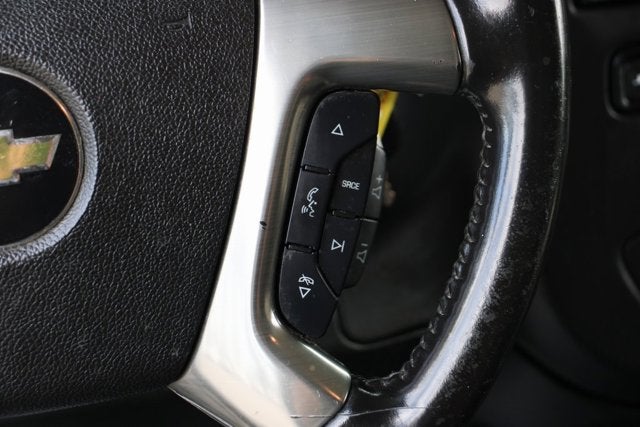

• STEERING WHEEL CONTROLS MOUNTED AUDIO CONTROLS
• SUSPENSION REAR MULTI-LEAF IN LIEU OF THE STANDARD TAPERED LEAF
• WHEEL CONFIGURATION REAR SINGLE (STD)
• TIRES REAR LT245/75R16E ALL-SEASON BLACKWALL (STD)
• BODY STANDARD (STD)
• ALTERNATOR 220 AMPS
• OnStar Equipped (subscription required)
• CONSOLE ENGINE COVER with swing-out storage bin
• REMOTE KEYLESS ENTRY with 2 transmitters and remote panic button
• AIR BAGS DRIVER AND RIGHT-FRONT PASSENGER SEAT-MOUNTED SIDE-IMPACT AND HEAD CURTAIN SIDE-IMPACT
• NAVTRAFFIC. Avoid congestion before you reach it by enhancing your vehicle's navigation or entertainment system with NavTraffic. With detailed information on traffic speed accidents construction road closures and more you will get to your destination faster and more easily than ever before.
• MIRRORS OUTSIDE MID-STANCE SAIL PANEL MOUNTED Provides Velvac convex combination RH and LH outside rear view mirrors that are sail panel mounted with arms that provide a medium stance. Mirrors can be utilized with bodies that are up to 78 inches in width. Mirrors provide a 63.3 sq. inch flat glass positioned over a 30.1 sq. inch convex glass within a common head. Mirrors are shipped loose in vehicle.
• BACKUP ALARM 97 DECIBELS Alarm shipped loose to be installed by upfitter
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGHBACK BUCKET includes head restraints and vinyl or cloth trim (STD)
• ENGINE VORTEC 6.0L V8 (342 hp [255.0 kW] @ 5400 rpm 373 lb-ft of torque [503.6 N-m] @ 4400 rpm) (Includes external oil cooler.
• PAINT SOLID
• Bluetooth® FOR PHONE personal cell phone connectivity to vehicle audio system (subscription to OnStar services not required for operation).
• VISORS DRIVER AND FRONT PASSENGER VINYL in lieu of standard cloth
• AUDIO SYSTEM FEATURE USB PORT
• DOOR LOCKS POWER with lock-out protection
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY electronically controlled with overdrive and tow/haul mode and internal transmission oil cooler (STD)
• BODY SOFT-MOUNT DONUT AND BOLT (for mounting Upfit body to chassis)
• MIRROR INSIDE REARVIEW MANUAL DAY/NIGHT
• BUMPER FRONT CHROME WITH STEP-PAD
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• HORN DUAL-NOTE HIGH AND LOW
• CONVENIENCE PACKAGE POWER WINDOWS AND DOOR LOCKS (Includes (A31) power windows and (AU3) power door locks.
• GVWR 9900 LBS. (4490 KG) (STD) (Includes (R04) single rear wheel configuration.
• GRILLE CHROME WITH DUAL COMPOSITE HALOGEN HEADLAMPS

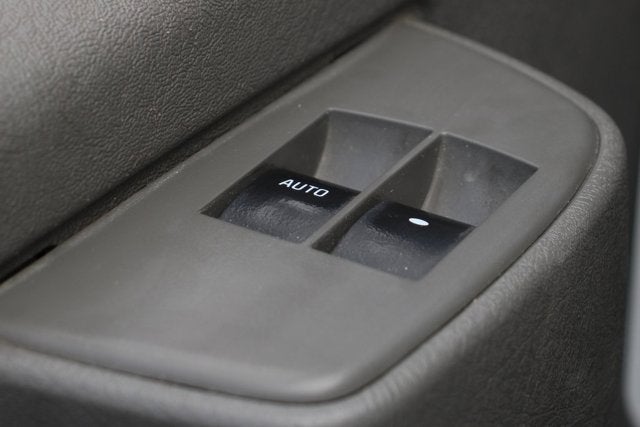

• WINDOWS POWER
• KEY EQUIPMENT TWO ADDITIONAL KEYS FOR SINGLE KEY SYSTEM Provides two additional spare keys for a total of (4).
• MEDIUM PEWTER CUSTOM CLOTH SEAT TRIM
• CONVENIENCE PACKAGE TILT-WHEEL AND (K34) CRUISE CONTROL
• CHROME APPEARANCE PACKAGE (Includes (V46) front chrome bumper and (V22) chrome grille with dual composite halogen headlamps.
• BATTERY HEAVY-DUTY 770 COLD-CRANKING AMPS maintenance-free with rundown protection and retained accessory power
• REAR VISION CAMERA camera and cable shipped loose Display integrated into navigation screen when (UI8) Chevrolet MyLink radio with Navigation is ordered.)

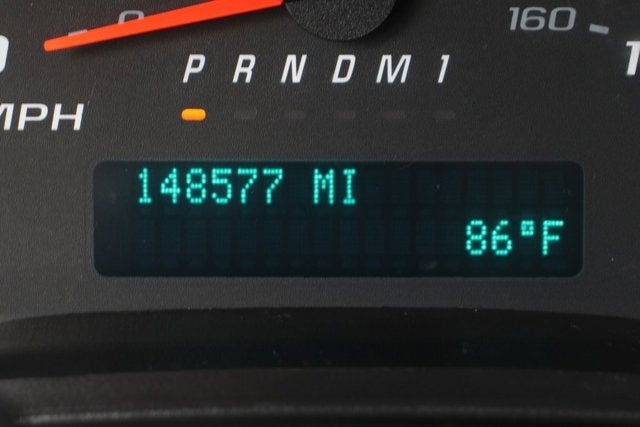

• OUTSIDE TEMPERATURE DISPLAY
• Chrome Appearance Package
• Convenience Package
• Power Convenience Package
• Preferred Equipment Group 1WT
• 2 Speakers
• AM/FM radio
• Radio: AM/FM Stereo w/MP3 Player & Digital Clock
• Radio: Chevrolet MyLink Audio System w/Nav
• USB Port
• Air Conditioning
• Bluetooth® For Phone
• Outside Temperature Display
• Power steering
• Power Windows
• Remote Keyless Entry
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Dual front side impact airbags
• Front anti-roll bar
• Front Chrome Bumper w/Step-Pad
• Front wheel independent suspension
• Low tire pressure warning
• Occupant sensing airbag
• Overhead airbag
• Passenger cancellable airbag
• Power Door Locks w/Lock-Out Protection
• 770 CCA Heavy-Duty Maintenance-Free Battery
• Electronic Stability Control
• Rear Vision Camera
• Delay-off headlights
• Dual Composite Halogen Headlamps
• Fully automatic headlights
• Cruise Control
• Heavy-Duty Locking Rear Differential
• 220 Amps Alternator
• Body Soft-Mount Donut & Bolt
• Chrome Grille
• High & Low Dual-Note Horn
• Single Rear Wheel Configuration
• Driver & Front Passenger Vinyl Visors

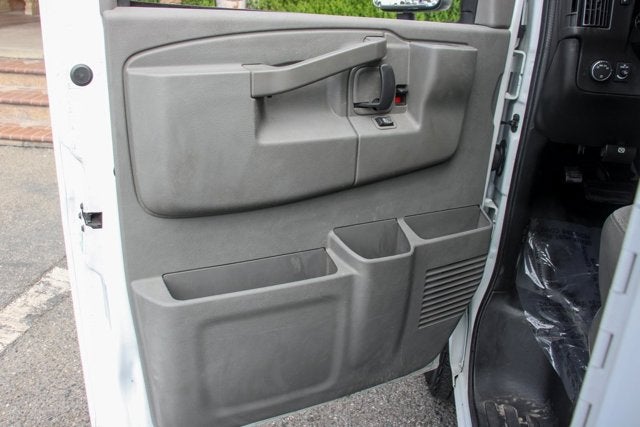

• Driver door bin

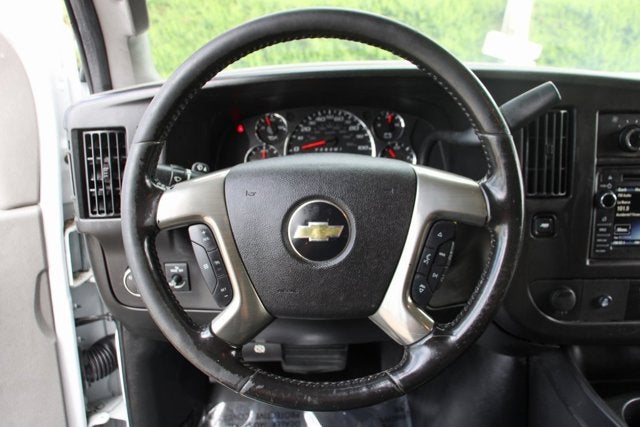

• Leather-Wrapped Steering Wheel
• Manual Day/Night Inside Rear-View Mirror
• NavTraffic
• OnStar 3 Month Guidance Plan
• OnStar 4G LTE
• OnStar Basic Plan For 5 Years
• Passenger seat mounted armrest

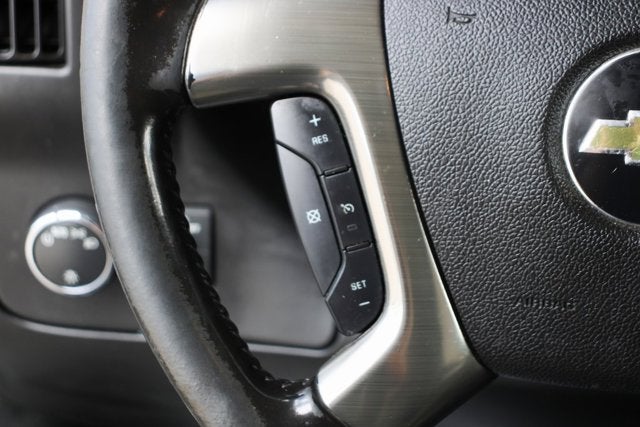

• Steering Wheel Mounted Audio Controls
• Tachometer
• Tilt Steering Wheel
• Trip computer
• Voltmeter
• Driver & Front Passenger High-Back Bucket Seats
• Driver's Seat Mounted Armrest
• Front Bucket Seats
• Reclining High-Back Bucket Seats w/Inboard Armrests
• Vinyl Seat Trim
• Engine Cover Console w/Swing-Out Storage Bin

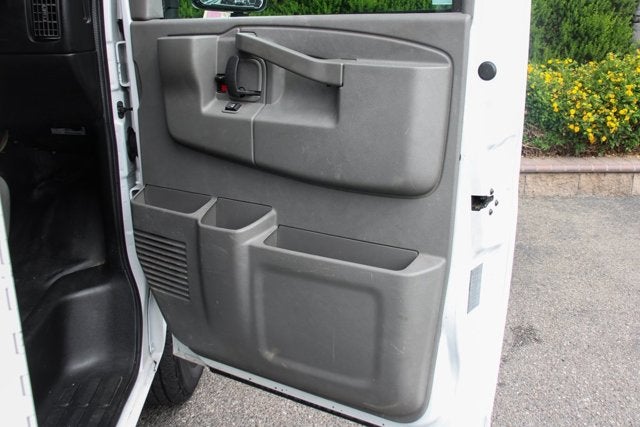

• Passenger door bin
• Trailering Wire Harness
• Wheels: 16 x 6.5 8-Lug Painted Steel HD (4)
• Variably intermittent wipers
• 3.42 Rear Axle Ratio
• **CLEAN ONE OWNER CARFAX**
• **RWD**
• **NAVIGATION SYSTEM**
• **POWER WINDOWS**
• **POWER DOOR LOCKS**
• **BACK-UP CAMERA**

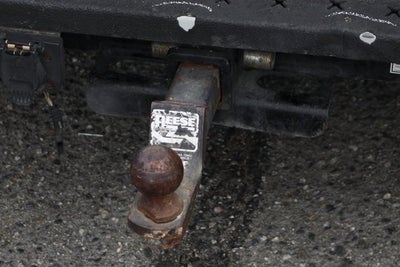

• **TOW PACKAGE**

• Brakes
• Brake ABS System: 4-wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 220
• Maximum Alternator Watts: N/A

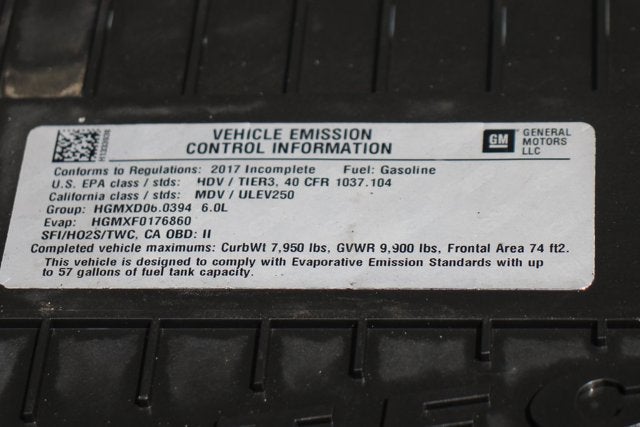

• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 80.00
• Cab to End of Frame (in): 148.50
• Frame Width, Rear (in): 34.80
• Front Bumper to Back of Cab (in): 98.70
• Ground Clearance, Front (in): 7.60
• Ground Clearance, Rear (in): 6.80
• Ground to Top of Frame (in): 23.31
• Height, Overall (in): 82.90
• Length, Overall w/o rear bumper (in): 246.70
• Overhang, Front (in): 39.70
• Wheelbase (in): 139.00
• Width, Max w/o mirrors (in): 79.1
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 33.0
• Fuel Tank Location: Mid-frame
• Interior Dimensions
• Passenger Capacity: 2
• Steering
• Steering Ratio (:1), At Lock: 17.2
• Steering Ratio (:1), On Center: 17.2
• Steering Type: Pwr
• Turning Diameter - Wall to Wall (ft): N/A
• Summary
• Body Code: ZW9
• Body Style: 139.0" WB
• Vehicle Name: Chevrolet Express Commercial Cutaway
• Suspension
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.42
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 6084
• Stabilizer Bar Diameter - Front (in): 1.38
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf

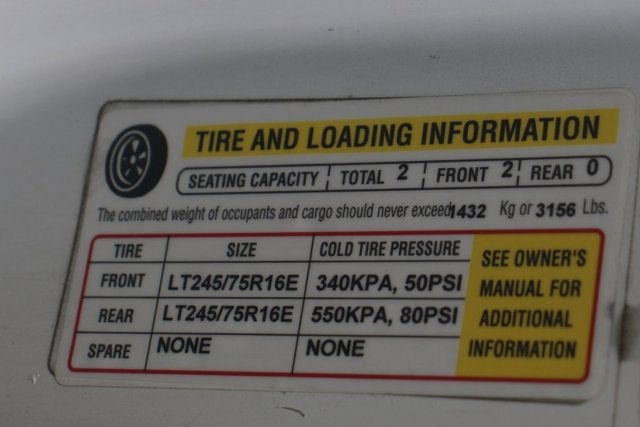

• Tires
• Front Tire Capacity (lbs): 2205
• Front Tire Order Code: XLP
• Front Tire Size: LT245/75R16E
• Rear Tire Capacity (lbs): 3042
• Rear Tire Order Code: YLP
• Rear Tire Size: LT245/75R16E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Spare Tire Order Code: ZLP
• Spare Tire Size: LT245/75R16E
• Weight Information
• Curb Weight - Front (lbs): 2993
• Curb Weight - Rear (lbs): 1503
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): 6084
• Gross Vehicle Weight Rating Cap (lbs): 9900
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 16 x 6.5
