• (4) air registers w/positive shut-off
• 11.5" day/night rearview mirror

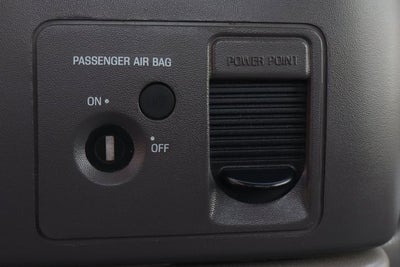

• Auxiliary pwr point
• Black vinyl full floor covering
• Black vinyl steering wheel
• Cigar lighter

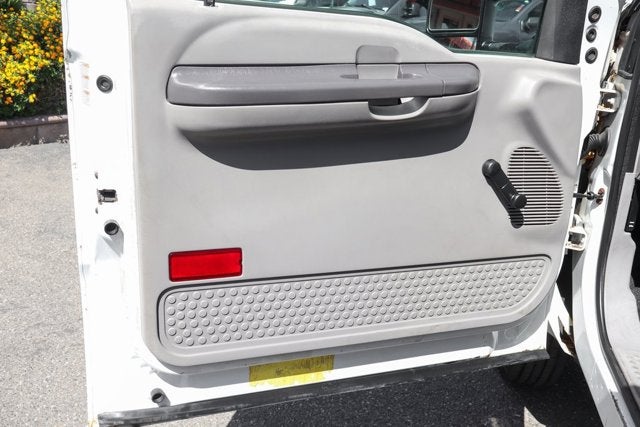

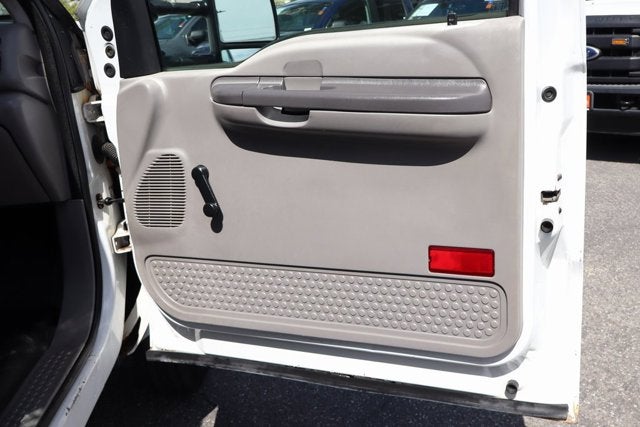

• Color-keyed door trim panel-inc: hard armrest, grab handle, reflector

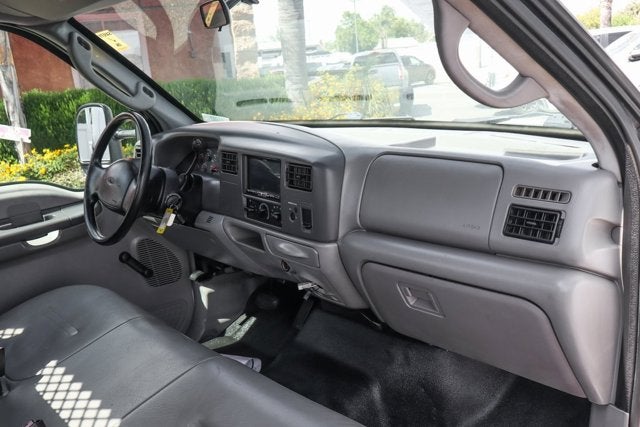

• Color-keyed instrument panel w/dual cupholders
• Color-keyed molded cloth headliner
• Color-keyed scuff plates
• Dual front color-keyed coat hooks

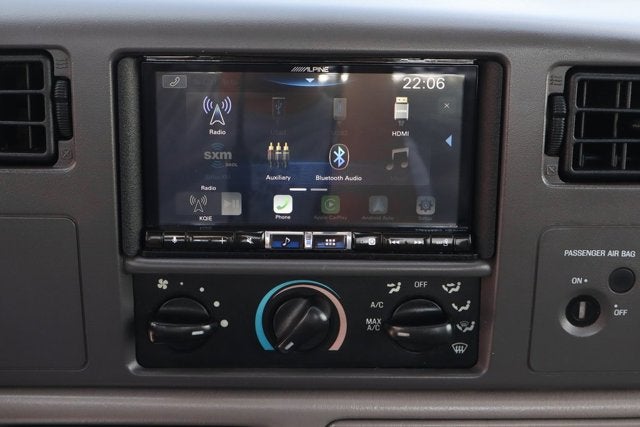

• Electronic AM/FM stereo-inc: (2) speakers
• Front door operated dome lamp w/time delay off
• Front passenger assist handle
• Gray fabric back panel cover

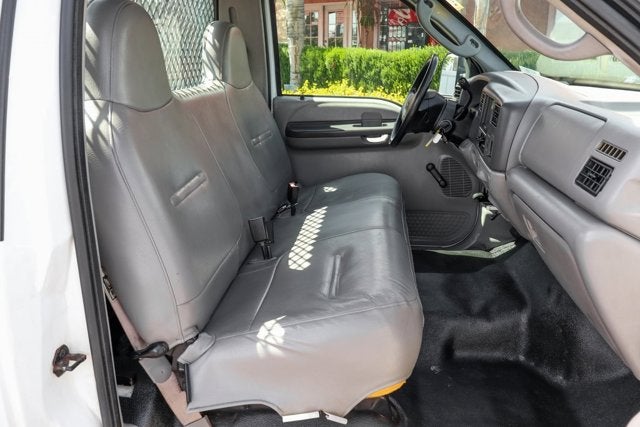

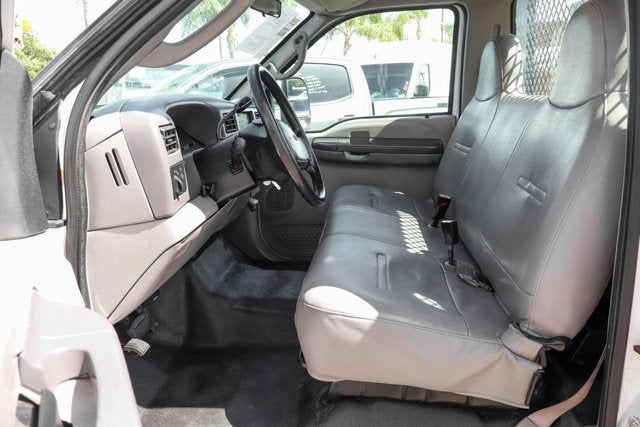

• HD vinyl bench seat w/outboard seating position integral headrests
• Inside hood release

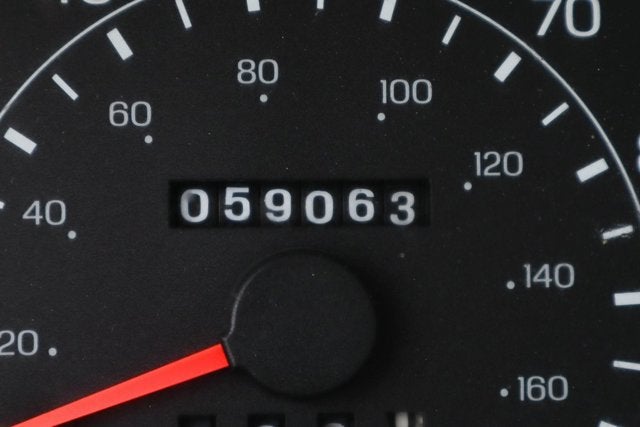

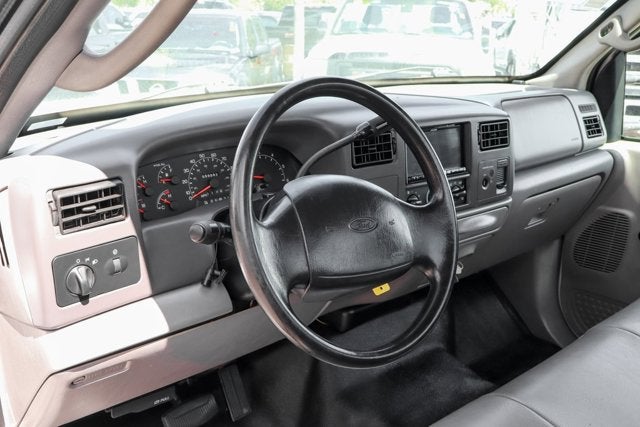

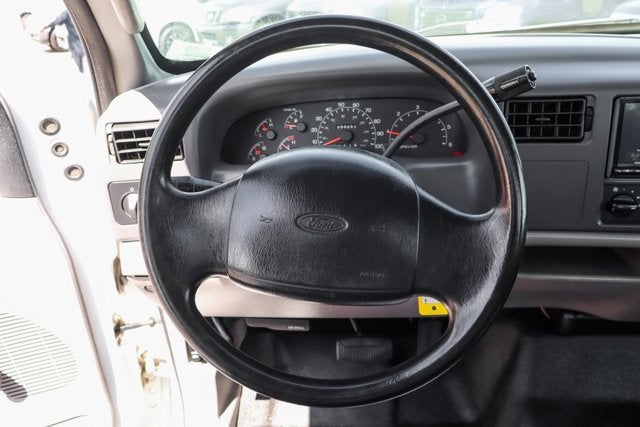

• Instrumentation-inc: tachometer, voltmeter, trip odometer, oil pressure/ coolant temp/fuel gauges, indicator lights
• Vinyl sun visors w/passenger vanity mirror

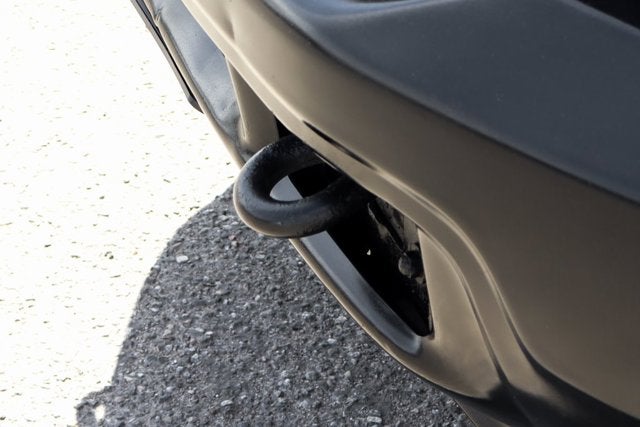

• (2) front tow hooks

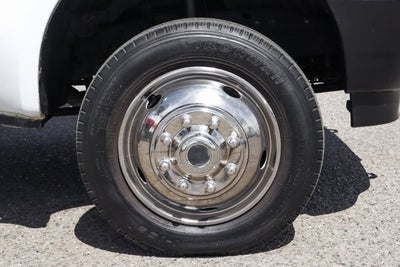

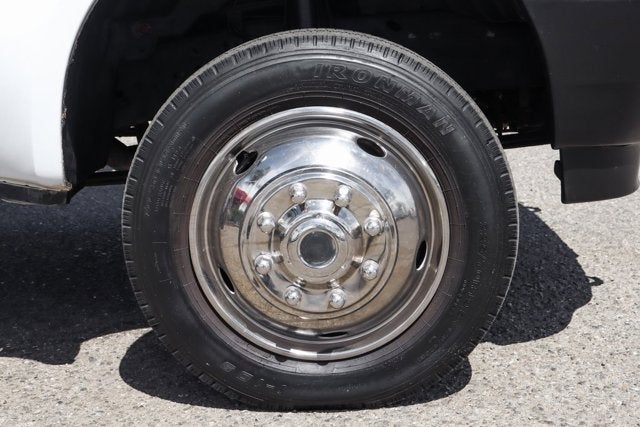

• (6) 19.5" x 6.0" steel wheels
• (6) 225/70R19.5F all-season SBR BSW tires

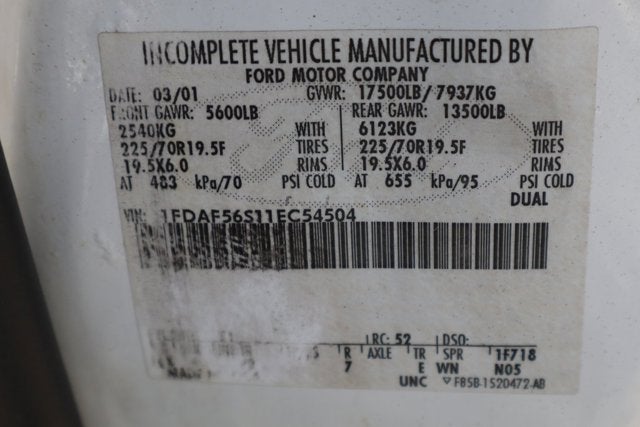

• 17,500# GVWR (5600 front/13,500 rear), springs (5600 front/13,500 rear), axles (6000 front/13,500 rear)
• 4-pin trailer tow wiring
• 4.88 rear axle ratio
• 40 gallon fuel tank-inc: auxiliary fuel tap
• 78 amp/hr (750 CCA) maintenance-free battery
• 95 amp alternator
• Front stabilizer bar
• HD gas shock absorbers
• Mono-beam front axle
• Pwr 4-wheel anti-lock disc brakes
• Pwr steering
• Rear wheel drive

• 4 wheel anti-lock brakes
• Color-keyed safety belts w/adjustable D-rings
• Driver/front passenger airbag supplemental restraint system
• Dual-note electric horn

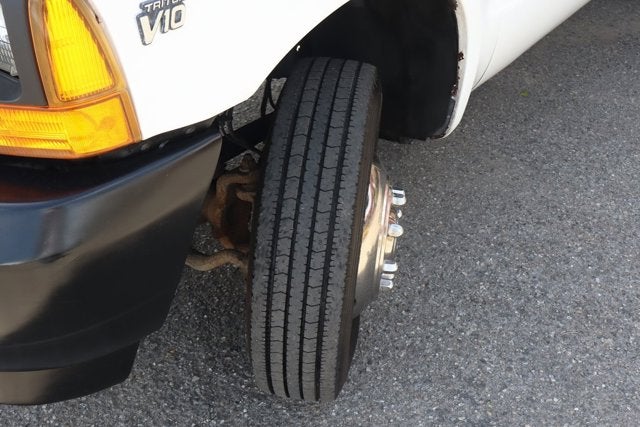

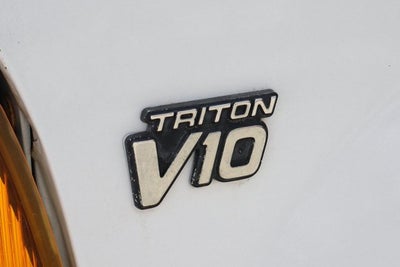

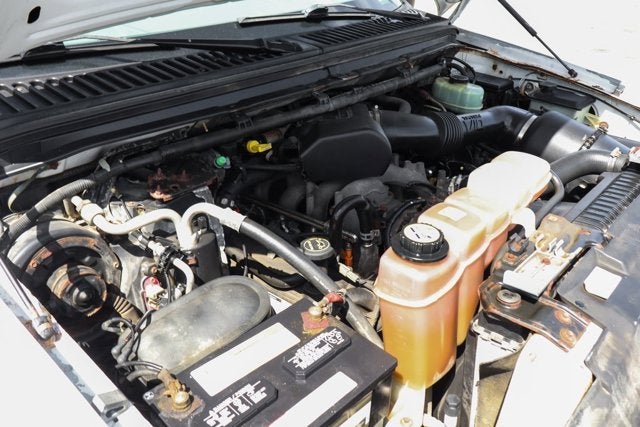

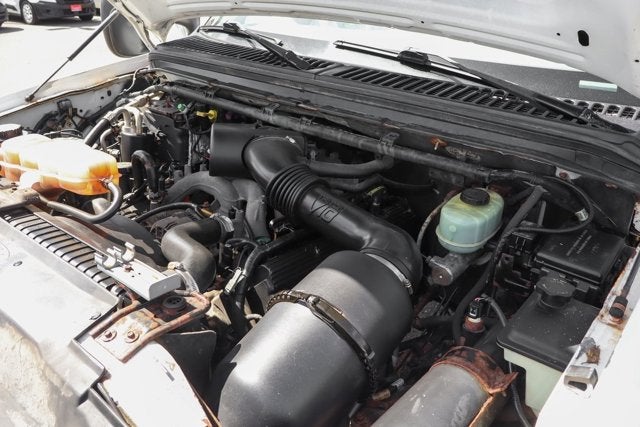

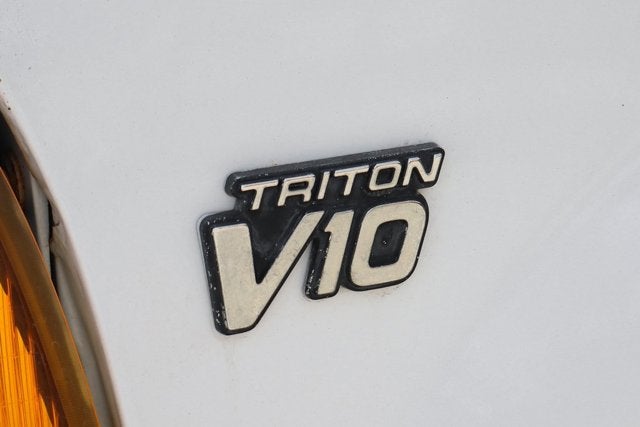

6.8L (415) SOHC SEFI V10 ENGINE

• (STD)

• Payload Package #1
• AM/FM radio
• Power steering
• 4-Wheel ABS Brakes
• 4-Wheel Disc Brakes
• ABS brakes
• Driver & Passenger Airbag
• Dual front impact airbags
• Front anti-roll bar

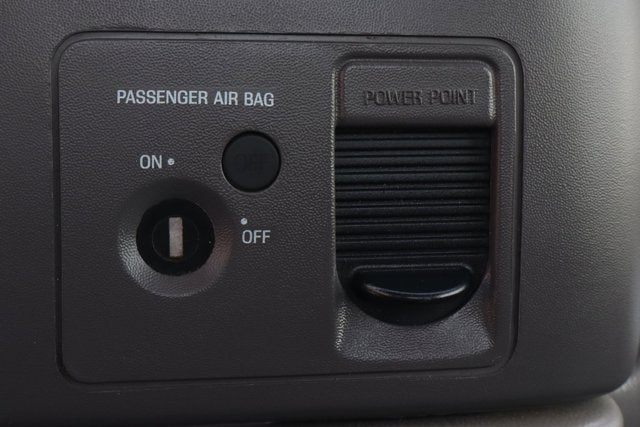

• Passenger cancellable airbag
• Rear anti-roll bar

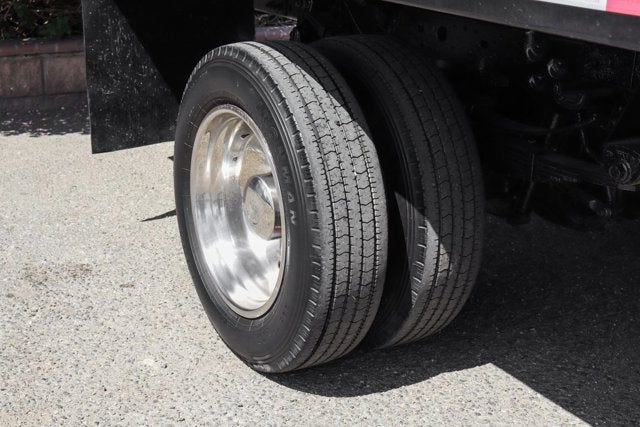

• Dual rear wheels
• Tachometer
• Voltmeter
• Tow Hooks
• Steel Wheels
• Variably intermittent wipers
• 4.88 Axle Ratio

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 95
• Maximum Alternator Watts: 1425
• Cooling System
• Total Cooling System Capacity (qts): 28.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Rear (lbs): 13,500
• Curb Weight - Front (lbs): 3505
• Curb Weight - Rear (lbs): 2567
• Gross Vehicle Weight Rating Cap (lbs): 17,500
• Gross Combined Wt Rating (lbs): 24,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5,000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10,000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1,000
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 18,300
• Suspension
• Suspension Type - Front: Multi-Leaf
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Rear (lbs): 13,500
• Axle Type - Front: Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 13,500
• Axle Ratio (:1) - Rear: 4.88
• Shock Absorber Diameter - Front (mm): 35.1
• Shock Absorber Diameter - Rear (mm): 35.1
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Power
• Brake ABS System: Four Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.53 x 0.47
• Rear Brake Rotor Diam x Thickness (in): 15.55 x 0.47
• Tires
• Front Tire Order Code: T91
• Rear Tire Order Code: T91

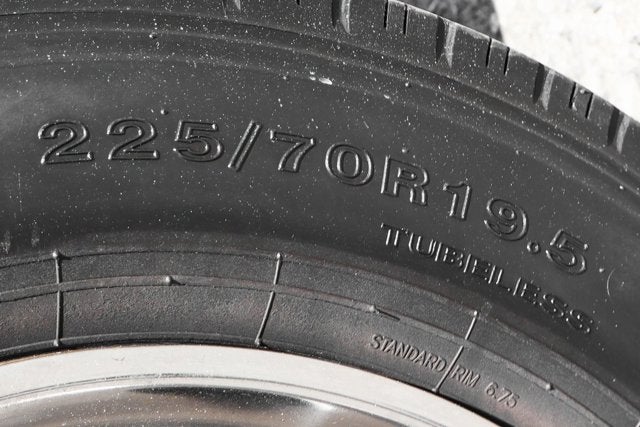

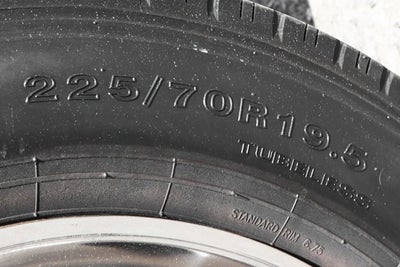

• Front Tire Size: 225/70R19.5F
• Rear Tire Size: 225/70R19.5F
• Front Tire Capacity (lbs): 3640
• Rear Tire Capacity (lbs): 3415
• Revolutions/Mile @ 45 mph - Front: 653
• Revolutions/Mile @ 45 mph - Rear: 653
• Wheels
• Front Wheel Size (in): 19.5 x 6.0
• Rear Wheel Size (in): 19.5 x 6.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: 20.3
• Turning Diameter - Curb to Curb (ft): 51.98
• Turning Diameter - Wall to Wall (ft): 54.55
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40.0
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 140.8
• Length, Overall w/o rear bumper (in): 225.7
• Width, Max w/o mirrors (in): 93.6
• Height, Overall (in): 81.7
• Overhang, Front (in): 37.4
• Overhang, Rear w/o bumper (in): 47.5
• Front Bumper to Back of Cab (in): 118.2
• Cab to Axle (in): 60.0
• Cab to End of Frame (in): 107.5
• Ground to Top of Frame (in): 24.1
• Frame Width, Rear (in): 34.2
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 41.3
• Front Leg Room (in): 40.7
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.4
• Summary

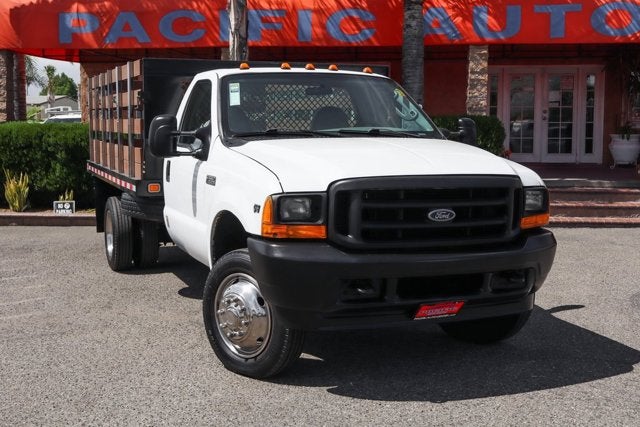

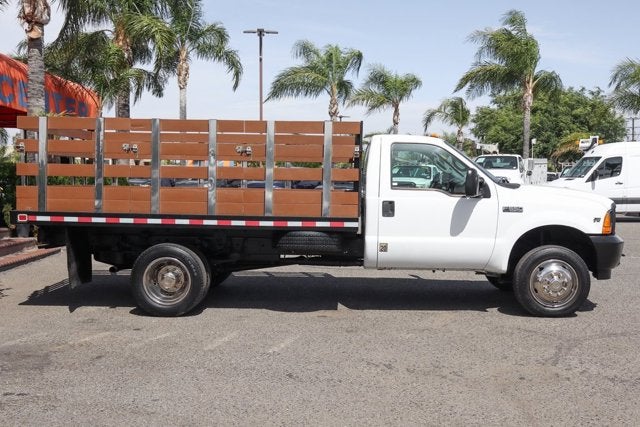

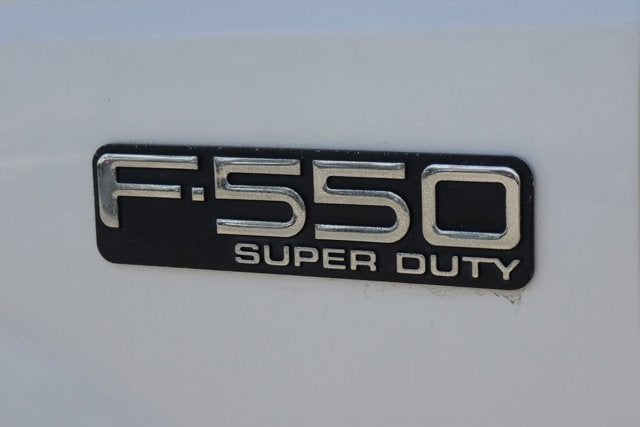

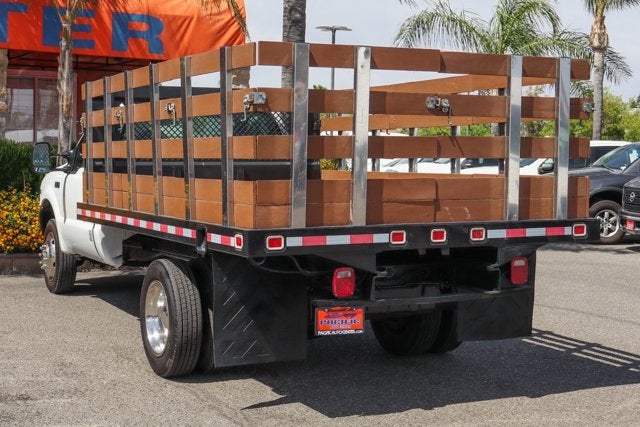

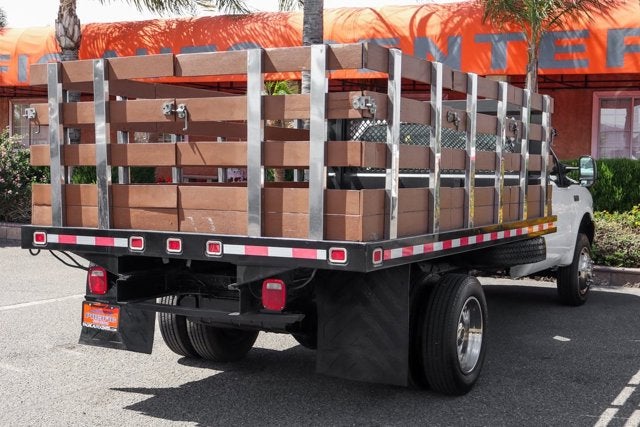

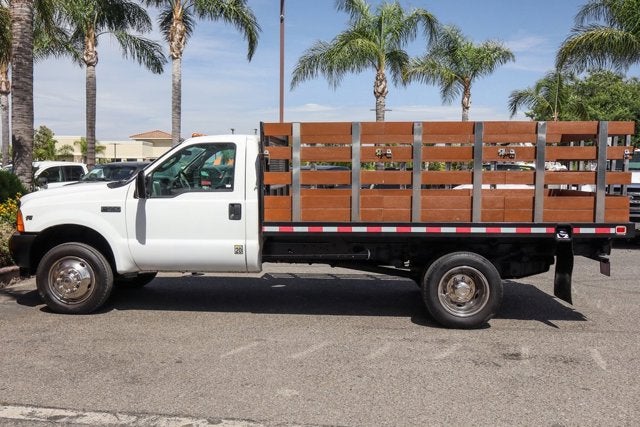

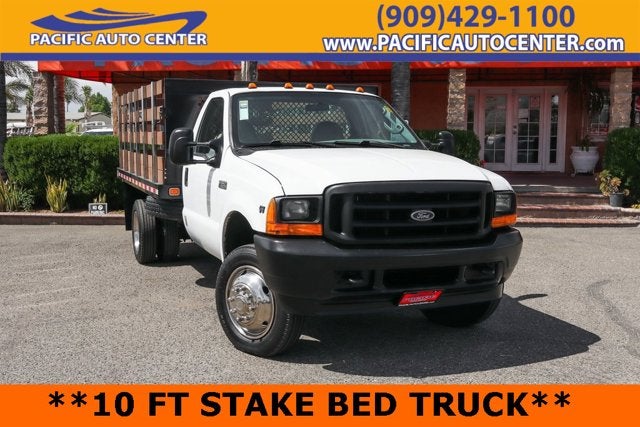

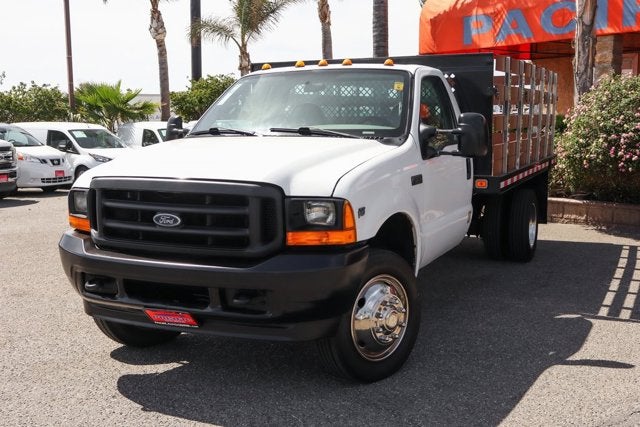

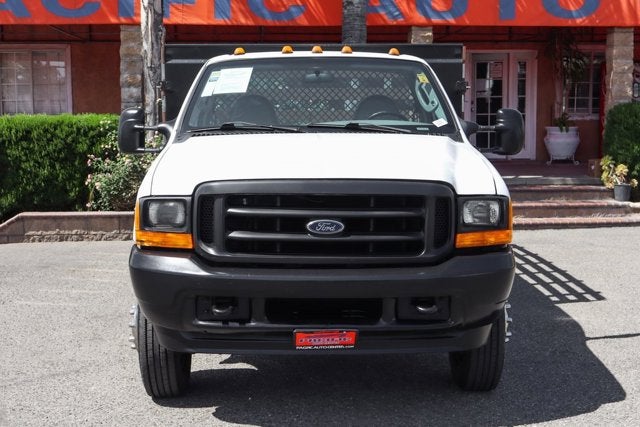

• Vehicle Name: Ford Super Duty F-550
• Body Style: Reg Cab
• Body Code: 141" WB
